Kverneland 9471 S EVO
Rake | Double rotor rake
Side delivery rakes for the flexible solution

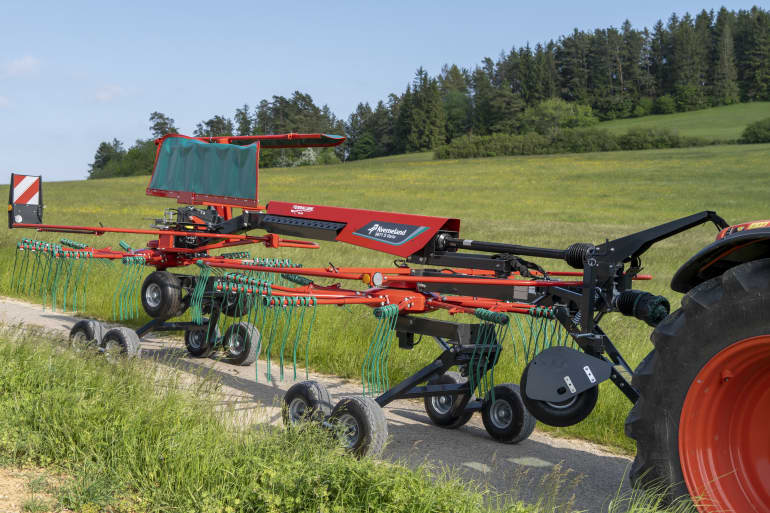

CompactLine trailed, side delivery rakes with 7.1m working width.
The advantages of this Double rotor rake
- Collect the crop into one swath from up to 12.5m
- QuickLift – drive over the swaths without damaging
- Unique feature SideSift - avoid damages on the tractor
- CompactLine gearbox with fully oil bath design
Description

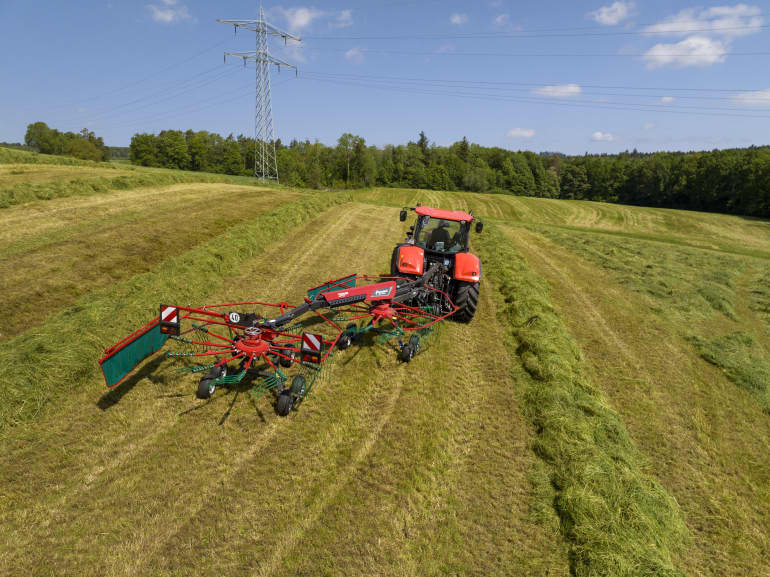

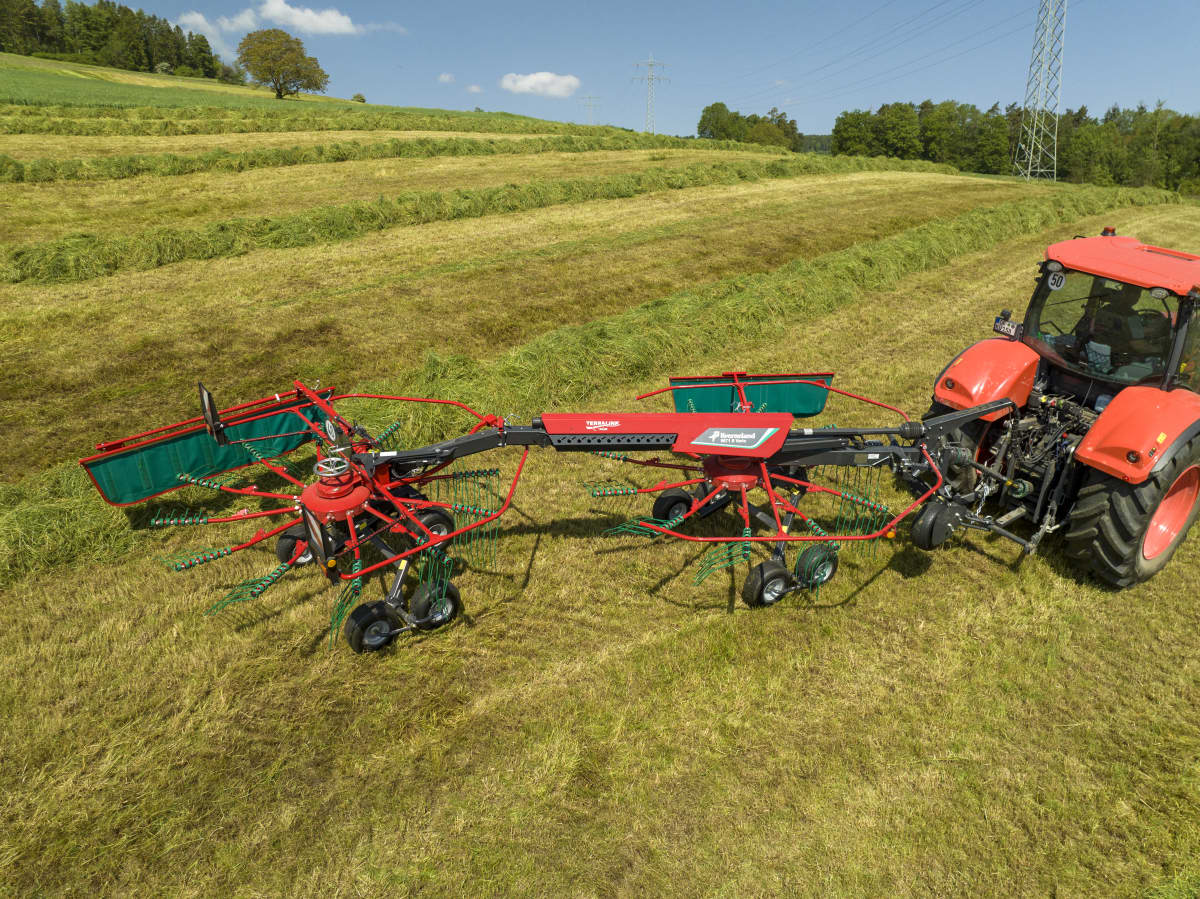

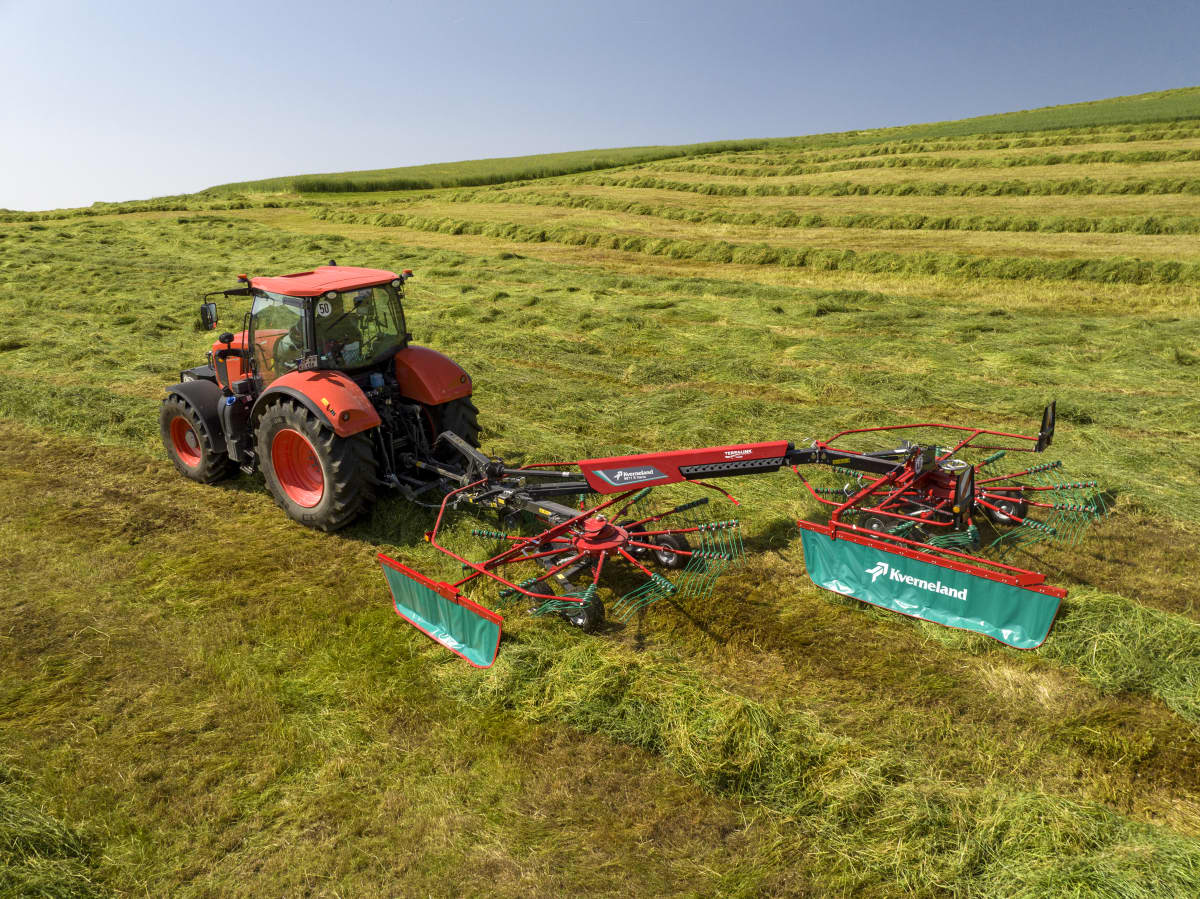

The Kverneland 9471 S Evo, with a 7.1m working width, is designed for maximum flexibility and raking in various conditions. The twin rotors work independently, making collecting either one large swath or two smaller night swaths. These rakes can place two large swaths into one, allowing a total of up to 12.5m crop to be gathered into one swath. In addition, in low volume crops, several passes could be raked into one row.
Highlights

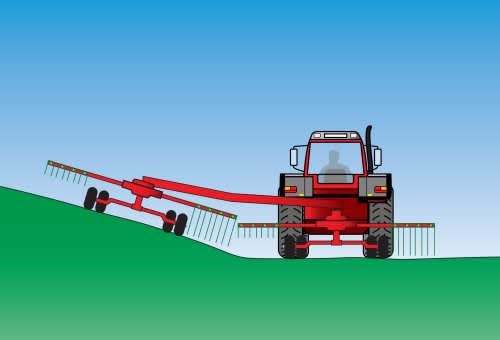

TerraLink provides perfect ground contour followings
Possible to collect the crop into one swath from up to 12.5m or place two smaller night swaths

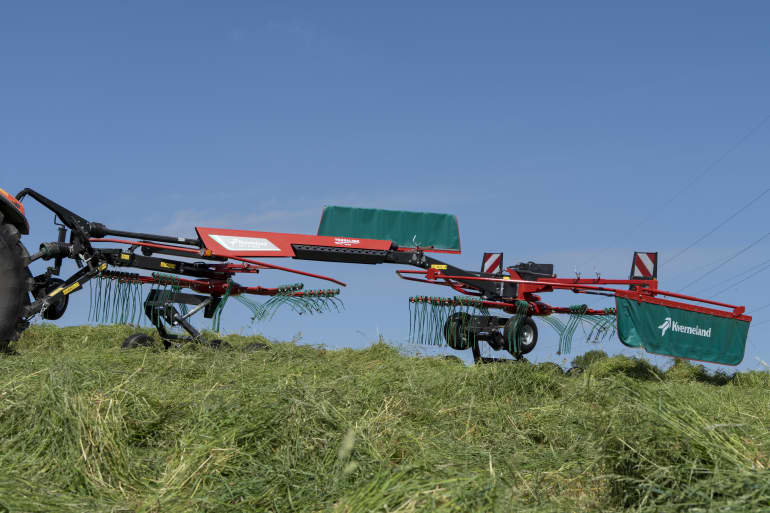

QuickLift offers fast lift at the headlands and sufficient space to drive over the swaths without damaging
Maintenance-friendly CompactLine gearbox with fully enclosed oil bath design
Features
Features

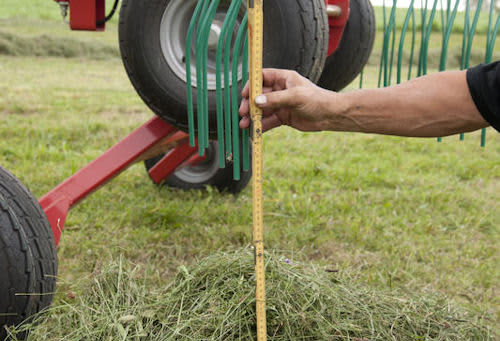

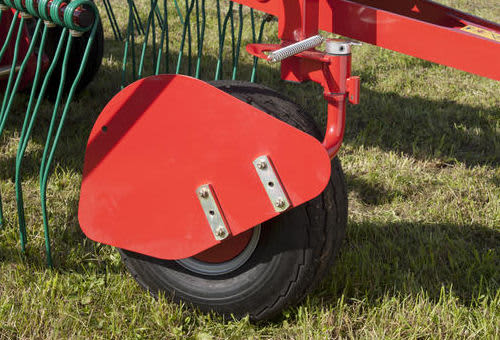

- QuickLift provides 50 cm of lift height for crossing existing swaths.
- The rotors are lifted using a single-acting valve.

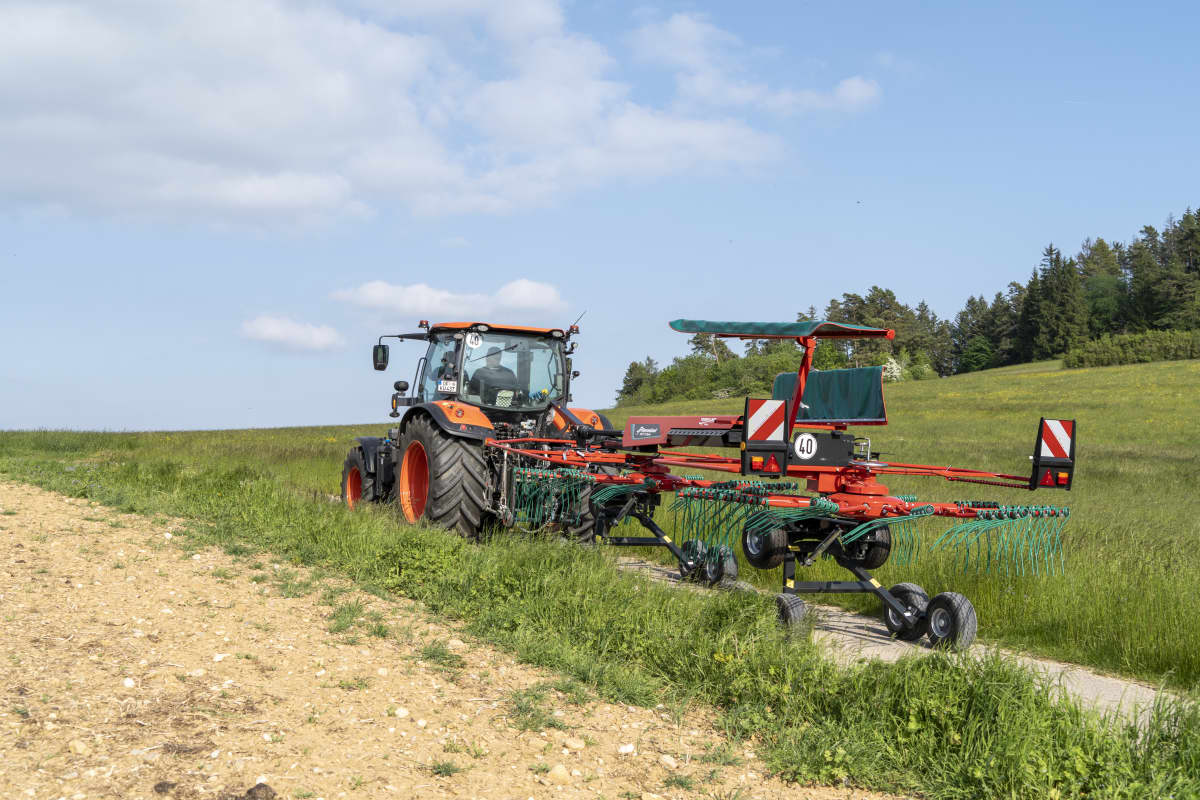

- During transport, the swath board folds automatically. Transport width is below 3.00 m, or 2.45 m with the tine arms removed.
- Completely maintenance and wear-free.
- Quiet machine running due to automatic dampening
- Wide track boogies with large wheels provide perfect ground contour following
- Trailed axle configuration enhances quiet running and reduces tractor input power
- Superb tracking in road transport

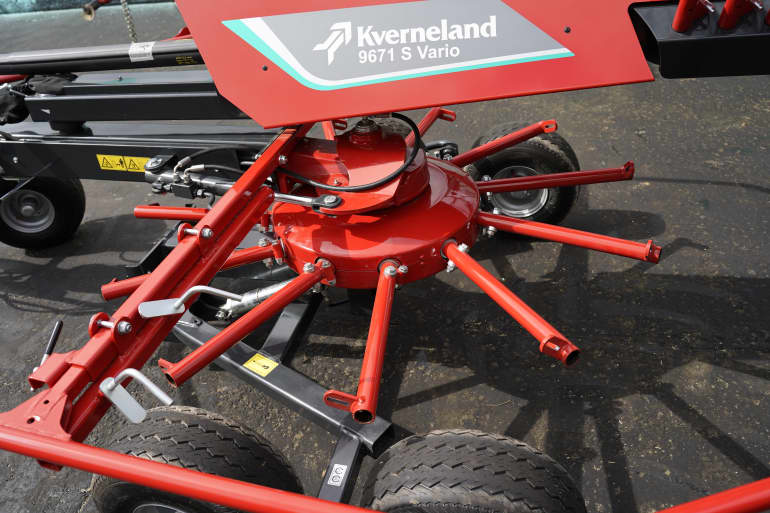

- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimal raking at any working width and on any model.

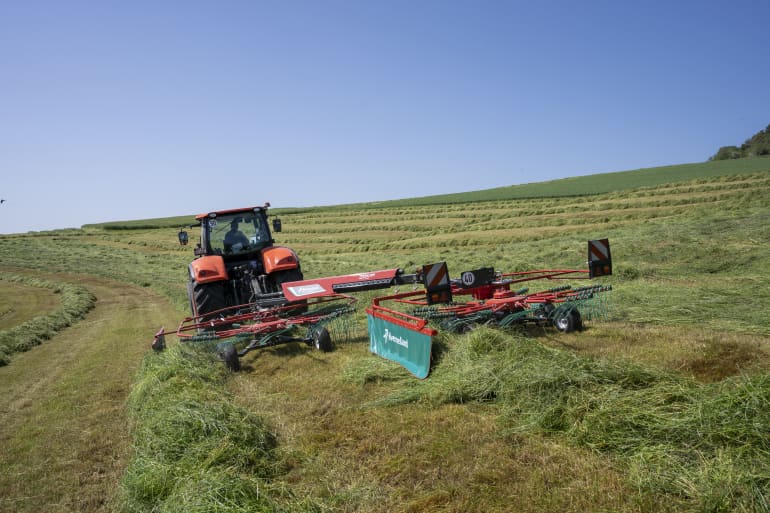

- The rake can collect one large swath or create two smaller swaths.
- Crop from a wider working area can be combined into one swath for efficient harvesting.
- Two smaller night swaths can also be created for hay crops.
- The optional patented SideShift system provides electrohydraulic control of the rake functions.
- It allows the rotors to operate offset from the tractor for safe raking along field boundaries, around trees and close to other obstacles.
- The rake can also be shifted to the left, allowing the tractor to travel over already-raked ground.
Technical specifications
Technical specifications
Download brochure| 9471 S EVO | ||
|---|---|---|
| Working Width | 6.6/7,1m | |
| Tine Arms | 11/12 | |
| Weight (kg) | 1350 | |
| Rotor diameter (m) | 2.95 |
Technical specifications
Technical specifications
Download brochureWorking Width |
No of Tine Arms |
Weight |
|
9671S Vario |
6.60/7.10m |
11/12 |
1400kg |
9471S Evo |
6.60/7.10m |
11/12 |
1350kg |
