Kverneland ROC ST 1000
Merger | Dry crop Merger
Maximum capacity with unmatched flexibility.
High‑performance continuous merger with a 10 m working width.
The advantages of this Dry crop Merger
- 10 m professional merging
- Three pick‑ups, smooth flow
- Flexible partial folding operation
- Controlled single‑belt intake
- High volume uniform swaths
Description
The Kverneland ROC ST 1000 is engineered for professional operators who demand maximum throughput combined with outstanding operational flexibility. With three pick‑up elements and a 10.0 m working width, this Kverneland merger delivers excellent ground following and a smooth, consistent crop flow, even in demanding field conditions.
The Kverneland ROC ST 1000 can operate with all three elements unfolded or with the left element folded, while the right element remains in working position. This flexible configuration allows adaptation to varying crop volumes, swath layouts and field requirements. Its robust, well‑balanced Kverneland design ensures smooth operation and consistently clean crop handling. The advanced suspension concept supports stable field performance while protecting both soil structure and forage quality. Practical options, such as wider belt strips for hard crops and manual belt control, further enhance versatility across different harvesting conditions. Despite its impressive working width, the Kverneland ROC ST 1000 folds to a compact transport width of just 3.0 m, making road transport between fields easy, safe and convenient.
Highlights
- Merging with a 10 m working width for maximum field efficiency
- Three pick‑ups ensure excellent ground following and clean crop intake
- Partly or fully foldable design for outstanding operational flexibility
- Exclusive single‑belt operation for controlled crop flow
- Low power requirement from just 100 hp
- High‑volume, well‑formed swaths for efficient harvesting
Features
Features
- Three‑belt system with three pick‑ups designed for efficient crop handling in all conditions.
- Fiberglass‑reinforced, saw‑blade‑shaped crossbars ensure optimal transport of both dry and wet crops.
- Actively driven belt with sprocket and gear‑belt drive provides reliable, continuous operation even in heavy crop volumes.
- Maintenance‑friendly construction allows most service tasks without removing the belt, with all parts disassembled using just one wrench.
- Precise adjustment of belt and pick‑up speed, with centrally adjusted belt tension ensuring balanced tension on both sides.
- Controlled pick‑up with two cams and six tine bars for precise crop intake
- Wide stripes recommended for heavy crops such as silage and maize straw
- Heavy‑duty plastic strippers maintain their shape when hitting stones and their design prevents crop loss
- Hydraulically adjustable, suspended roller transports even the shortest crops smoothly on the belt
- Easy one‑hand tine replacement, requiring only two bolts per tine/stripper
- Service‑friendly design allowing repair of bearings, cam track, and tine bars without disassembling the pick‑up
- Electric height adjustment for quick and accurate positioning
- 10 m working width, ideal not only for standard raking but also for forming new swaths in areas where the crop has already been collected
- Unique in the market: the only merger capable of operating partly or fully folded, allowing swath turning or reduced working width when crop volume requires it

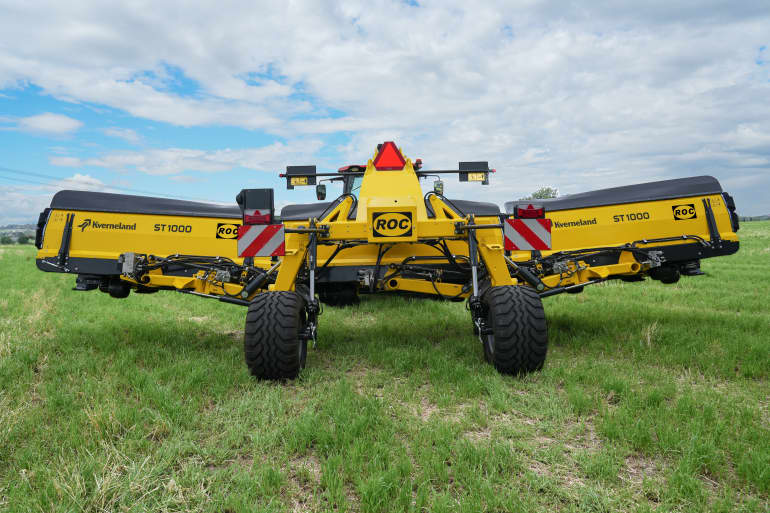

- Each pick‑up runs on four solid‑rubber tandem wheels with spring suspension, giving every machine 4 to 16 wheels for excellent ground following

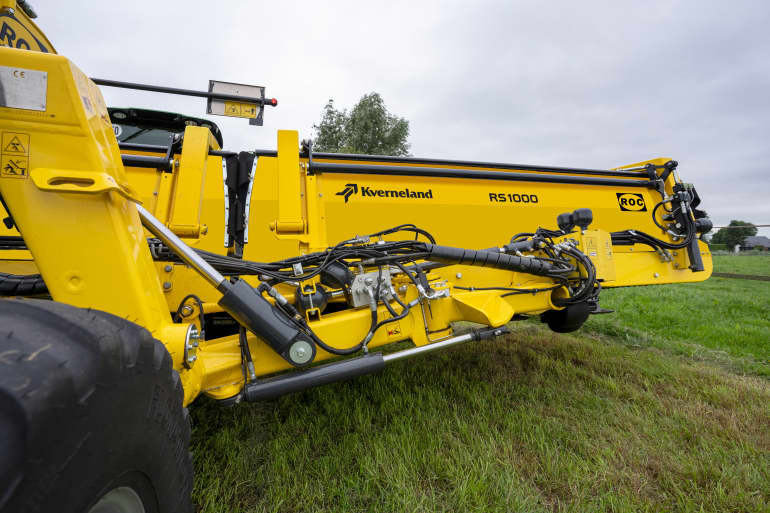

- Up to three suspension systems ensure safe, high‑speed lifting and consistently clean crop intake in all field conditions
- Standard tandem wheels with integrated spring suspension protect the ground and provide smooth, stable operation
- An easy-to-use control panel manages all essential functions
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts

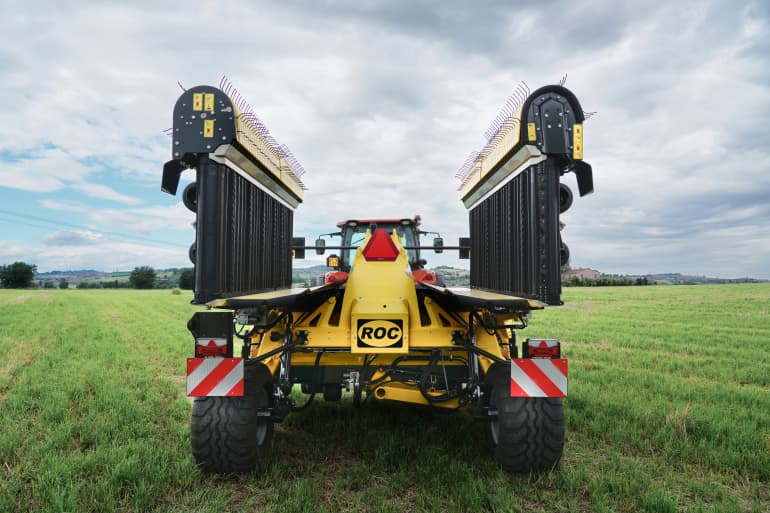

- 3.0 m transport width allows smooth travel on all public roads without restrictions

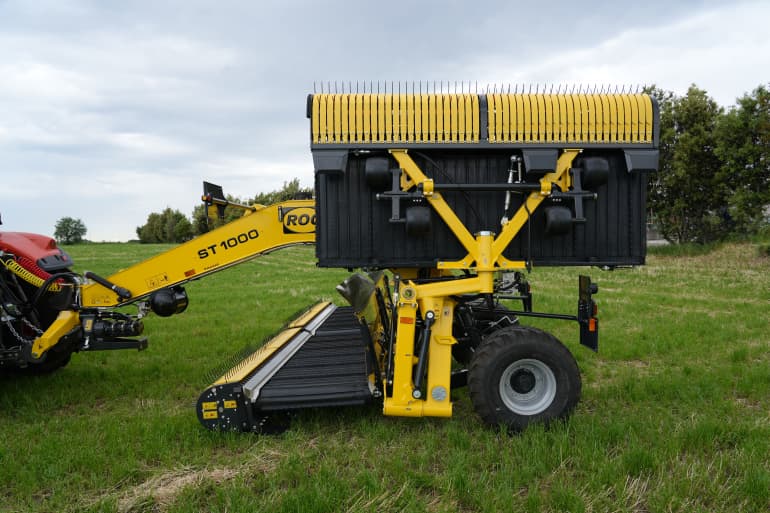

- Exclusive operating concept: the only machine on the market that can run with one belt down while the other remains in transport position
Technical specifications
Technical specifications
Download brochure| Kverneland ROC ST 1000 | ||
|---|---|---|
| Working width (m) | 10.0 | |
| Pick up width (m) | 8.9 | |
| Transport width (m) | 3.0 | |
| Belts n. | 3 | |
| Power requirement (hp) | 90 | |
| Weight (kg) | 4620 |
