Kverneland 2300
Mower | Plain mower
Compact design – reliable performance

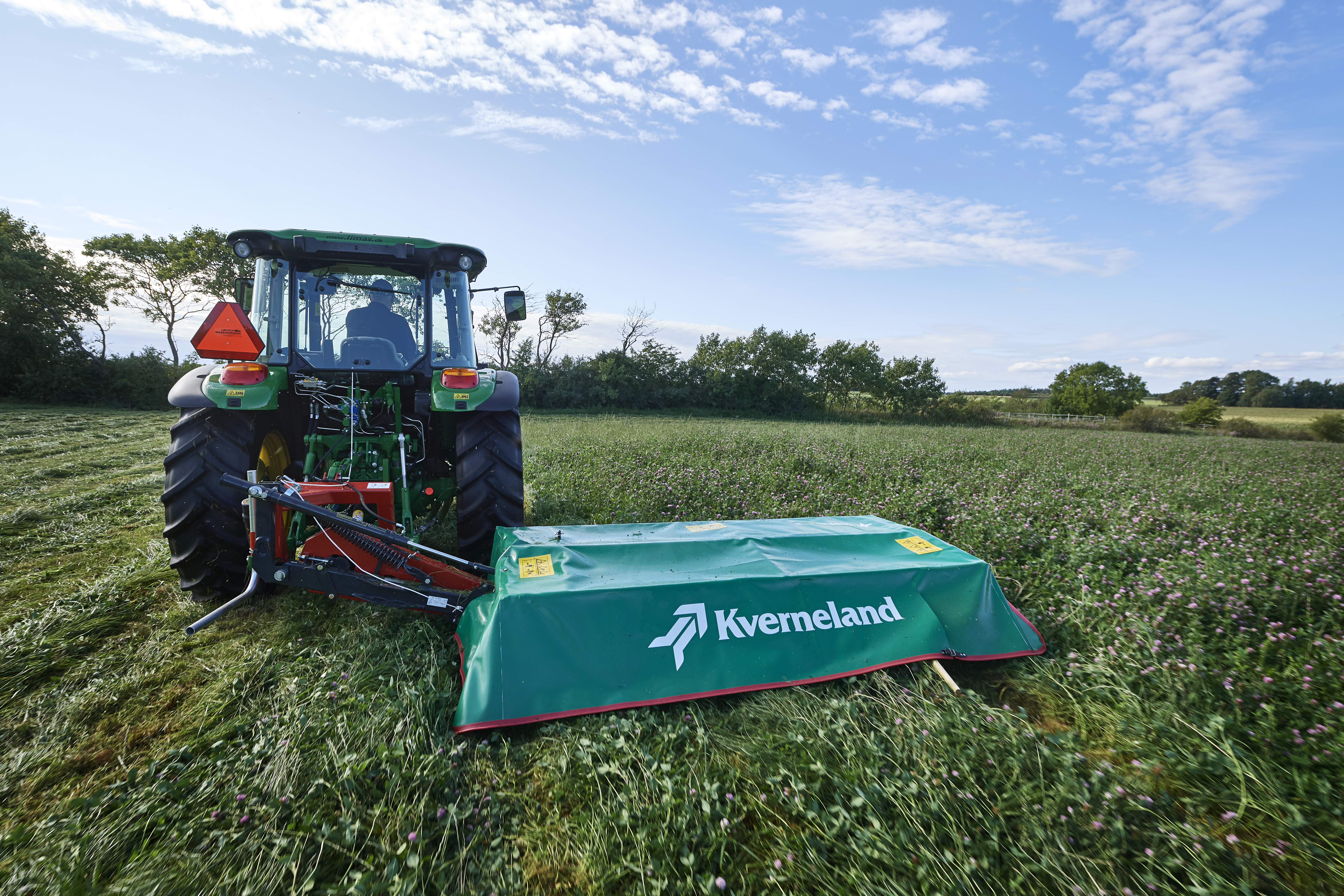

Rear mounted mowers for light, untroubled mowing
The advantages of this Plain mower
Fully welded cutterbar with round discs Flexible working angles - 15° up and 45° down Spring loaded BreakBack cutterbar protection Compact build for smaller tractors Vertical transport positionDescription

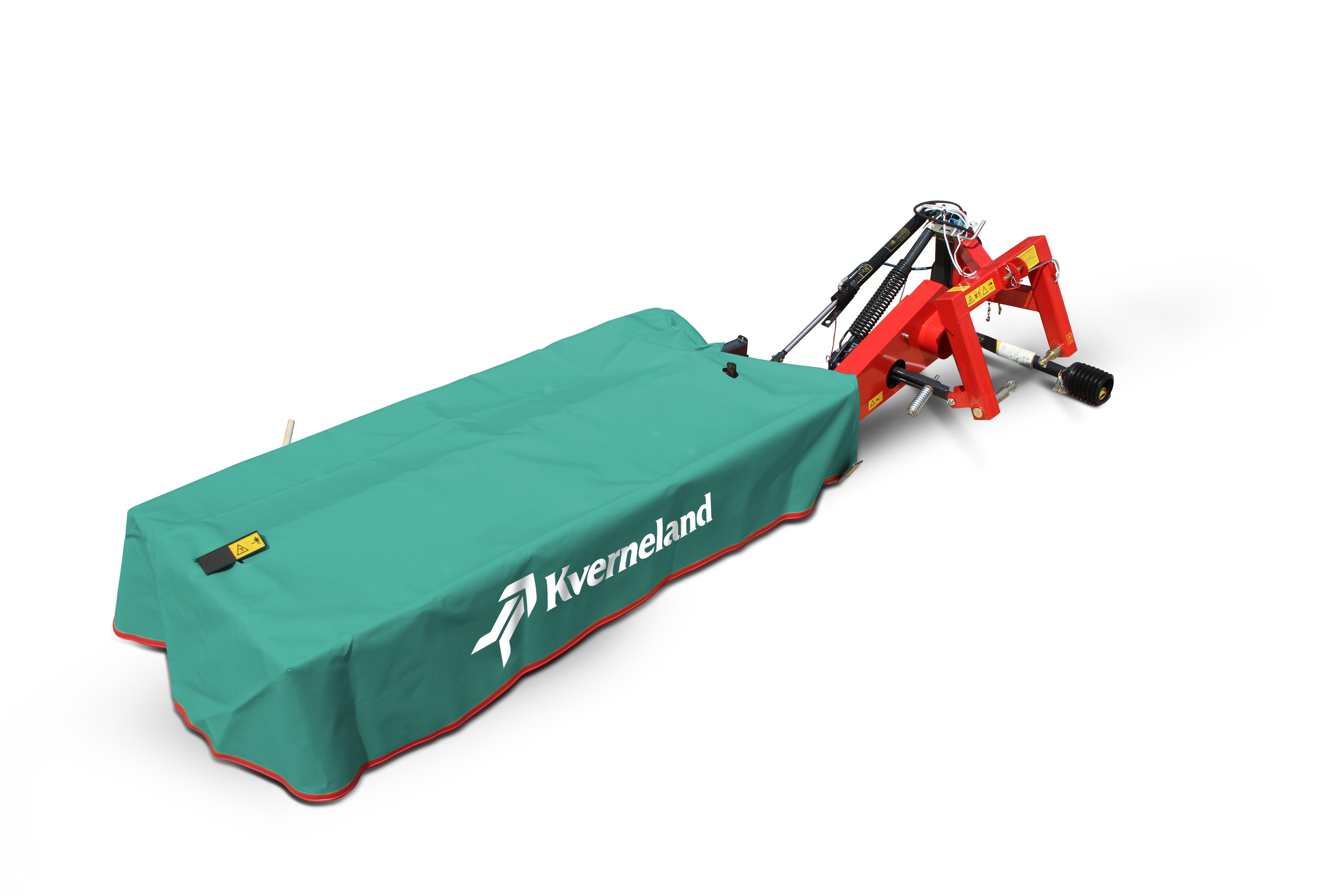

Kverneland 2300 M series is designed for smaller mowing operations. With working widths of 1.66 – 2.40m and with its lightweight design, this mower is perfect for farmers looking for a compact machine with low power requirements. The flexible suspension allows mowing at 15° upwards and 45° downwards angles respectively. For transport the mower is folded into a vertical position well behind the tractor for safe transport. If encountering an obstacle the spring loaded BreakBack system will swing the mower backwards to protect the cutterbar.
Features
- Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
- Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
- The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
- The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
- The fully welded cutterbar gives a very stiff and strong design for high durability.
- With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.
- When in transport, the mowers are folded to a vertical position well behind the tractor for safe transport.
- The centre of gravity is close to the tractor, which ensures excellent weight distribution and transport stability, even during high speed road transport.
- If encountering an obstacle the spring loaded BreakBack system will swing the mower backwards to protect the cutterbar.
- Resetting the mower to working position is simply done by revering.
- On headlands the mower is lifted without activating the three-point linkage of the tractor which needs no adjustment in the field. A clever and simple solution ensuring good clearance and eliminating swath damage.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Model | 2316 M | 2320 M | 2324 M | |
|---|---|---|---|---|
| Working width (m/ft) | 1.66(5'5") | 2.05(6'9") | 2.4(7’9”) | |
| Transport width (m) | 1.2 | 1.2 | 1.2 | |
| Linkage (CAT) | 2 | 2 | 2 | |
| PTO (rpm) | 540 | 540 | 540 | |
| Min. power req. PTO output (kW/hp) | 26 / 36 | 31 / 42 | 34 / 46 | |
| Number of discs and knives | 4/8 | 5/10 | 6/12 |
Unable to load the table
Technical specifications
Technical specifications
Download brochureWorking Width |
Weight kg |
Power Req. kW/hp |
|
2316 M |
1.66m |
395 |
26/36 |
2320 M |
2.05m |
455 |
31/42 |
2324 M |
2.40m |
470 |
34/46 |
