Kverneland ROC ST 730
Merger | Dry crop Merger
High capacity and maximum versatility in all conditions.
Universal merger with a variable working width from 6.0 to 7.2 m.
The advantages of this Dry crop Merger
- Variable width dry crop merging

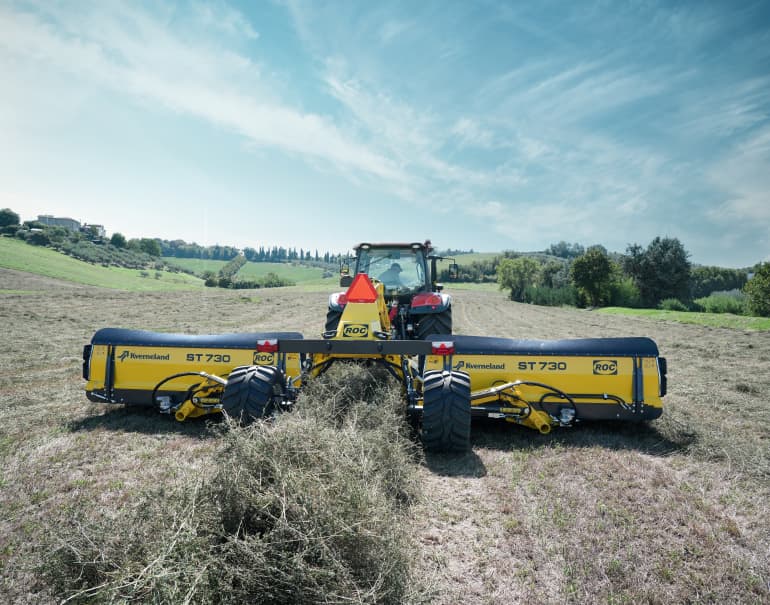

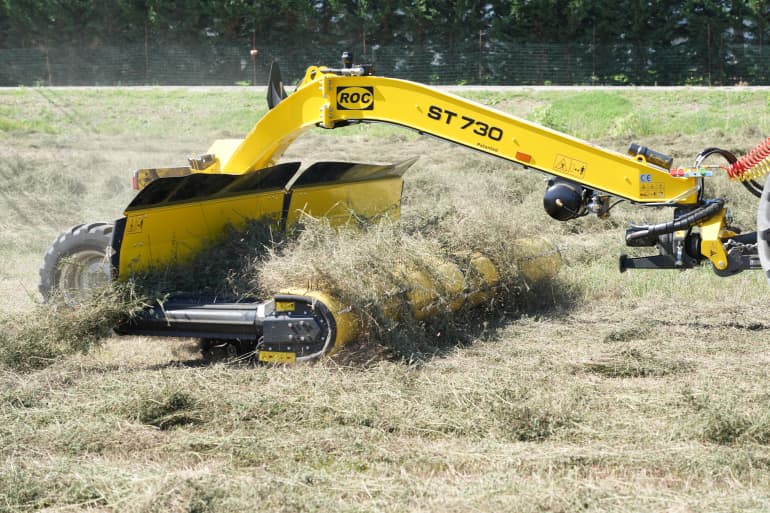

- Centre or side delivery
- Gentle six‑bar pick‑up
- Smooth, fluffy swaths
- Highly manoeuvrable transport
Description
The Kverneland ROC ST 730 is a versatile dry-crop merger designed for both center and side delivery, adapting easily to changing field conditions and varying crop volumes. Built in two sections and equipped with a hydraulic dual‑scale system, the working width can be quickly adjusted from 6.0 to 7.2 m.
During operation, the hydraulic adjustment system changes the distance between the pick-ups for precise swath placement, and multiple discharge options support central or side swath formation for efficient feeding to balers or forage harvesters. Gentle crop transfer produces clean, well-formed swaths to help maintain forage quality, and a compact 2.5 m transport width enables safe, convenient road travel between fields.
Highlights
- Variable working width from 6.0 to 7.2 m with centre or side delivery
- Six‑bar cam‑controlled pick‑up for gentle crop handling
- Front or rear mounting for maximum flexibility
- Single belt system ensures smooth crop flow and fluffy swaths
- Compact transport width of 2.5 m for excellent maneuverability
- Suspended tandem wheels for stability and sward protection
Features
Features
- Single‑belt system with two pick‑ups for efficient, continuous crop flow
- Fiberglass‑reinforced, saw‑blade‑shaped crossbars ensure optimal transport of both dry and wet crops
- Actively driven belt with sprocket and gear drive for reliable performance in heavy crop conditions
- Maintenance‑friendly design, allowing most repairs without removing the belt; all parts serviceable with one wrench
- Precise speed and tension control, with centrally adjusted belt tension for balanced, stable operation

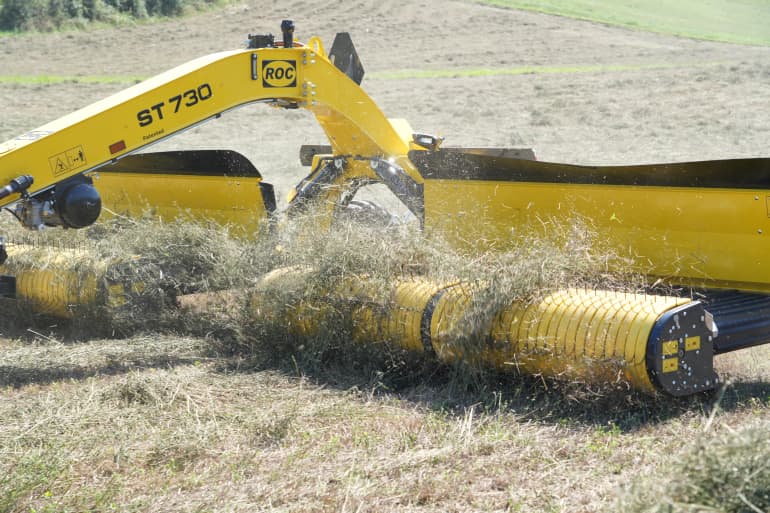

- Controlled pick‑up with dual cams and six tine bars for precise, gentle crop intake
- Hydraulically adjustable, suspended roller ensures smooth transport even of very short crops
- Durable plastic strippers maintain their shape when hitting stones and prevent crop displacement
- Fast, one‑hand tine replacement, requiring only two bolts for both tine and stripper
- Service‑friendly design allowing repair of bearings, cam track, and tine bars without removing the pick‑up
- Designed for both centre and side delivery, offering maximum flexibility in all field conditions
- Side‑delivery working width of 7.0 m, extendable up to 7.3 m for increased capacity
- Expanded pick‑ups enable multiple swath options — central swath or left/right side belts
- Belt‑based crop transport prevents roping, allowing swaths to be moved or reshaped multiple times without quality loss
- Each pick‑up runs on four solid‑rubber tandem wheels with spring suspension, giving every machine 4 to 16 wheels for excellent ground following
- Up to three suspension systems ensure safe, high‑speed lifting and consistently clean crop intake in all field conditions
- Standard tandem wheels with integrated spring suspension protect the ground and ensure smooth, stable operation
- Easy‑to‑use control panel managing all essential machine functions
- Advanced terminal features, including optional belt auto‑stop when lifting the machine for a clean swath finish
- Integrated safety system enabling basic machine operation even without electronics
- Maintenance‑friendly design, engineered for easy access and minimal downtime
- All components can be quickly disassembled for straightforward service and inspection
- Small, easily replaceable wear parts that can be changed with minimal effort

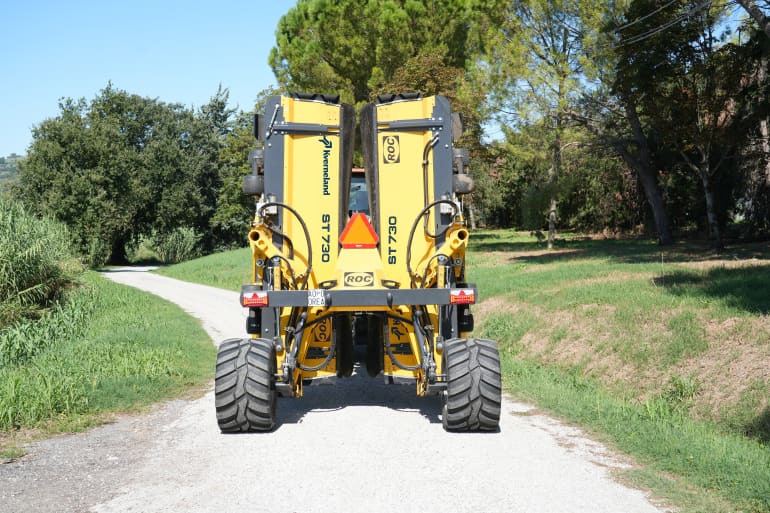

- A refined 2.5 m transport width ensures effortless travel through narrow roads and tight access routes
- No permits needed, ensuring smooth and hassle-free transportation.
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Kverneland ROC ST 730 | ||
|---|---|---|
| Working width (m) | 6-7.2 | |
| Pick up width (m) | 2 x 2.95 | |
| Transport width (m) | 2.5 | |
| Belts n. | 2 | |
| Power requirement (hp) | 70 | |
| Weight (kg) | 3120 |
