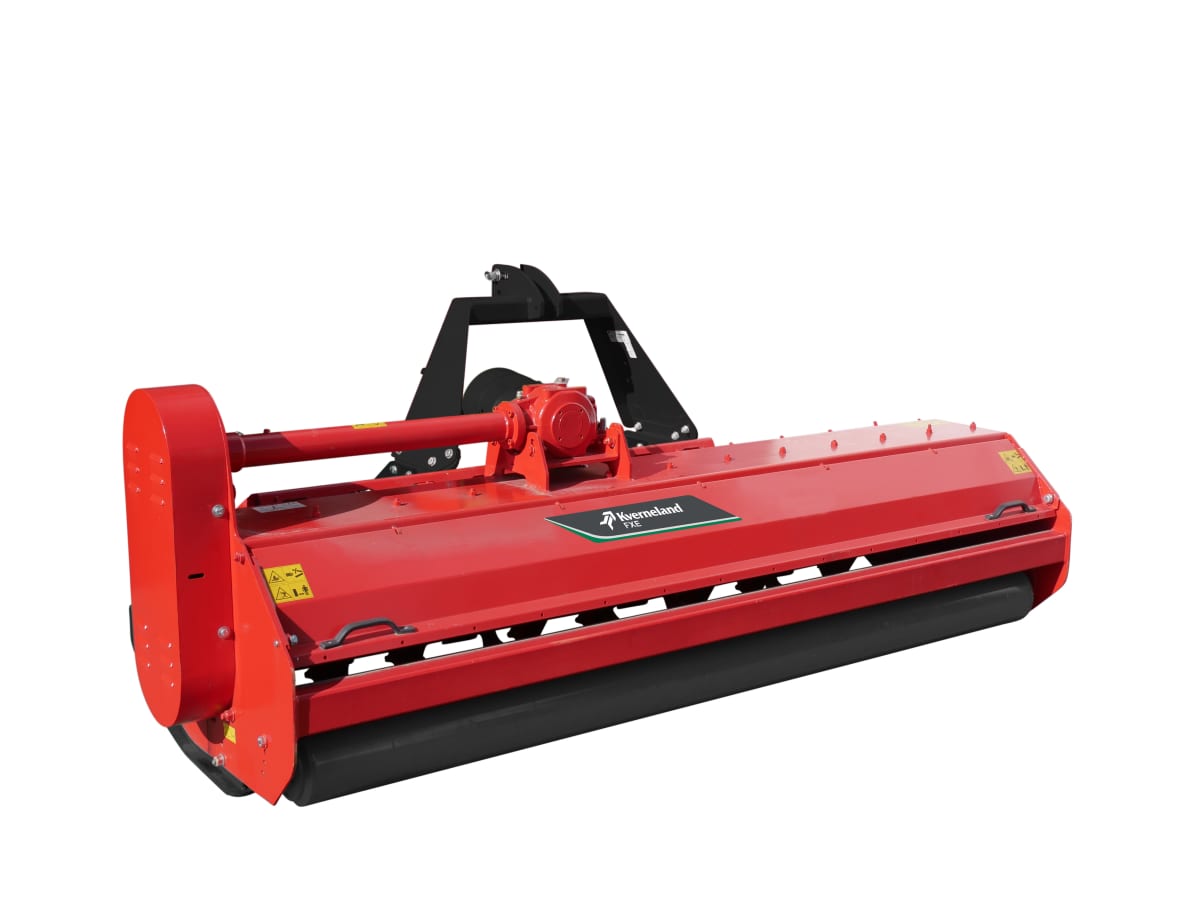

Kverneland FXE
Chopper | Flail Chopper
Excellent performance, low power and maintenance requirements.
Compact, efficient and versatile
The advantages of this Flail Chopper
- Rigid or Hydraulic frame
- PTO speed 540 or 1000rpm
- Rotor speed 1830rpm
- Lateral transmission by five belts
- Choice of blades on same rotor – openable rear cover
Description
The FXE is an agri chopper suitable for grassland renewal, maize, sunflower and sorghum shredding. The frame of the chopping unit is designed with a curved profile, while the rear cover can be opened to cope with large amounts of crop residue. In addition, the high chopping chamber guarantees blockage free performance in even the toughest conditions. The rotor of the FXE can be equipped with universal blades or hammer blades. FXE comes with lateral skids as standard and can be equipped with a rear roller or 2 pivoting wheels 155 SR13 for constant control of the cutting height.
Features
Features
- Excellent performance, as well as minimal power requirement and maintenance activities
- The machine is available in two versions: rigid frame and hydraulic offset.
- PTO tractor input at 540rpm or 1000rpm
- Central gearbox with integrated free wheel up to 130 hp
- Lateral transmission made through 5 v-belts tensioned mechanically.
- The machine is available in two versions: rigid frame and hydraulic offset.
- The rigid frame centers the machine, allowing for no sideways movement.
- Hydraulic offset allows 550mm lateral movement, making it ideal for cleaning field edges and under trees
- The machine‘s rotor hosts 68 universal or 34 hammer blades, ensuring smooth operation.
- Rotor speed reaches 1887 rpm with blade speed at 50m/s, ensuring excellent cutting quality.
- Universal Y and Hammer blades are designed to provide exceptional performance and reliability.
- Roller (195mm diameter) is suggested for irregular fields and generally dry working conditions
- 2 pivoting wheels (155 SR13) are suggested for wet conditions, giving perfect maneuverability at chopper while field operations
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| FXE | ||
|---|---|---|
| Working width (cm) | 280 | |
| Transport width (cm) | 300 | |
| No.of blades (univ /hammer) | 68/34 | |
| Weight (kg) | 940 |
Unable to load the table
Agri choppers
Technical specifications
Technical specifications
Download brochureModel |
Working width (m) |
Weight (kg) |
No. of blades (universal/hammer) |
FXE 280 |
2.80 |
940 |
68/34 |
