Kverneland iXter A

The DAT camera technology on the Kverneland sprayer range is a precision tool which supports farmers and contractors in patch spraying and with that a reduction of spray liquid.

The DAT Ecopatch recognises and categorises weeds in fields with wheat, cereals and oil seed rape. When weeds are recognised by the camera, a signal is sent to the Kverneland field sprayer and the appropriate nozzles are activated, up until a speed of 10 km/hr.

The system is built on pragmatism, relying on the agronomic principle of weeds growing in patches, which means a cost-effective solution.

Using the DAT Ecopatch on a Kverneland sprayer is easy. Just activate the system by clicking a button on the IsoMatch Tellus PRO or GO+ or any other AEF certified terminal and the combination is ready to go. Automatically, the weed will be recognised and the nozzles are turned on and off.

The data, such as as-applied data and weed heat maps will be directly available and can be used directly in combination with for example IsoMatch FarmCentre for further analysis.

With the DAT camera technology on a Kverneland sprayer savings on spray liquid up to 58%* can be reached. Additionally, the non-sprayed areas will preserve healthy crop from unnecessary treatment, which means less crop damage and another benefit is the increased capacity, as more hectares or fields can be covered with one tank of spray liquid.

Inquire today what the DAT system can do for you.

*2024 DAT trials in canola

HC 18-20-21m Vertical Folding Steel Boom

The new generation HC booms is a multi-talented spray boom range. The triangular steel construction allows high speed even in very difficult conditions. The boom is extremely strong and reliable. Using Domex steel for the boom it became stronger, but lighter to contribute to the lower weight of the machine.

HOSA 12 and 15m "Z" folding Aluminium Boom

The HOSA is a unique boom having an advanced Z-folding principle: the lateral movement enables you to quickly reduce boom width and pass obstacles in the field. The aluminium profile is designed for maximum resistance. No welding provides remarkable strength, the anodised hardened surface protects against scratches and corrosion.

• Fully Integrated Concept

It is easy to operate the iXter A sprayer with the control panel, chemical inductor, hand wash tank and clean cloth locker all on the same side of the sprayer. Nobody would expect all these functions so easily to hand. Better protection and integration is simply not possible.

• Optimal Weight Balance

The gravity point is close to the tractor for a maximum weight transfer. Still there is enough space to connect the PTO shaft and the hydraulic and electric cables.

• Control Panel

The control panel makes life easy by its intuitive operation. The controls are separated to a suction and a pressure side. The control panel is located at the left side of the sprayer.

• Easy Operation

The graduated chemical inductor with a capacity of 30 litres is mounted on a pivoting point and fully integrated in the frame. The rotating canister cleaning nozzle releases the water when pushed downwards. The circular rinsing system is no add on: it is part of the design! The sprayer can be cleaned in the field with water from the clean water tank. An outside cleaning set is optional available. Everything is also available to keep your hands clean. Easy access to fill the tank via the opening in the cover. You can wash your hands via the hand wash tap. External aspirated water is filtered first by the filter on the hose and then by the suction filter. In parallel you can already use the chemical inductor to add and premix chemicals.

• Rotating level indicator
  A rotating level indicator provides the actual tank volume.
• iXclean Basic
  ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.
• iXclean Plus
  iXclean Plus works with an electric pump which is connected to the clean water tank, the suction side and to the tank nozzles on the pressure side. The operator can start iXclean Plus from the tractor cab, directly in field, when spraying is finished and the main tank is empty or it can be started during spraying and rest liquid can be diluted in the main tank. ENFO priming and rinsing is included in the iXclean Plus functionality.

• Parking frame

A parking frame is available for easy hitching and storage of the sprayer.

• Filling

The optional 2 inch hydrant filling device allows filling under pressure at high capacity. A GEKA adapter for 1 inch filling is optional available. For external filling a 1.5 inch suction hose is optional available. If 2 inch filling is required a camlock adapter can be ordered.

• Electrical Level Indicator
  The electrical level indicator on the front tank provides actual tank volume to a spraying computer as well as via the external display on the Easy Set control panel of the iXter B mounted sprayer.

• iXclean Basic
  ENFO priming and rinsing is standard on all Kverneland spray computers. Before spraying starts the spray lines are filled with chemicals exactly up to the nozzle by automatic shut off. After finishing or interruption, crop protection agents are automatically flushed out of the spray lines with a minimum of clean water consumption. This ENFO technology optimizes filling and cleaning of the spray lines. Accurate application, no waste of products and saving water are the benefit for the environment.

• iXclean Comfort
  iXclean Comfort is a semi-automatic valve control system. The combination of an electrical level indicator and suction valve provides operator comfort and accuracy; automatic filling stops when the programmed level is reached, and remote control of all ENFO rinising and priming functions are carried out from the cab! Simple prime the spray lines before you start and rinse them afterwards.

• iXclean Pro
  iXclean Pro is an advanced solution with fully automatic, electric valve management. It means all functions can be controlled from the cab. Switching between filling, agitation, spraying, diluting, priming, rinsing and tank cleaning, is extremely easy: just push the button! In addition iXclean Pro offers also a fully automatic multi-step rinsing and cleaning program with triple dilution for the entire sprayer. Pushing one button a comprehensive cleaning process including all lines will start. It is so thorough, that residue levels after automated cleaning are below 1%.

• iXflow-E
  iXflow-E is the high pressure recirculation system with electric nozzle control. There is a free circulation of chemicals with a return of spray liquid back to the tank as spraying stops. This means there is no sedimentation in the spray lines and no dead ends for spraying or cleaning, even when the boom is in vertical position. During spraying each section gets under pressure from both ends of the spray lines, so the operator can immediately start spraying without any pressure drop. It is easy for the operator to program the number and size of sections which fits the best to their requirements and field situations.

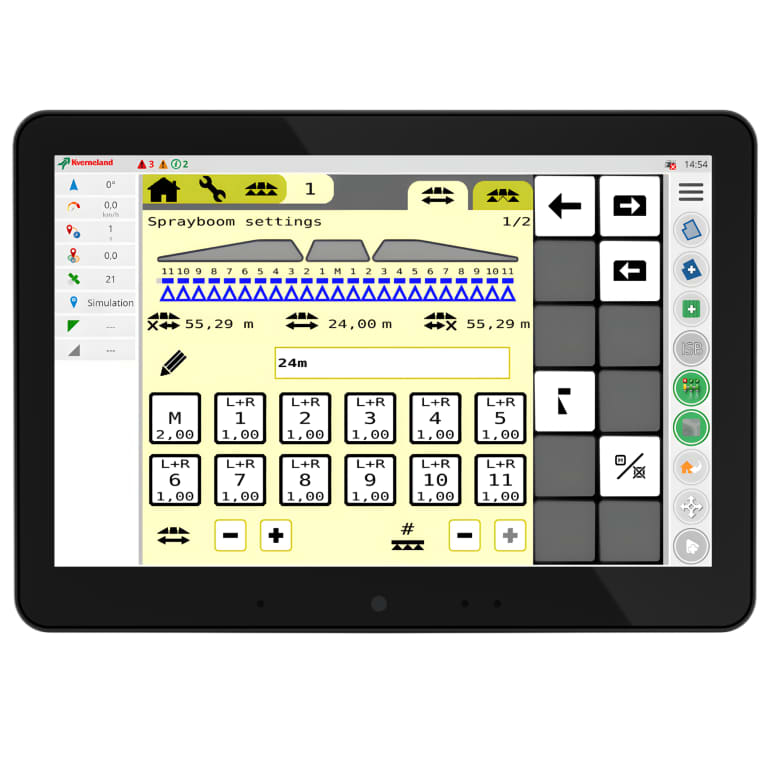

iXspray - user interface

The Kverneland mounted sprayer is 100% ISOBUS compatible as standard, which means easy plug and play with the IsoMatch Tellus GO+ or PRO or any other AEF certified terminal. The innovative iXspray hardware and software with intuitive touch interface guarantees an user friendly operation of the sprayer. iXspray is full of nice features to make the operators life easy, save time and avoid mistakes in a busy working season, for example pre-sets for spray jobs and boom configuration can be configured easily.

Only spray when it is needed
Increase the environmental protection by only spray when it is needed with the new SpotSpray application within the iXspray software on the IsoMatch Tellus terminal in combination with the Kverneland sprayer !

Optimal Crop Protection
The SpotSpray application is based on a predefined prescription map with zero application rates. These prescription maps can be made in a similar way as the Variable Rate Application (VRA) prescription maps, in combination the SpotSpray application the sprayer shuts on and off. This is done based on the predefined sections in the control terminal and can even be done with normal section valves on the sprayer. Only designated spots are sprayed, which is particularly helpful when targeting weed spots, thistles, wet areas, non-germinated areas and areas with soil problems.

Another benefit is that based on the area of the spots in the VRA map, it is easy to see exactly how much spray liquid is required in the sprayer. Capacity is also increased as more hectares or fields can be covered with one tank of spray liquid.

With a relatively small investment in the SpotSpray license on the IsoMatch Tellus terminal, the return on investment is high, due to saving time and money. With this, spot spraying becomes accessible for all famers and contractors.

With SpotSpray costs can be saved by reducing the spray liquid to be used and preserve healthy crop from unnecessary treatment. This also means less crop damage.

Automatic filling an iXter B-iXtra sprayer combination
Kverneland TwinFill is a combined filling functionality for the iXtra front tank in combination with the iXter B rear mounted sprayer.

Always the perfect concentration
TwinFill is an automatic filling program that lets the operator fill his product in one go, for both the front and rear tank, without the disadvantage of unknown mixing time. The software takes care that the spray liquid is split and transferred to the front and rear tank with the correct volume and equal concentration. After, both tanks are filled with clean water to the required level, the same concentration is reached in both tanks. TwinFill is especially beneficial for medium sized arable farmers, vegetable farmers and contractors in mixed farming areas. The operator can simply fill all of the products in one step to the total required tank volume of the two tanks together or just enter the number of hectares to be sprayed, without having to measure all of the products twice and in different amounts and fill the tanks separately! With TwinFill the operator can immediately start the spray job, because the mixture in both tanks is perfectly diluted and ready for use - and also from start to finish for the complete spray job. There is also no waste of clean water or spray liquid, because it is exactly calculated upfront how much water or spray liquid is needed.

Multi-Tank-Management
The iXter B-iXtra combination still keeps its distinctive feature to have a multi-tank usage with two different spray mixes in front and rear tank for different applications or for storage of clean water for later use or to prepare another mixture at another moment at another place.

With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

More about the Tellus PRO >

Work easy. Be in control.

Tellus GO+ is especially developed for controlling the machine in a simple way. The farmer is in full control of the machine in exactly the way he wants. Easy set up the machine with the soft keys via the 7-inch touch screen. And, optimal control while driving, just use the hard keys and rotary switch. Controlling the implement has never been so easy.

This can be you your first step into Precision Farming
IsoMatch Tellus GO+ makes it easy to control any ISOBUS machine from your tractor cab. IsoMatch GEOCONTROL enables you to achieve higher yields, lower costs and do your work with less hassle. This licence key is divided in two parts, Section Control and Variable Rate Control, which are  available from the IsoMatch Shop. Now you can buy the specific functionality that you need.

More about IsoMatch Tellus GO+ >

With manual guidance you are perfectly on track.

The IsoMatch InLine is a light bar which allows easy manual guidance. It is the perfect assistant to get you as close as possible to your desired A-B line. Mounted in the line of sight, you can easily see the distance from the A-B line and to which direction you should steer for the ideal position. The display of the IsoMatch InLine also displays the status of the machine sections, which adds more comfort of use. The LEDs can be dimmed for night operation.

SMART
Distance to A-B line with LED indication and a numeric display

EFFICIENT
Manual guidance in combination with IsoMatch GEOCONTROL

EASY
Displays status of machine sections

More about IsoMatch InLine >

The essential accessory for IsoMatch GEOCONTROL.

The IsoMatch Global 3 is the GPS antenna, with DGPS accuracy, in the IsoMatch product range. It enables satellite navigation for site-specific section control, variable rate application, manual guidance and field registration.

SMART
Allows manual guidance, automatic section control and variable rate in combination with IsoMatch GEOCONTROL

EFFICIENT
DGPS accuracy without additional subscription fees

EASY
Easy to fit with mounting brackets included

More about IsoMatch Global 3 >

IsoMatch GEOCONTROL is an additional software application within the IsoMatch Tellus and IsoMatch Tellus GO+ that helps you to control all ISOBUS compatible Kverneland Group machines such as sprayers, spreaders and seeders! Combined with a GPS receiver it fulfils the future needs in terms of easy, smart and efficient farming.

• Section control: Automatic switching on and off implement sections on headlands, boundaries and already covered areas to minimise overlap.
• Variable rate control: Automatically adjusts the implement application rate based on input from the field prescription.
• Documentation: Saves all operational job data and field maps for exchange via USB to farm management information systems.
• Manual guidance: Advised driving position using guidance lines in the field and on headlands. Smart boundary recording: independent from the working width, even without any implement corrected. Boundary shrinking: create new inner boundaries by setting the desired width of the headland. Manual guidance for all operations, includes non-electric or non-ISOBUS implements.

IsoMatch GEOCONTROL - The Advantages

• Easy and comfort of operation, due to not having to manually switch on or off sections or change the application rate. You can focus 100% on driving in the field.
• More efficient work and avoiding overlap leads to cost savings of 5-10% on spraying liquid. Better growing conditions and increased yield.
• With IsoMatch GEOCONTROL, working at night becomes very easy. IsoMatch GEOCONTROL reduces the workload considerably.

For further information regarding our iM FARMING concept go to https://ien.kverneland.com/iM-FARMING

The IsoMatch Grip is an ISOBUS auxiliary device developed for great operator comfort and efficient machine control. Its ergonomic shape and the complete freedom of assigning and controlling a total of 44 implement functions from one device are unique in the market today. From your fingertips you have endless possibilities to operate all machine functions as desired. And assignments are saved per machine making it even more applicable to your needs.

More about IsoMatch Grip >

Connect to a local wireless network on your IsoMatch Tellus.

IsoMatch Wireless (USB-stick) is complementary to the IsoMatch Tellus and makes it easy to connect to a local wireless network, such as your phone’s hot-spot, home network etc.
No additional costs of an internet service provider. When connected via the IsoMatch Wireless you can browse the internet, view the weather, Gmail, Google, etc.

The IsoMatch Eye is the camera option in the IsoMatch product range.

IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus GO+ and IsoMatch Tellus PRO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.

SMART
Changeable from rear view to standard view

EFFICIENT
Full control and overview of entire machine operation

EASY
Night vision by integrated LED’s

More about IsoMatch Eye >
