Kverneland 5087-5095

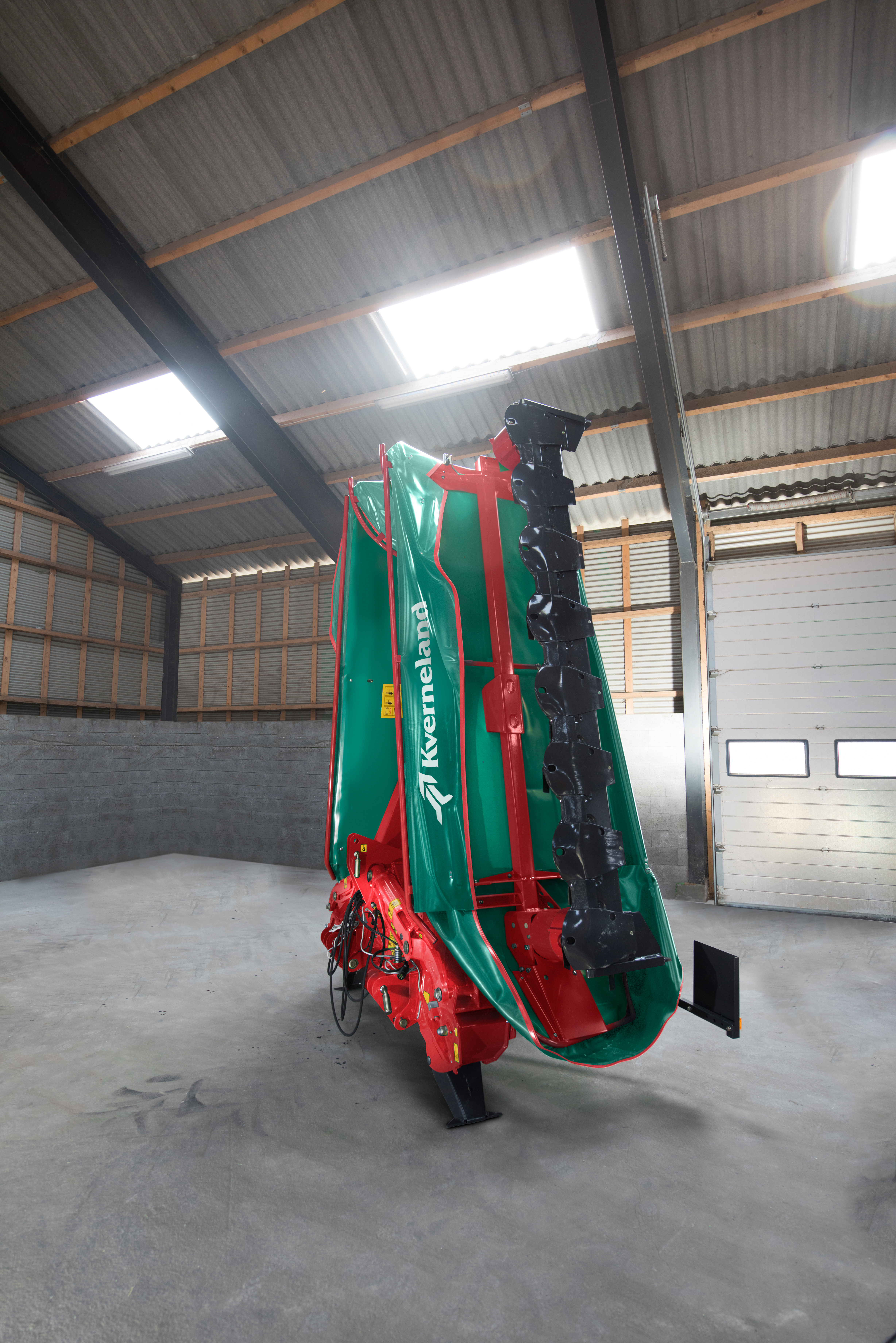

With the new parking device, storage of the Kverneland 5087 M - 5095 M mower is easy and convenient, requiring minimum space during winter storage. The Kverneland 5087 M - 5095 M are firmly parked on a strong and stable parking foot, bringing the total height below 4m.

• Kverneland uses round discs. Round discs are less susceptible to stone impact, and reduce shock loads in the transmission.
• Stones are expelled immediately, before they have any chance of becoming jammed. The benefits are lower repair and maintenance costs - at the same time as a clean and aggressive cut.
• The cutterbar has a high oil capacity, ensuring a very low working temperature. This ensures an efficient oil cooling and lubrication of the entire cutterbar.
• The long curved gear wheels running in oil provides a very quiet and reliable power transmission.
• The fully welded cutterbar gives a very stiff and strong design for high durability.

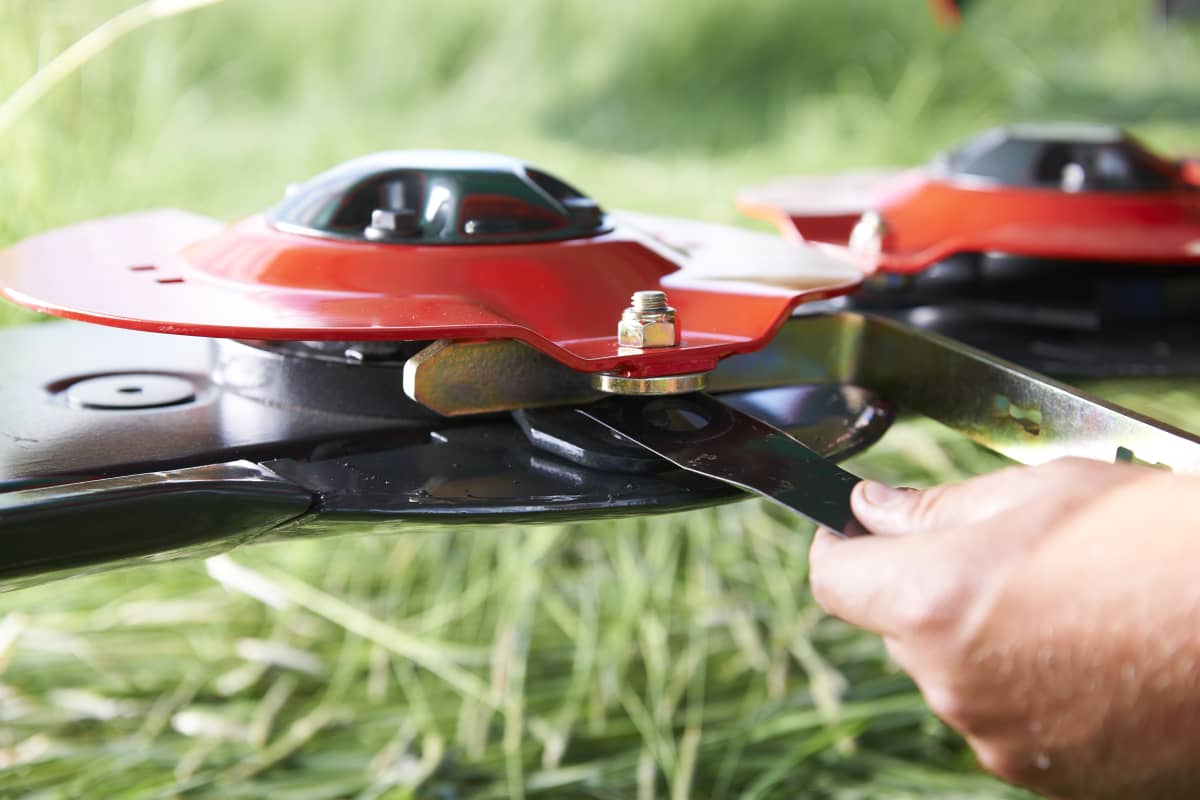

• With the ProFit quick knife change system, maintenance of the cutting ability is easy. The knives are changed by one simple operation using the special lever.

• 5087 M mower can be adjusted for optimal operation according to different circumstances, such as field contours or working width of the front mounted mower.
• To ensure optimal overlap between front and rear units, the Kverneland mowing units can be mounted in two positions on the suspension arm.
• This also gives you an option of wider overlap in hilly conditions, lessening the need for SideShift equipment.

• The  Kverneland 5087 M and 5095 M mowers are an eco-friendly, energy saving solution able to work on tractors with as little as 120 hp.
• The low weight of only 1360-1500kg, together with the ideal weight distribution that butterfly combinations offer, give the optimum combination of low power requirements, low weight and high efficiency.

• The mowing units are centre suspended offering an even weight distribution across the complete mower width.
• Faster and more precise adaptation to ground contours is also achieved due to the centre suspended design.
• The benefit is less skid wear and optimum protection of the stubble.
• When turning on headlands the hydraulic cylinder, which is also used when going into transport position, ensures ample clearance to the swath, so they remain undamaged.

• The highly responsive kinematics incorporated into the headstock design will intervene to protect the mower when encountering even the smallest obstacles during operation.
• To offer maximum protection and lessen the shock loads on the complete machine, the cutterbar will move backwards and up, letting any obstacle pass without risk of damage.
