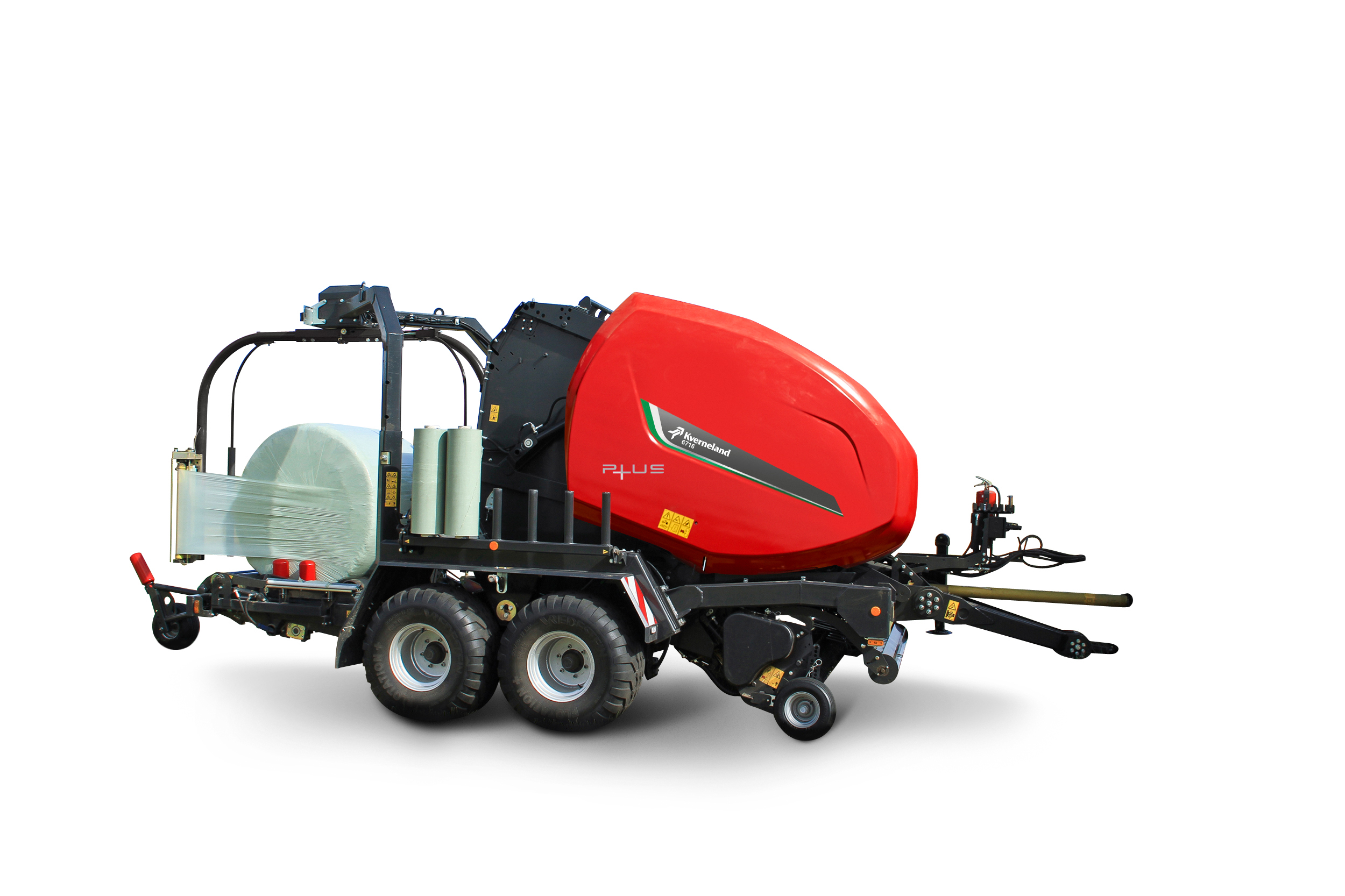

Kverneland 6716 FW Plus

• Setting and selection of correct bale density is vital in order to get the right quality of the bale. Especially when the baler is utilized through the full season in different crops like straw, hay and silage it is important to adjust the bale density to the specific type of material.
• Intelligent Density 3D with 3 pre-selected bale density settings making it very easy to choose the correct bale density in different crops.
• It is however still possible to customize the bale density in 3 separate zones each with a choice of diameter and pressure to match specific requests.
• With the new Intelligent Density 3D application, three pre-configured bale densities are available from the menu of the control box, each of them tailored for straw, hay or silage. This makes the change-over from different crop materials much easier limiting the risk of mistakes.
• Baling dry straw and want the heaviest bales possible?  Maximum pressure is set in every zone.
• Baling hay? The soft centre core is set to let the bale breath, with gradually increasing pressure towards the outer layer.
• Baling wet silage? Pressure is reduced in the centre and mid zones.

• Once the net is applied to the bale the wrapping table is transferred to the tailgate of the baler unit, ready to receive the finished bale.
• When the tailgate opens the bale is dropped directly onto the wrapping table, with no interfering steps in-between that needs to guide the bale onto the wrapping table.
• This provides a very safe bale transfer with no risk of the bale rolling off the wrapping table, even when working in very hilly conditions.
• When the bale is onto the wrapping table it is transferred quickly to the satellite wrapper, and wrapping starts instantly.

• The wrapping table with 4 endless belts and rollers carries and rotates the bale evenly during wrapping with no risk of film damage.
• The twin pre-stretchers ensure high speed wrapping, so the wrapping process will finish on time before the new bale is ready.
• The pre-stretchers are positioned close to the bale, to limit the amount of air trapped under the film during wrapping.
• Once the bale is wrapped, it can be unloading automatically or manually during formation of the next bale. The manual option gives the driver the possibility to drop the bale where most suitable, for instance so bale are all dropped in line for each pick-up.
• The low mounted wrapping table ensures gentle unloading of the bales. In addition the Kverneland FlexiWrap can be fitted with a bale on end kit. The bale is tipped off gently on the end side, where the highest number of film layers is applied.

• 2.2m pick-up with small diameter pick-up reel for fast and efficient throughput.
• Pick-up with 5 rows of tines
• Twin cam tracks.
• Tine bars with two central supports.
• Small diameter pick-up design.
• Roller crop press is standard.
• Narrow transport width – no need to remove the pick-up wheels for transport.

PowerFeed Rotor Intake

• Truly impressive intake capacity can be achieved with the PowerFeed rotor intake system - handling all crop types with ease, whatever the conditions.
• The PowerFeed rotor with its 13 rotor fingers proactively forces the material into the bale chamber for higher intake speed and capacity proving instant bale start

Single or Dual Fork Feeder

• The fork feeder versions are fitted with a cost efficient fork feeder intake system. This system provides direct feed into the bale chamber, and the wide opening allows almost unrestricted intake capacity for fast and efficient bale start.
• In addition the fork feeder gives less vibration and reduced power consumption.
• The fork feeder is provided with a crop press above the pick-up that ensures a regular crop flow even from large bulky swaths.
• Dual fork feeder with double feed tines ensures even higher capacity, while still safeguarding fragile crop types.

Parallelogram Drop Floor system for easy unblocking

• Parallelogram Drop Floor enables the operator to clear blockages easily from the tractor cab without any crop loss.
• Drop the floor to free the rotor of blockage, engage the PTO to feed the blockage through and close the floor to continue baling

• The FlexiWrap baler wrapper combination is firmly mounted onto a strong and durable chassis.
• Load and weight are evenly distributed for maximum stability, for instance thanks to the low position of the wrapping table.
• The tandem axle with 560/45-R22.5 tyres (optional 710/35-R22.5) provides very good stability when operating in the field or running on the road.

With its advanced hardware and software features, the IsoMatch Tellus PRO provides the optimal precision farming solution for an all-in-one control system inside your tractor cab.

IsoMatch Tellus PRO is the centre for connecting all ISOBUS machines and a platform for running precision farming applications. It offers everything a farmer needs to get the maximum out of his machines and crops, as well as cost savings in fertiliser, chemicals and seeds by using automatic section control and variable rate control. With the unique dual screen functionality it gives the farmer the opportunity to view and control two machines and processes simultaneously.

More about the Tellus PRO >

Work easy. Be in control.

IsoMatch Tellus GO+ is especially developed for controlling the machine in a simple way. The farmer is in full control of the machine in exactly the way he wants. Easy set up the machine with the soft keys via the 7-inch touch screen. And, optimal control while driving, just use the hard keys and rotary switch. Controlling the implement has never been so easy.

This can be you your first step into Precision Farming
IsoMatch Tellus GO+ makes it easy to control any ISOBUS machine from your tractor cab. IsoMatch GEOCONTROL enables you to achieve higher yields, lower costs and do your work with less hassle. This licence key is divided in two parts, Section Control and Variable Rate Control, which are available from the IsoMatch Shop. Now you can buy the specific functionality that you need.

More about IsoMatch Tellus GO+ >

The IsoMatch Eye is the camera option in the IsoMatch product range.

IsoMatch Eye is a camera that has been developed for use with our sophisticated IsoMatch Tellus GO+ and IsoMatch Tellus PRO dual screen terminal. The IsoMatch Eye is switchable from rear view to standard view.
It gives you full control and overview of entire machine operation during day and night, because of its night vision by integrated LED’s. This increases the safety e.g. when reversing the machine or manoeuvring around obstructions.

SMART
Changeable from rear view to standard view

EFFICIENT
Full control and overview of entire machine operation

EASY
Night vision by integrated LED’s

More about IsoMatch Eye >
