Kverneland ROC ST 380
Merger | Dry crop Merger
Compact design with clean swath formation.
Compact front or rear‑mounted merger with a 3.8 m working width.
The advantages of this Dry crop Merger
- Compact dry crop merging
- Clean, gentle swath formation
- Front or rear mounting
- Reliable single‑belt flow
- Stable, easy transport
Description
The Kverneland ROC ST 380 is designed for efficient, gentle forage, delivering clean, well‑formed swaths. Its compact design and flexible mounting options make it a practical solution for a wide range of harvesting conditions, helping to preserve forage quality from the field to the baler or forage harvester.
The machine can be operated front‑mounted on the tractor or rear‑mounted with reverse drive, offering flexibility to suit different working preferences and tractor configurations. The hydraulically driven pick‑up and conveyor belt ensure reliable operation with minimal adjustment. Swaths can be discharged to the left or right, allowing easy adaptation to field layout and harvesting strategy. For road transport, the Kverneland ROC ST 380 features a compact transport configuration, enabling safe and convenient movement between fields.
Highlights

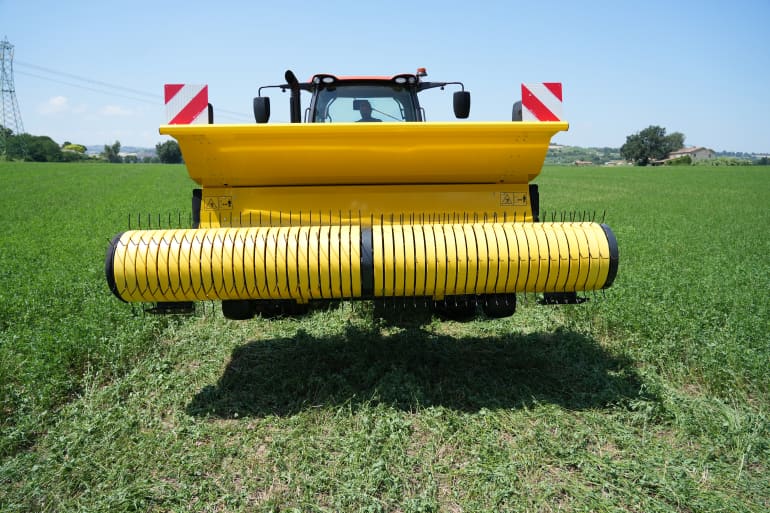

- Six‑bar pick‑up ensures clean and reliable crop lifting
- Front or rear three‑point linkage provides versatile operation
- Single belt system delivers smooth crop flow and fluffy swaths
- Gentle crop handling helps maintain forage quality
- Tandem wheel layout ensures stable ground following
- Compact machine design supports easy handling and operation
Features
Features
- A single belt system with three pick-ups
- Fibreglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Perfect raking solution positioned in front of the wheels; rear mounting also possible for reverse‑drive operation
- Effortless manoeuvring in corners, tight spaces, and small fields
- Ideal pairing with small square balers or round balers
- Excellent for turning existing swaths, such as straw left after the combine
- Controlled pick‑up with two cams and six tine bars
- Heavy‑duty plastic strippers maintain their shape when hitting rocks and prevent crop loss
- Bearings, cam tracks, and tine bars can be repaired without disassembling the pick‑up
- Hydraulically adjustable, suspended roller ensures smooth transport even with very short crops
- Fast tine replacement with only two bolts—easy one‑hand operation
- Each pick‑up runs on four solid‑rubber tandem wheels with spring suspension, giving every machine between 4 and 16 wheels for excellent ground following
- Up to three suspension systems ensure safe, high‑speed lifting and consistently clean crop intake in all field conditions
- Standard tandem wheels with spring suspension provide strong ground protection and smooth operation
- Designed for maintenance‑friendly operation, ensuring quick access and easy daily upkeep
- All components are easily disassembled, simplifying service and inspection
- Small, replaceable wear parts that can be changed with minimal effort and reduced downtime
Technical specifications
Technical specifications
Download brochure| Kverneland ROC ST 380 | ||
|---|---|---|
| Working width (m) | 3.8 | |
| Pick up width (m) | 2.95 | |
| Transport width (m) | 3.0 | |
| Belts n. | 1 | |
| Power requirement (hp) | 60 | |
| Weight (kg) | 940 |
