Kverneland 9671 S EVO
Rake | Double rotor rake
Side delivery rakes for a flexible solution
CompactLine trailed side delivery rakes with a 7.1m working width.
The advantages of this Double rotor rake
- TerraLink Plus can collect crops into a single swath up to 12.5 meters wide
- QuickLift – drive over the swaths without any damage
- CompactLine gearbox with fully oil bath design
- Multiple functions can be easily managed from the cabin
Description

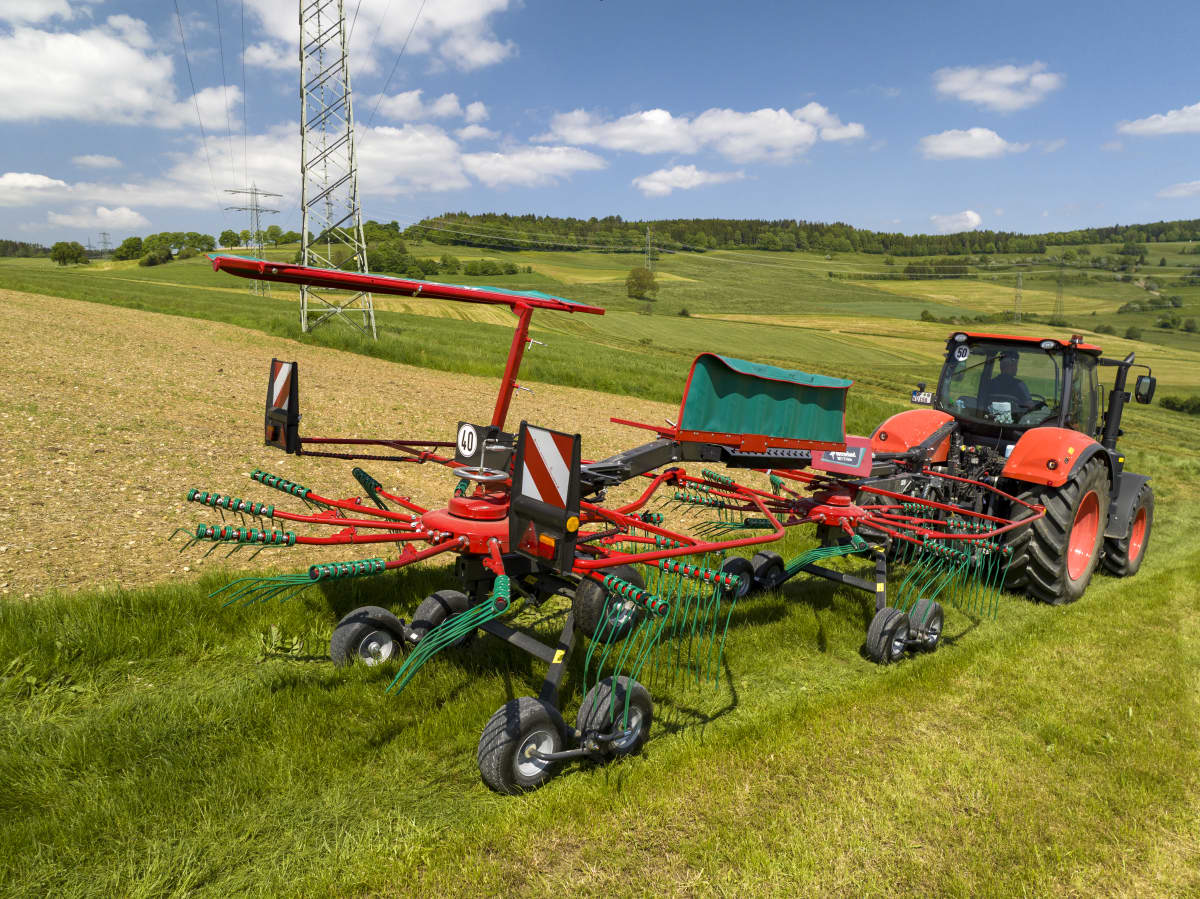

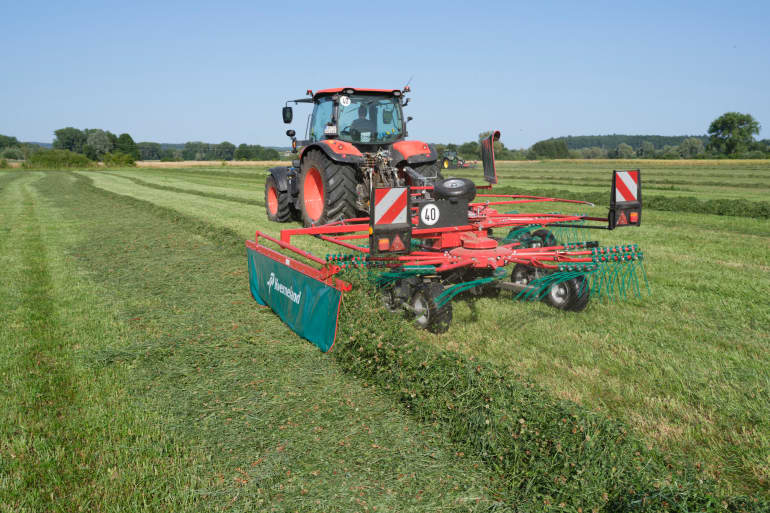

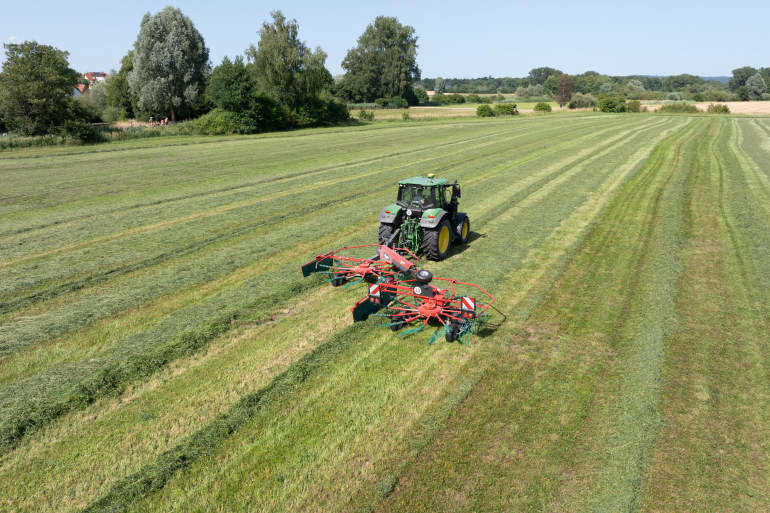

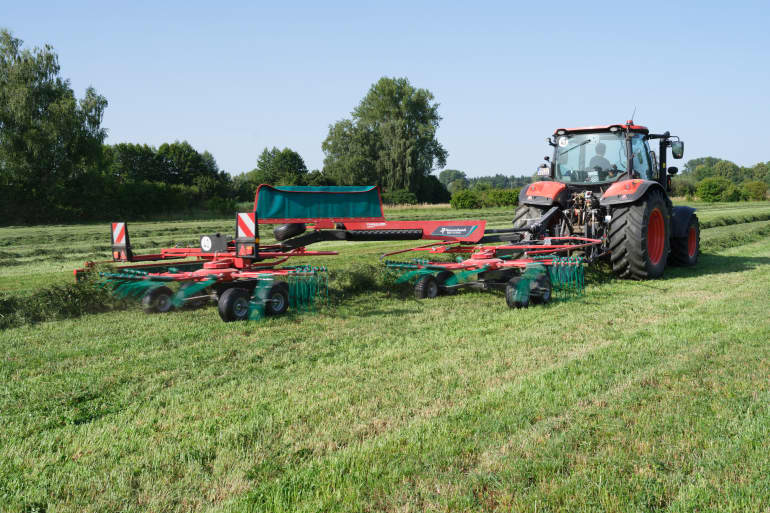

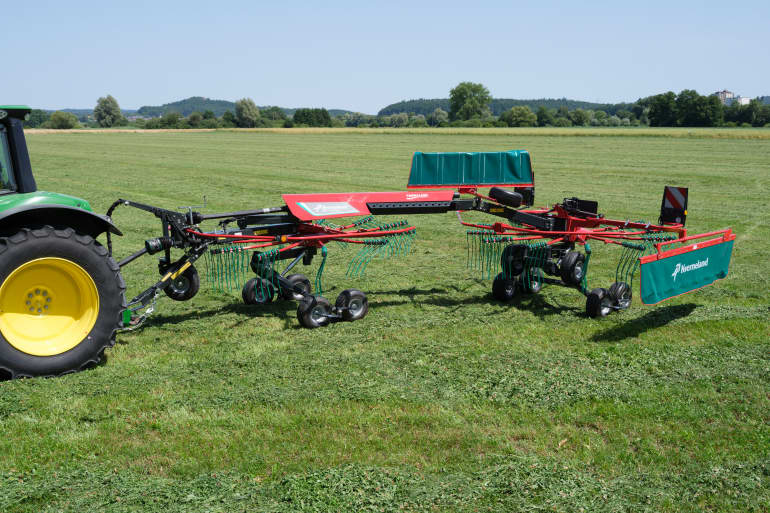

The Kverneland 9671T S Evo is engineered to deliver exceptional flexibility and performance in various raking conditions. With a working width of 7.1 meters, this advanced rake features twin rotors that operate independently, offering versatile swath collection options.
Whether dealing with dense or sparse crops, the Kverneland 9671T S Evo adapts seamlessly to ensure optimal raking efficiency. Its robust design and innovative technology make it a reliable choice for farmers seeking to maximise productivity and minimise downtime. The independent rotor operation allows for precise control, ensuring that each pass is tailored to the specific needs of your field. The Kverneland 9671T S Evo is your go-to solution for maximising raking efficiency and adapting to various crop volumes.
Highlights
- Independent Twin Rotors collect one large swath or two smaller swaths.
- Enhanced Crop Gathering merges two swaths into one, collecting up to 12.5 meters of crop.
- Optimised for Low-Volume Crops, combine multiple passes into a single row.
- Maintenance-friendly CompactLine gearbox with fully enclosed oil bath design
Features
- It is possible to collect either one large swath or two smaller swaths.
- Kverneland 9671 S Evo can place two large swaths into one, allowing a total of up to 12.5 m crop to be gathered into one swath.
- QuickLift system lifts up to 50 cm for easy swath crossing.
- Single-acting valve enables simple rotor operation.
- Swath board folds automatically for smooth transport.
- Compact transport width under 3 m (2.45 m with tine arms removed).
- Clean, well-shaped swaths thanks to precision rotary rakes.
- TerraLink Quattro system ensures 3D rotor control and excellent ground following.
- Maintenance-free design with no pivots or joints to wear out.
- Automatic rotor suspension for smooth, consistent operation.
- Stable tine contact with built-in pressure bias and close-positioned wheels for clean raking at high speeds.
- The CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Vicon-developed cam tracks are specifically tailored to individual rotor diameters for optimal raking at any working width and on any model.
Technical specifications
Technical specifications
Download brochure| 9671 S Evo | ||
|---|---|---|
| Working Width | 6.6/7,1m | |
| Tine Arms | 11/12 | |
| Weight (kg) | 1350 | |
| Rotor diameter (m) | 2.95 |
