Kverneland 6500F

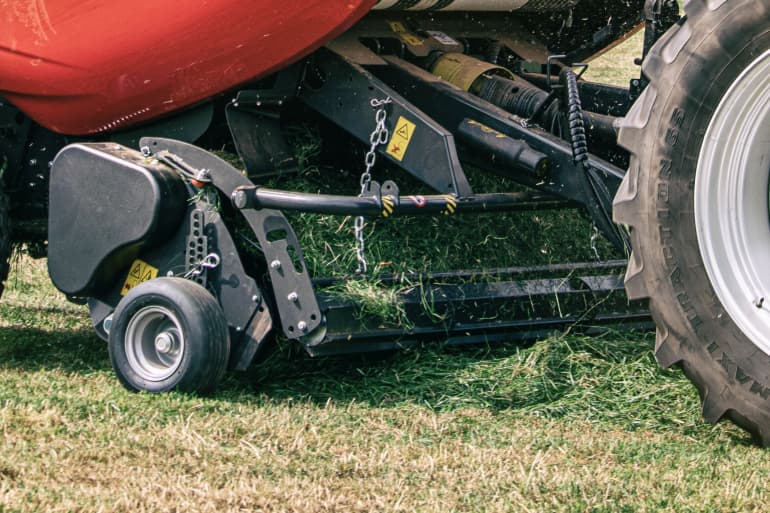

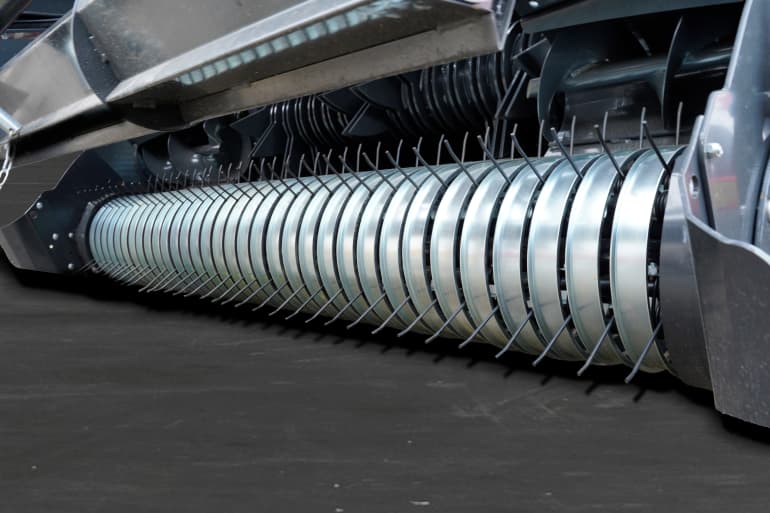

The 2.3m pick-up is packed with advanced upgrades for superior crop handling and durability:

• Five-Tine Bar System – Features 32 tines per bar for optimal crop gathering and efficiency.
• Reinforced Stability – Each tine bar is supported by four ball bearings for smoother operation and extended lifespan.
• Precision Cam Tracks – Twin easy-access cam tracks at both ends ensure seamless performance and maintenance.
• High-Capacity Roller Crop Press – Large diameter design enhances intake speeds for improved efficiency.

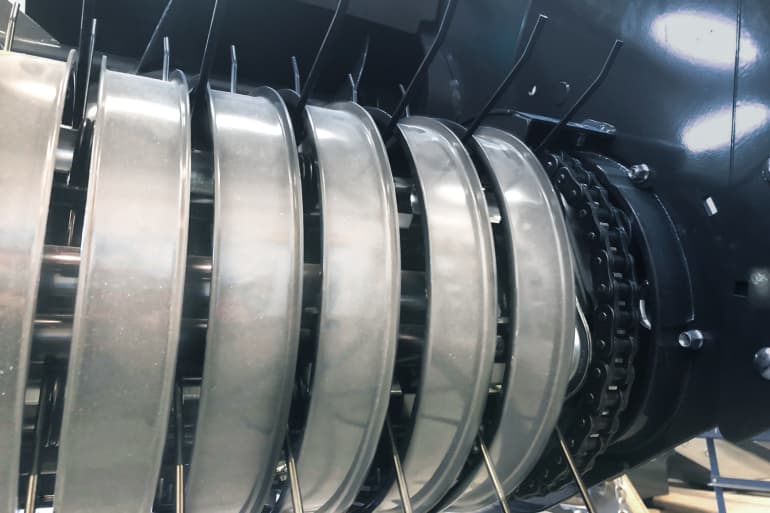

• Compact Inboard Driveline – Reduces transport width, offering better maneuverability and ease of transport.

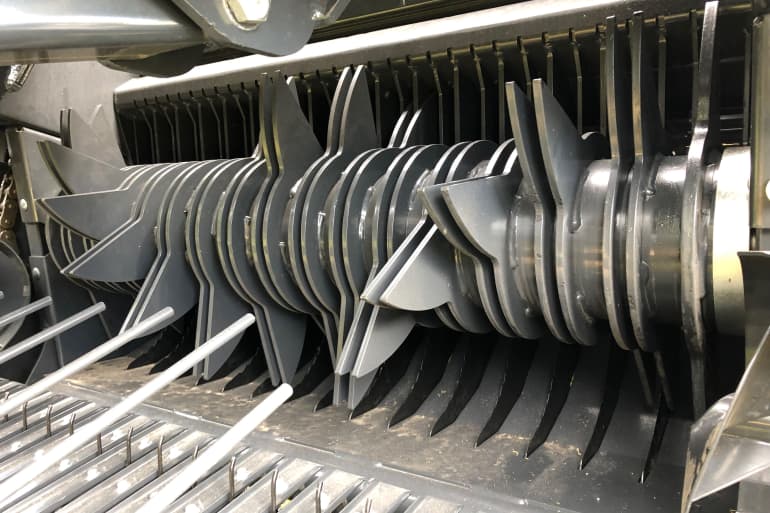

ChopFeed 15 Chopping system

The ChopFeed 15 knife pre-chopping system enhances operational efficiency and ensures smoother crop flow into the baler. Its specially profiled knives are designed to deliver a consistent chop length with minimal power usage. With a chop length of 70mm, it is the perfect solution for creating tight, dense bales. These bales improve fermentation, offer easier feeding out, and minimize wastage.

Individual Knife Protection

Each knife in the ChopFeed 15 is individually spring-protected against foreign objects, providing superior protection compared to systems that only shield the entire knife bank. This innovative design ensures greater durability and reliability.

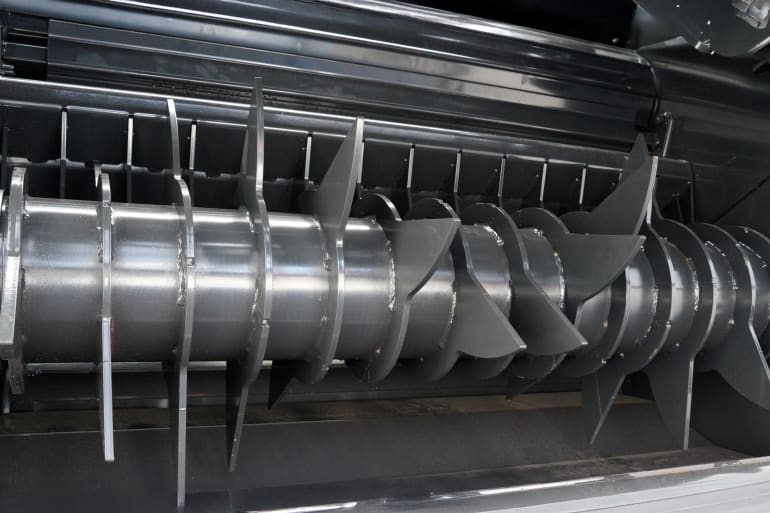

PowerFeed Rotor Intake

The PowerFeed Rotor Intake system is designed to deliver impressive intake capacity, effortlessly handling all crop types, no matter the conditions. Its large intake rotor diameter ensures the system can manage even the toughest harvest conditions with ease.

The ChopFeed 15 and PowerFeed intakes system feature the highly efficient Vicon Parallelogram drop floor system, designed for quicker and easier blockage clearance. Unlike traditional systems that only lower the rear edge, this innovative design also lowers the front section of the floor, where blockages are more likely to occur, ensuring faster, more effective clearing.

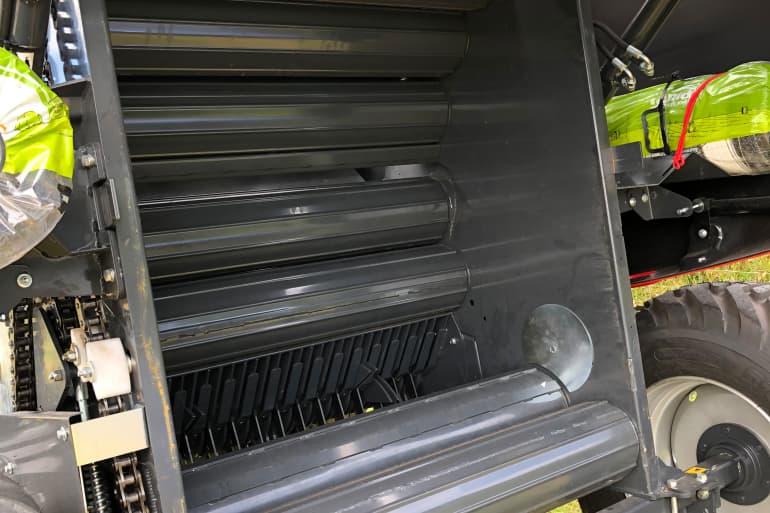

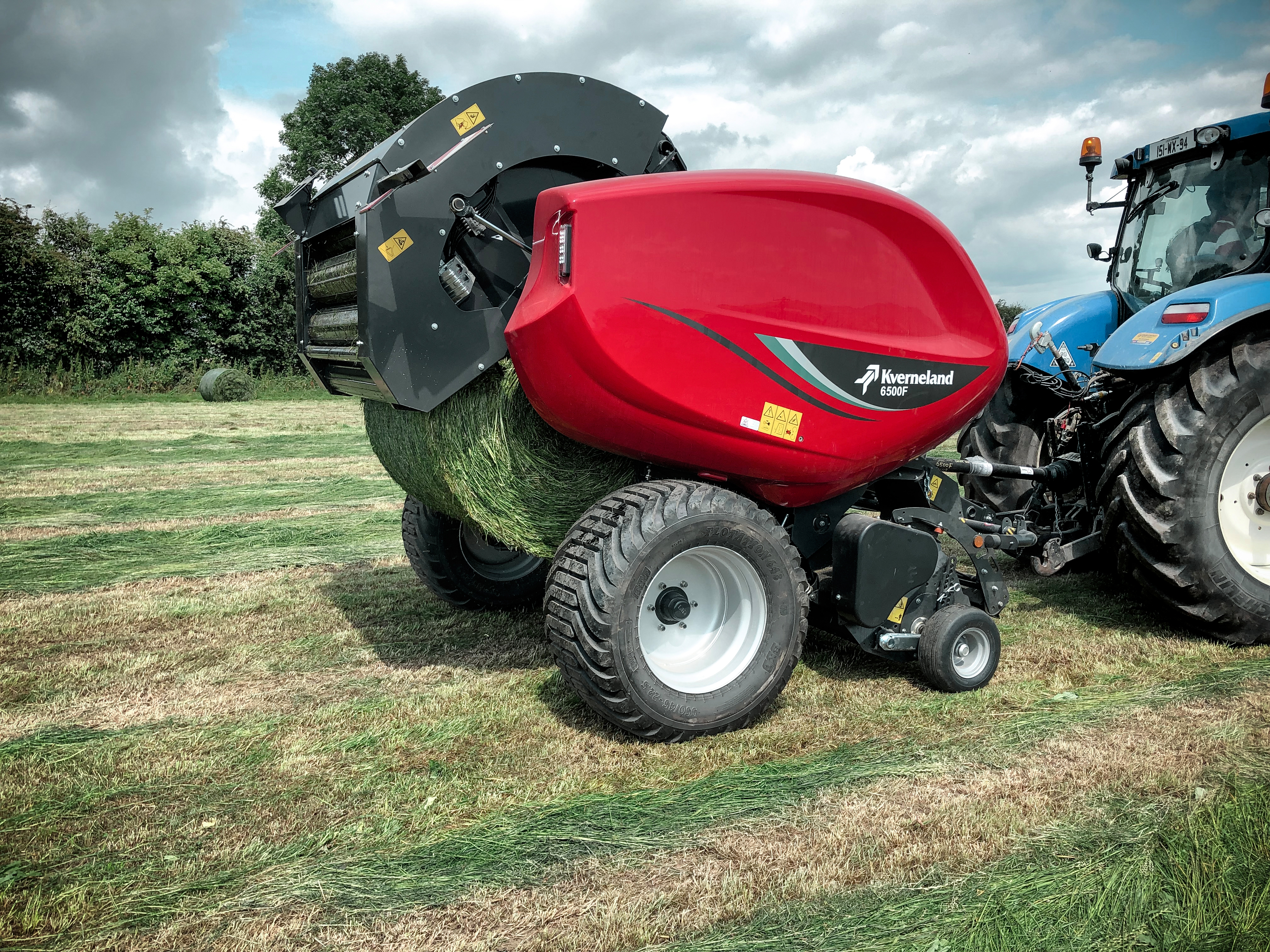

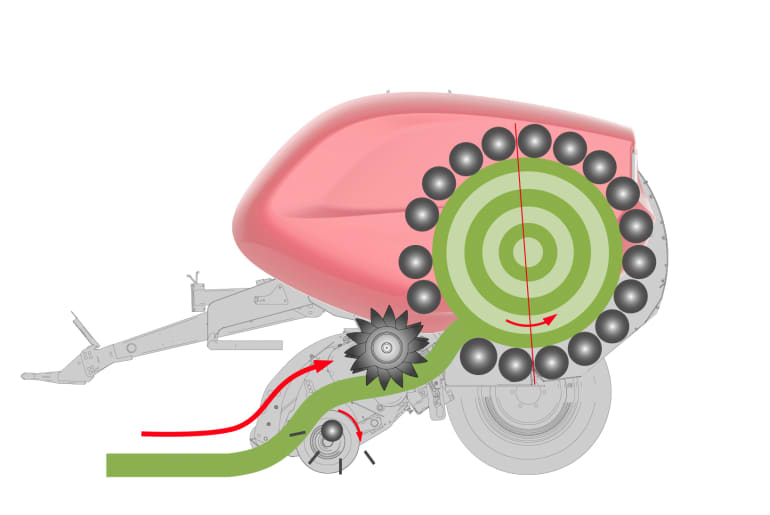

The Kverneland 6500F is the ideal baler for heavy silage conditions, built to handle tough tasks with ease. Its PowerMax bale chamber features 18 heavy-duty rollers arranged in a perfect circle, ensuring maximum bale rotation capability in all conditions. This design guarantees the production of well-shaped, dense bales, consistently achieving high density in both wet and dry materials. Two rollers in the lower section of the main bale chamber help distribute the load, reducing stress and extending the baler's lifetime

Adaptable Bale Density

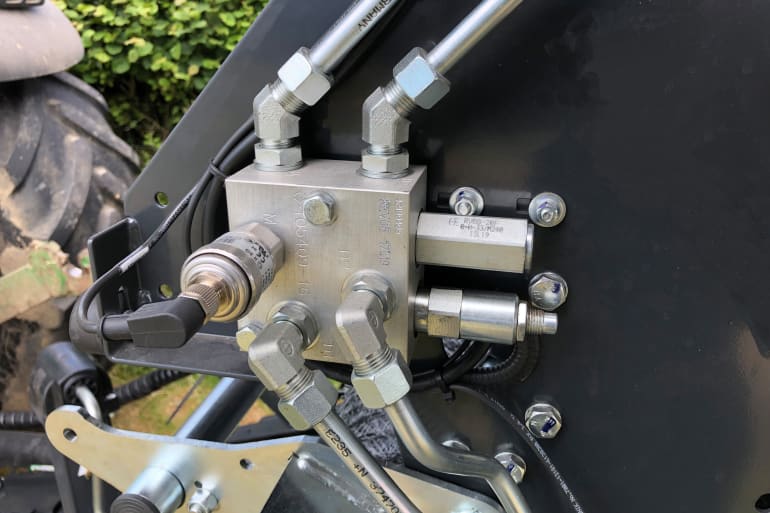

For ultimate flexibility, the bale density is hydraulically controlled and electronically monitored, allowing for precise adjustments from the comfort of the tractor cab. This feature lets you tailor the bale density to suit the prevailing crop conditions for optimal results.

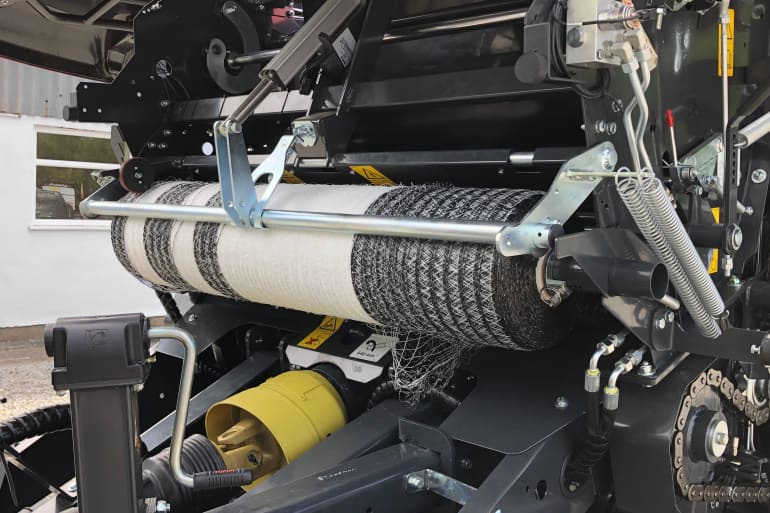

Kverneland 6500F eatures the patented front-mounted PowerBind net system, eliminating the need for troublesome feed rollers. With its market-leading cycle time, PowerBind ensures faster, more efficient baling, making your operation smoother and more reliable.

The PowerBind net system continuously retains the net in the injection arm. As the bale nears completion (90%), the arm moves forward, preparing for net injection. Once the bale is fully formed, the net is fed directly onto the bale at a flat angle, keeping the net tight and ensuring precise, reliable application every time. With PowerBind, you can confidently achieve professional results, unaffected by wind or crop build-up.

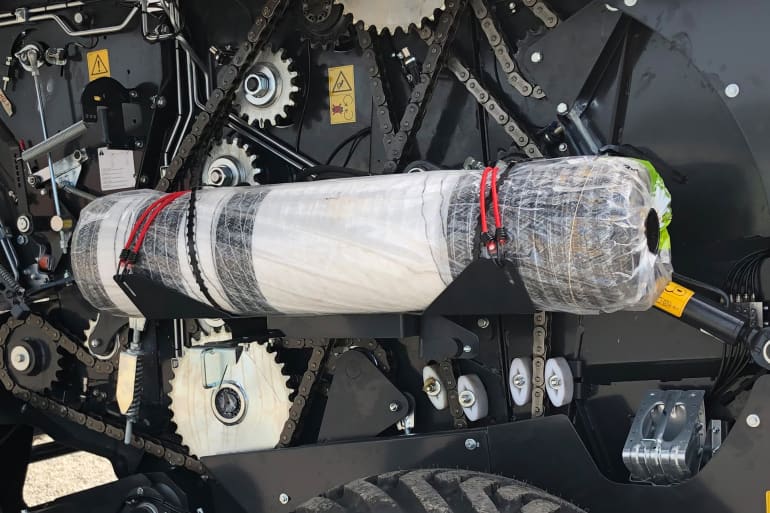

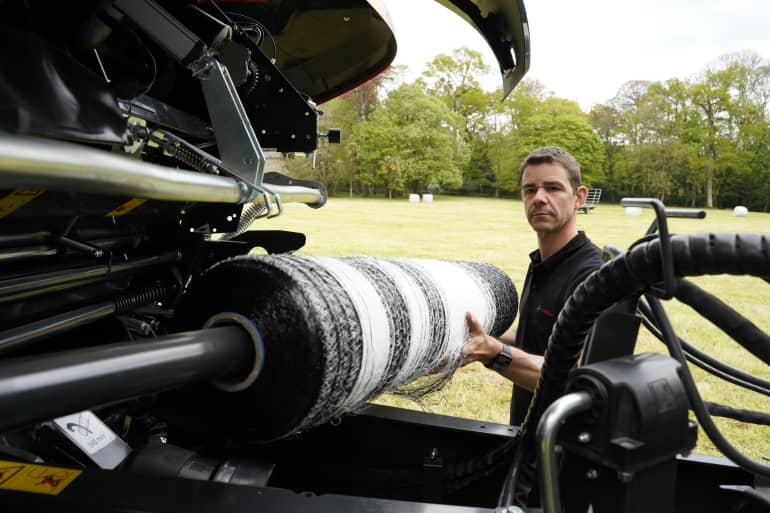

Low Net Loading Height

PowerBind features an exceptionally low net loading height, providing maximum convenience and efficiency. Replacing an empty roll is quick and easy—simply swing out the shaft and slide on a new roll.

TIM (Tractor Implement Management)

TIM is an ISOBUS solution that enables cross-product and cross-manufacturer communication between tractors and implements. This system allows for seamless two-way communication, ensuring both machines work in perfect harmony. By automating many repetitive tasks, TIM not only boosts efficiency but also reduces the risk of human error caused by fatigue. This technology enhances driver comfort by taking over numerous manual actions during the baling process.

Cost Efficiency
Another important factor to consider is cost. Utilizing a TIM-equipped baler efficiently can significantly reduce expenses related to wear and tear on parts.

TIM system as optional equipment

TIM simplifies the baling process by taking the majority of the workload off the operator's hands. This results in a significant increase in operator comfort, as it eliminates many repetitive tasks. With reduced fatigue, work can be completed faster while maintaining consistently high bale quality. The TIM system is highly user-friendly, allowing even operators who change frequently to quickly master its functions and seamlessly integrate it into their workflow.

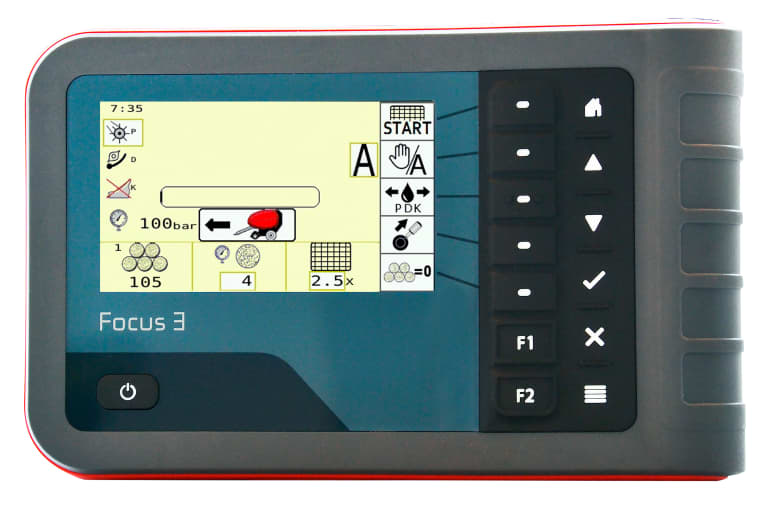

Focus 3 Control

The Focus 3 is built for effortless operation, with all essential functions easily controlled from the terminal. These include:
- Bale density adjustment
- Net quantity adjustment
- Tying information during the binding cycle
- Manual or automatic binding selection
- Five daily bale counters and a total bale counter
- Selection of knives, drop floor, or pickup raise/lower function
With these user-friendly controls, the Focus 3 optimizes your baling process, ensuring greater efficiency and precision at every step.

• Bearings are simply greased from four centralised grease banks. Sequential distribution ensures an equal quantity of grease is supplied to each bearing.
• Keeping chains correctly lubricated is crucial for an extended lifetime. FixBale 500 is equipped with an automatic system supplying oil to each individual chain.

The automatic greasing reduces the daily maintenance and increases the reliability through continuous greasing.
