Kverneland ROC RS 730
Merger | Multi Crop Merger
Side or centre delivery Mergers
Universal Mergers with variable working width from 6 to 7.2m
The advantages of this Multi Crop Merger
- A belt with saw-shaped, fibreglass-reinforced crossbars
- Wide suspended tandem wheels under the belt provide protection for grass fields
- The unique belt design results in even and fluffy swaths
- Crop placement and swath volume can be highly versatile
- Thanks to the high volume of oil, there is no need for a cooling fan
Description

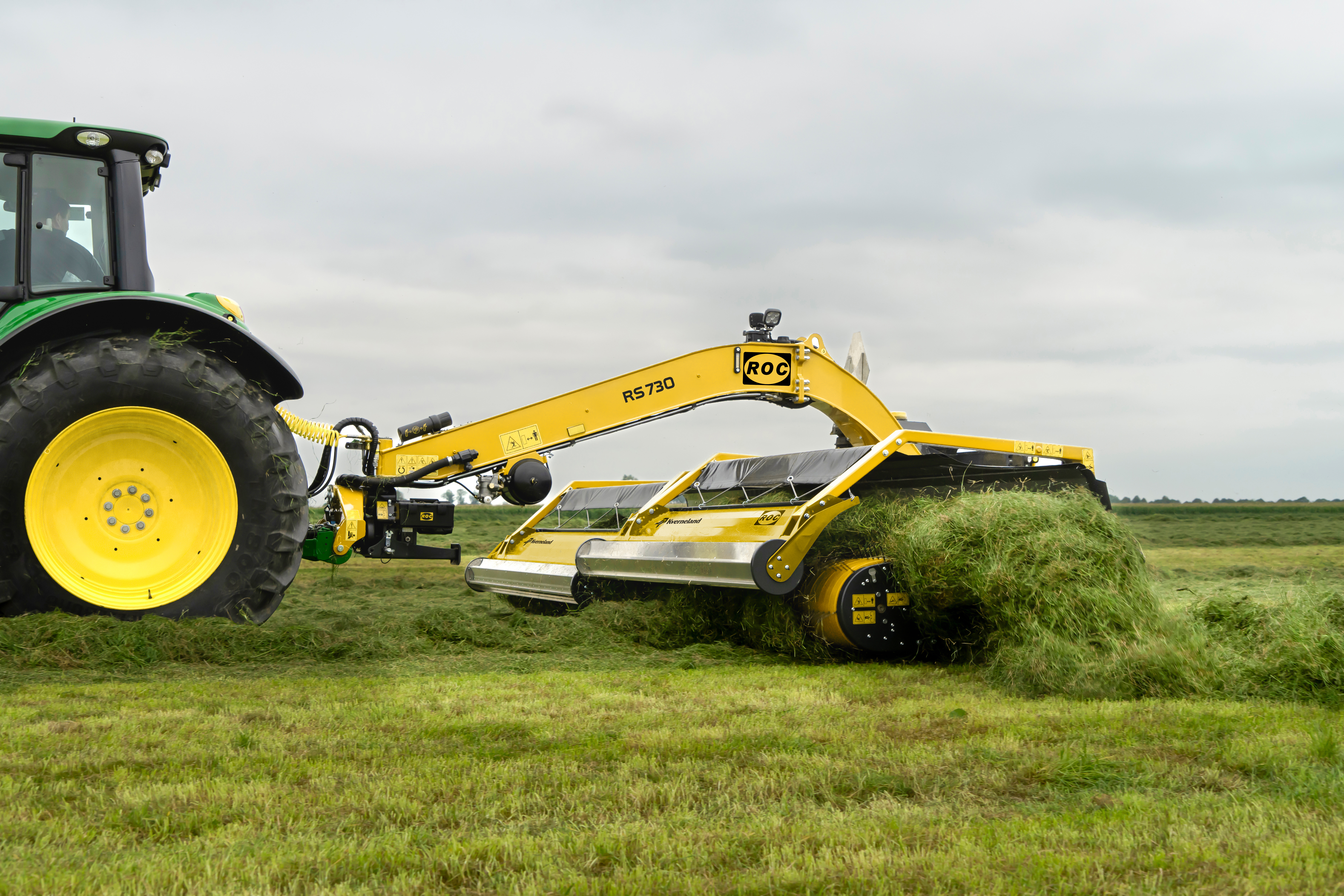

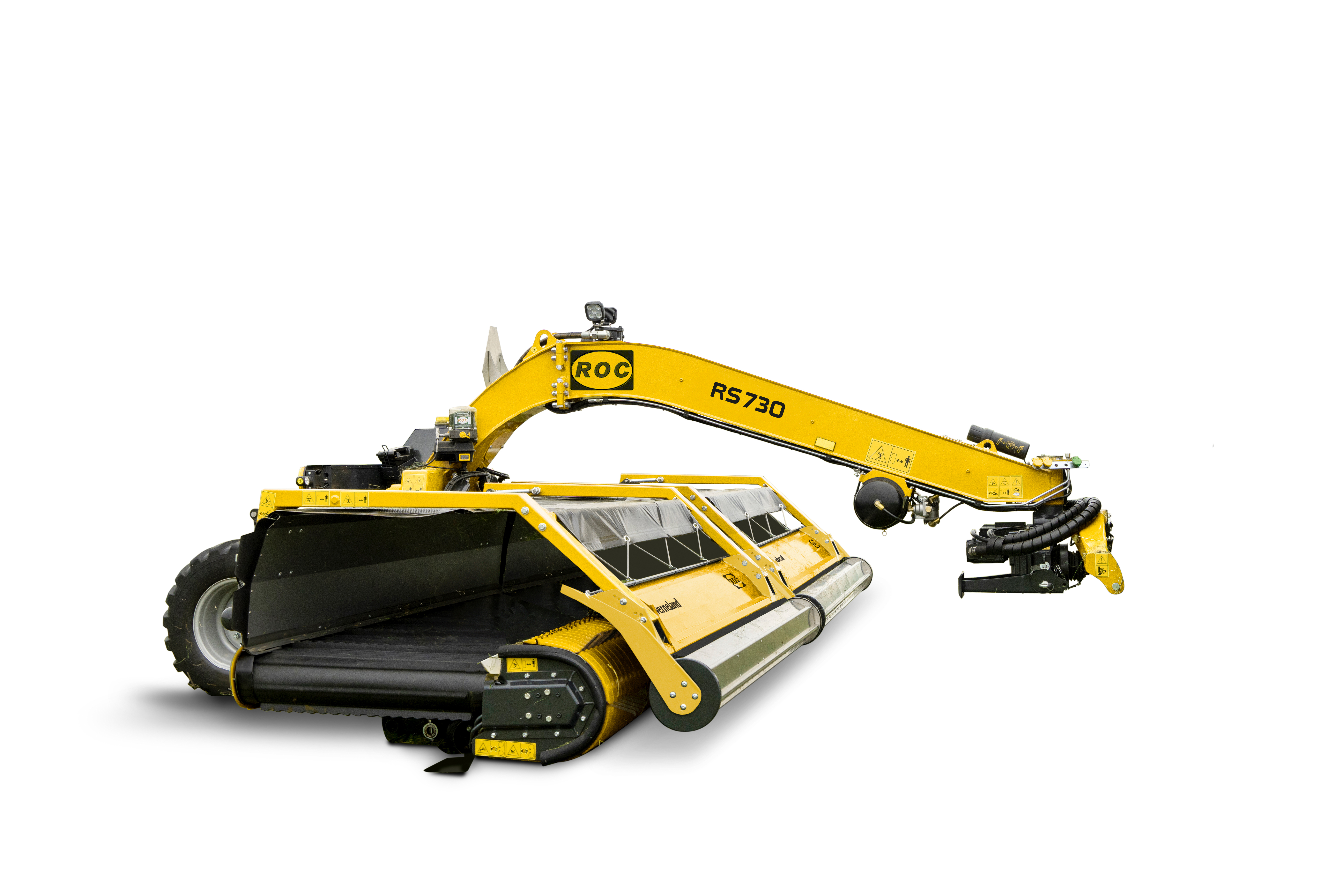

The Kverneland ROC RS 730 is a machine designed with two pick-up units that can be hydraulically shifted to allow the operator to use it for side or centre delivery. The side delivery has a minimum working width of 6m, while the centre swath can expand to a maximum of 7.20m.The remarkable features include excellent suspension for lifting and transporting crops without soil contamination. Its six-bar pick-up and roller work well for various silage cuts, and the reinforced belt has saw-blade-shaped crossbars for all crop conditions. Additionally, the fully suspended roller can be hydraulically lifted from the cab in any position for high-volume dry crops.
The Kverneland ROC RS 730 can be folded to 2.5m width for easy road transport and has road suspension for comfortable and fast transportation.
Highlights
- Rear-mounted 2 belt merger with variable working width from 5.95m to 7.20m.
- Designed for universal use as a side or central swath delivery.
- Unique pick-up system with 6 bars to ensure clean merging.
- A 250 mm roller near the tines guarantees smooth material flow for best swathing, even in short crops.
- Unique transport suspension carrier with centrally suspended turning point for pick-up units and tandem wheels.
- Electric height adjustment system
- High steering and manoeuvrability
- Foldable 2.5m width for road transport.
- Easy maintenance, quality, and replacement of components.
- An intuitive control unit operates all important functions.
Features
Features

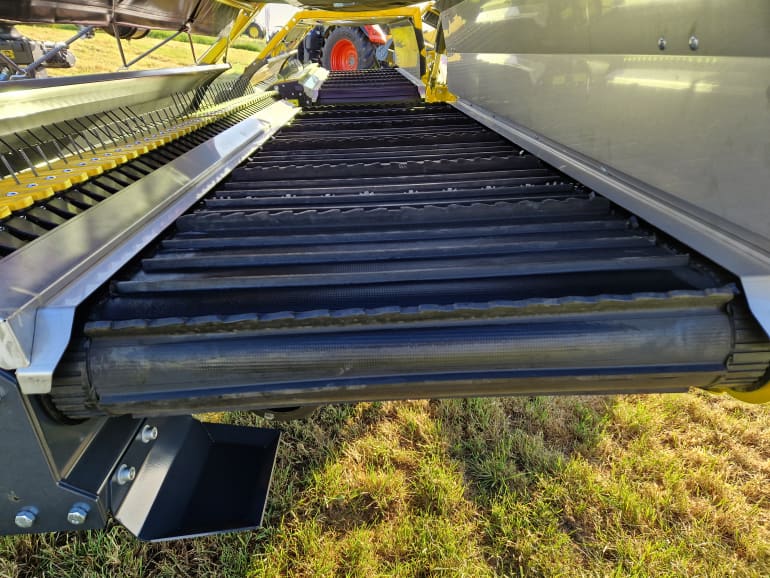

- A single belt system with two pick-ups
- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Large roller to operate in all crops
- The roller is in all positions hydraulic suspended
- Specially designed belt and pickup
- If the crops are dry, the roller can be lifted from the cabin to protect the leaves

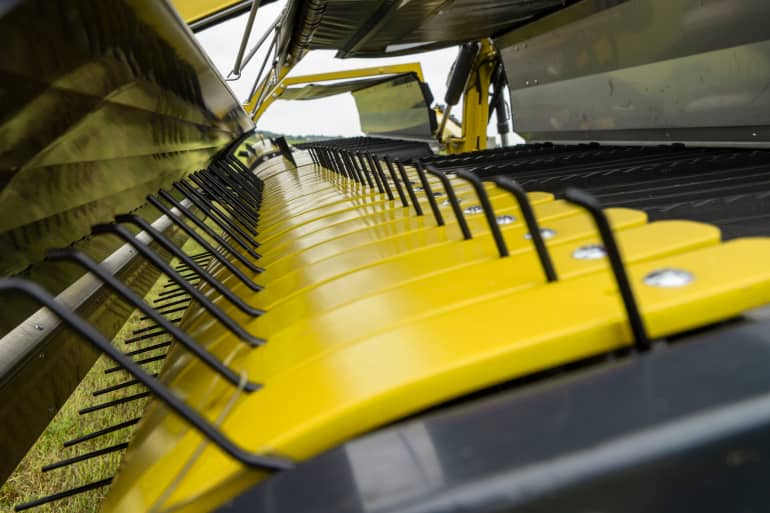

- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment

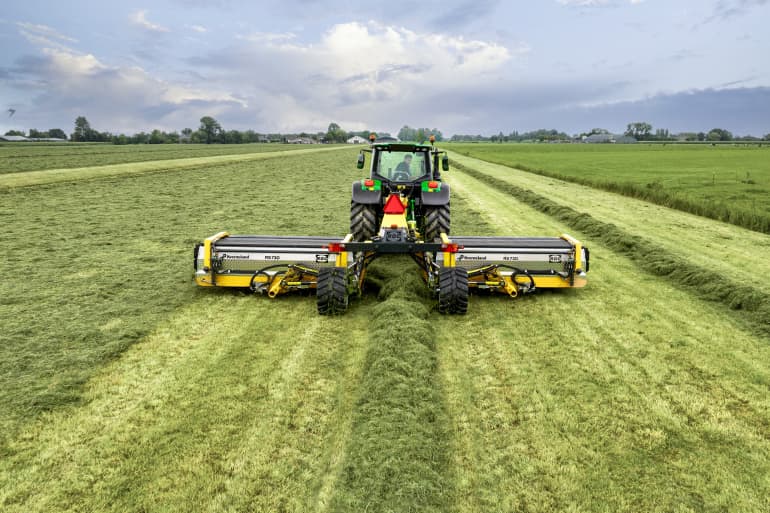

- The machine is designed for both centre and side delivery
- The side delivery has a working width of 7m, expanding to a maximum of 7.3m
- With expanded pickups, the rake can create a central swath or side belts turning left or right
- As the crop is transported on the belt, there is no roping, so the swath can be picked up and transported several times

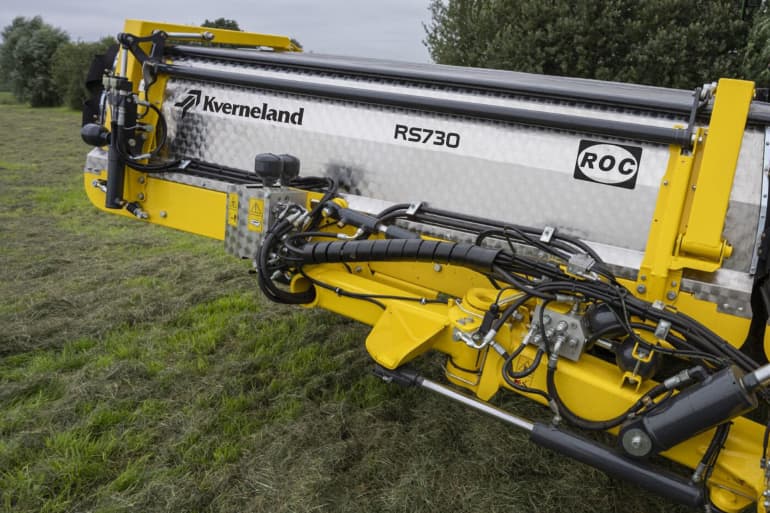

- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- An easy-to-use control panel manages all essential functions.
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- The safety system allows basic machine functions and operation without electronics
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small size and replaceable with limited efforts
- With a transport width of only 2.5 m the machine can travel easily on narrow roads and does not require any special permissions
Technical specifications
Technical specifications
Download brochure
You can select up to 5 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models."
You can select up to 2 models. Additional models are disabled. Please adjust your selection if you'd like to choose different models.
At least 1 model must be selected. Please adjust your selection if you'd like to choose different models.
| Kverneland ROC RS 730 | ||
|---|---|---|
| Working width (m) | 6-7.2 | |
| Pick up width (m) | 2 x 2.95 | |
| Transport width (m) | 2.5 | |
| Belts n. | 2 | |
| Power requirement (hp) | 70 | |
| Weight (kg) | 3440 |
