Kverneland ROC RT 870
Merger | Dry crop Merger
The machine can be used for side or centre delivery.
Universal Mergers with variable working width from 8.7 m
The advantages of this Dry crop Merger
- The unique tine design and cam-controlled pick-up mechanism
- The exceptional suspension system allows for high capacity
- Suspended tandem wheels prevent grass field damage
- The unique belt design creates even and fluffy swaths
- The unique merger can operate with one belt down while the other is in transport
- Possibility of loading crop on the stopped belt to clean corners
Description
The continuous merger of Kverneland ROC RT 870 is designed for professional use.The machine has 3 pick-ups with a 7.6m width. The advanced pick-up system offers several advantages over traditional rakes, including reduced hay loss, improved silage quality, and the use of six rows of springs to lift crops onto a conveyor belt. It features a revolutionary raking system that requires minimal power. To operate the merger, you will need an 80-horsepower tractor. This setup optimises working hours, reduces power consumption during harvesting, and ensures gentle swath production.
The Kverneland ROC RT 870 is the only model equipped with rear-wheel suspension. This allows for a width of 2.55 m, height of 3.0 m, and length not exceeding 5.10 m when folded, allowing for travel without limitations or authorization.
Highlights
- High capacity, rear mounted 3 belt merger with 8.7m working width - side delivery.
- Unique Pick-up system with 6 bars to ensure perfect ground adaption and clean merging.
- Partially or fully folding allows for raking smaller swaths or turning an existing one.
- Electric height adjustment system
- High steering and manoeuvrability
- Unique hydropneumatic road suspension system for fast and stable road transport
- Easy maintenance, quality, and replacement of components.
- An intuitive control unit operates all important functions
Features

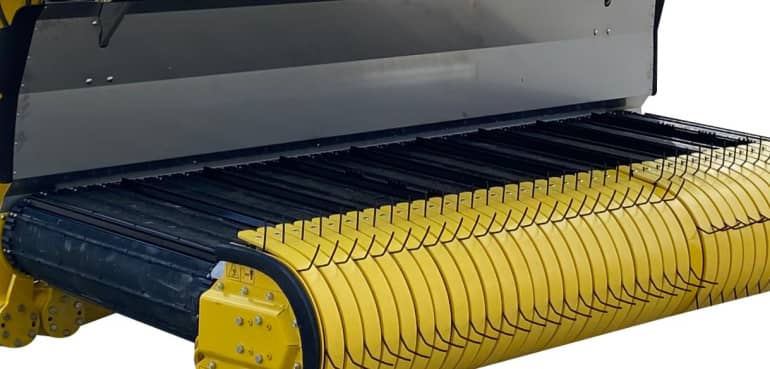

- A three belt system with three pick-ups
- Fiberglass-reinforced saw blade-shaped crossbars provide optimal transportation for dry and wet crops
- An actively-driven belt, equipped with a sprocket and gear belt, ensures continuous operation even in heavy crop conditions
- Most maintenance and repairs can be done without removing the belt, and all parts can be disassembled with a single wrench
- The speed of the belt and pick-up can be precisely adjusted
- The tension of the belt is evenly distributed between the left and right sides since it is adjusted centrally
- Controlled pick-up with two cams and six tine bars
- For heavy crops such as silage and maize straw, it is recommended to use wide stripes
- Heavy-duty plastic strippers maintain shape when hitting rocks and their design prevents crop loss
- Even the shortest crop can be transported on the belt with the hydraulic adjustable roller suspended in all independent positions
- Replacing tines with only two bolts to remove (one per tine and one per plastic stripper) using only one hand
- It is possible to repair bearings, cam track, and tine bars without the need to disassemble the pick-up
- Electric height adjustment
- Our mergers are designed and built to be maintenance-friendly
- All components can be easily disassembled
- Wear parts are in small sizes and replaceable with limited efforts
- To ensure a high speed and a clean crop in all conditions, four suspensions are used
- The pickup's standard tandem wheels protect the ground from damage
- The tandem wheel comes equipped with a spring suspension system
- With a transport width of only 2.5 m the machine can travel easily on narrow roads and does not require any special permissions
- An easy-to-use control panel manages all essential functions.
- The terminal provides optional features such as belt auto-stop when lifting the machine to ensure a clean swath ending
- The safety system allows basic machine functions and operation without electronics
Technical specifications
Technical specifications
Download brochure| Kverneland ROC RT 870 | ||
|---|---|---|
| Working width (m) | 8.7 | |
| Pick up width (m) | 7.6 | |
| Transport width (m) | 2.5 | |
| Belts n. | 3 | |
| Power requirement (hp) | 80 | |
| Weight (kg) | 4440 |
Technical specifications
Technical specifications
Download brochureProduct name |
Working width (m) |
Pick-up width (m) |
Transport width/ height(m) |
Belts n. |
Power requirement (hp) |
Weight (kg) |
Kverneland ROC RT 870 |
8.7 |
7.6 |
2.5/3 |
3 |
80 |
4440 |
