Kverneland ROC ST 870
Merger | Dry crop Merger
The hay specialist for 100% clean crop lifting.
High-capacity merger specialised for hay production with an 8.7 m working width.
The advantages of this Dry crop Merger
- High‑capacity hay merging
- Perfectly centred clean swaths
- Triple pick‑up ground following
- Flexible multi‑belt discharge
- Compact folding transport
Description
The Kverneland ROC ST 870 is a high‑capacity continuous dry crop merger designed for professional hay producers who demand maximum forage quality preservation. With a working width of 8.7 m and a pick‑up width of 7.6 m, the machine ensures efficient field coverage while gently handling crops.

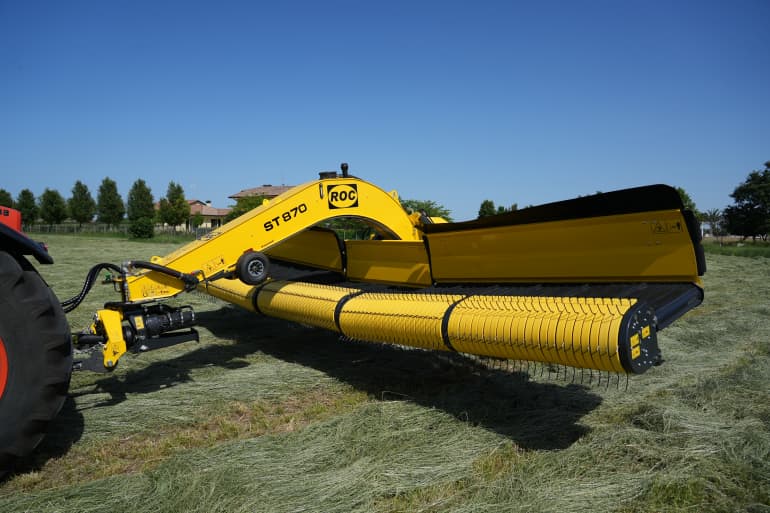

The ST 870 features three pick‑up elements, providing excellent ground following and a smooth, continuous crop flow. Its unique design allows the central belt to be removed while the pick‑up remains active, ensuring clean crop lifting and the formation of a perfectly centred swath. This makes the machine ideal for sensitive hay crops, where cleanliness and leaf retention are essential. Crop delivery is highly flexible, with all three belts unloading to one side or two belts to one side and the third to the opposite side. Hydropneumatic pick‑up suspension and suspended tandem wheels ensure stable operation, reduced soil contamination and consistent performance in varying field conditions. Despite its wide working width, the machine folds to a compact transport width of 2.5 m for safe and convenient road transport.
Features
Features
- Three‑belt system with two pick‑ups for high‑capacity, continuous crop flow
- Fiberglass‑reinforced, saw‑blade‑shaped crossbars ensure optimal transport of both dry and wet crops
- Actively driven belt with sprocket and gear drive guarantees reliable performance in heavy crop conditions
- Maintenance‑friendly layout, allowing most repairs without removing the belt; all parts are serviceable with a single spanner
- Precise control of belt and pick‑up speed, with centrally adjusted belt tension for perfectly even distribution
- Controlled pick‑up with dual cams and six tine bars for precise, gentle crop intake
- Hydraulically adjustable, suspended roller ensures smooth transport even of very short crops
- Durable plastic strippers retain their shape when hitting stones and prevent crop displacement
- Easy one‑hand tine replacement, with only two bolts per tine/stripper
- Service‑friendly design, allowing repair of bearings, cam track, and tine bars without removing the pick‑up, and the machine can operate even when partly folded
- Four advanced suspension systems ensure high operating speed and consistently clean crop intake in all conditions
- Standard tandem wheels provide strong ground protection and smooth field performance
- Spring‑suspended tandem wheels deliver superior stability and improved ground contour following
- Engineered for maintenance‑friendly operation, ensuring quick access and minimal downtime
- All components can be easily disassembled, simplifying service and daily inspection
- Compact, easily replaceable wear parts designed for fast changes with minimal effort
- Slim 2.5 m transport width allows effortless travel on narrow and restricted roads
- No special permits required, ensuring smooth, hassle‑free transport and full operational freedom
Technical specifications
Technical specifications
Download brochure| Kverneland ROC ST 870 | ||
|---|---|---|
| Working width (m) | 8.7 | |
| Pick up width (m) | 7.6 | |
| Transport width (m) | 2.5 | |
| Belts n. | 3 | |
| Power requirement (hp) | 80 | |
| Weight (kg) | 4190 |
