Kverneland 9472 C (HYDRO)
Rake | Double rotor rake
TerraLink Quattro for perfect ground followings
CompactLine two-rotor rakes with 7.2m working width
The advantages of this Double rotor rake
Compact two rotors rake with lower specs Steered transport carrier Maintenance-friendly oil-immersed gearbox Compact transport positionDescription

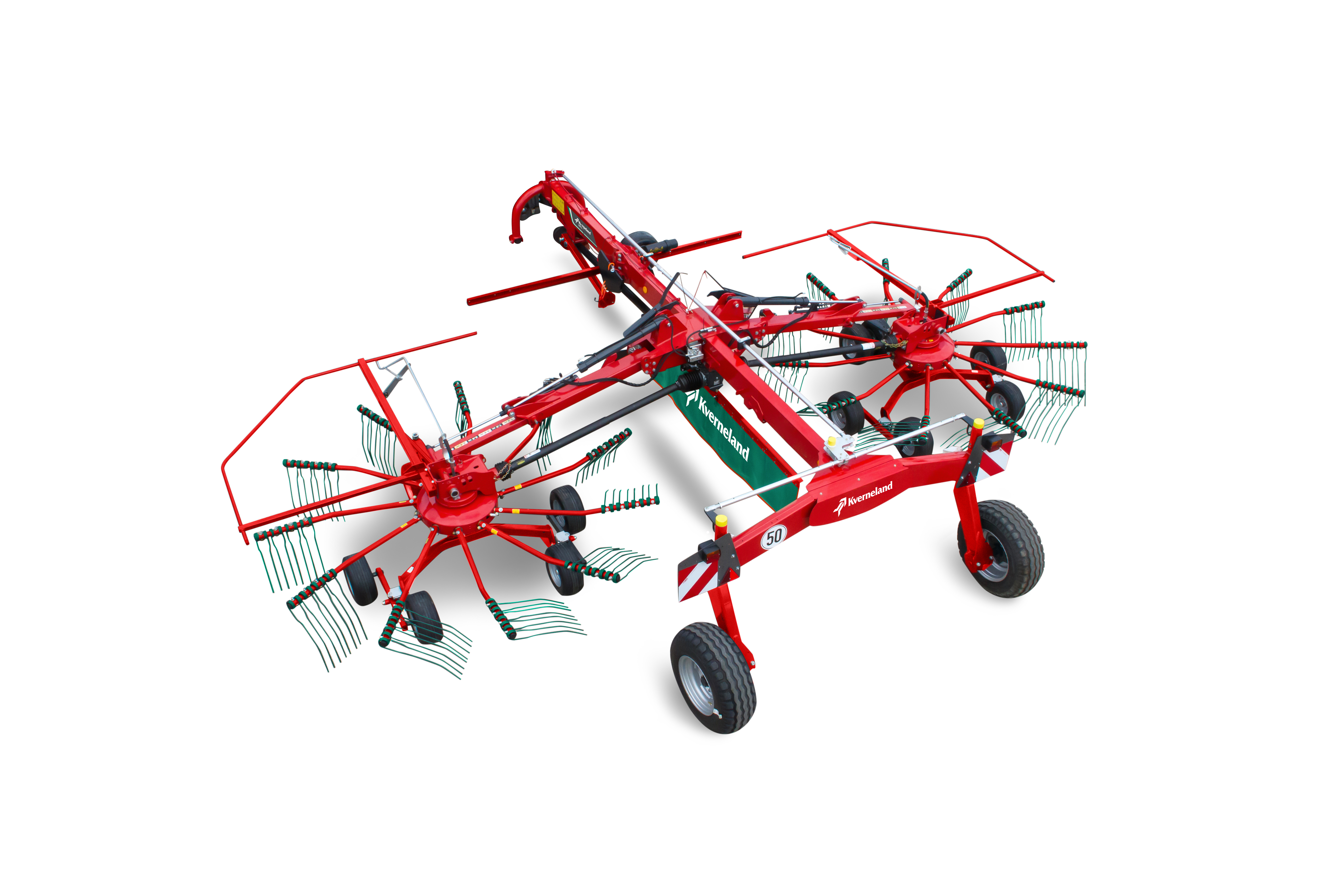

The 9472 C CompactLine multirotor cost-effective rakes with a 7.2m working width and mounted on a solid and stable frame ensure a long lifetime. Features include actively steered wheels, TerraLink Quattro system, and hydraulically adjustable working width as standard. Kverneland 9472 C Hydro version is fitted with hydraulically operated axles on the mainframe to lift and lower the machine during transport and operation. This feature significantly reduces transport height by 40cm, allowing transport height as low as 3.45m.
Features
- The Kverneland CompactLine rakes feature oil-immersed cam discs and guide rollers.
- Tine arm bearings are fully lubricated, and hence absolutely maintenance-free.
- High-tensile tine arm holders and two bearings on either side of the driveshaft, provide the compact unit with strength and dependability.
- Kverneland-developed cam tracks are specifically tailored to individual rotor diameters, for optimal raking at any working width and on any model.
- The rear carrier frame with controlled steering facility allows tight turns on headlands and loss free swathing, even in awkwardly shaped fields.
- Even if the rotors are lifted on a steep slope, the steering system reliably counteracts any deviation.
- The ability to make sharp turns up to 80° and the cross stabilizer in the headstock are unique Kverneland features.
- Kverneland rotary rakes are designed to do well-shaped and clean swaths, achieved with precision in every part of the raking.
- The ability to follow ground contours is important to avoid dirt in the swath - especially in uneven field conditions.
- The TerraLink Quattro system controls the rotor in 3 dimensions, with a unique combination of an undercarriage with 4 wheels and a specially designed rotor suspension system. This ensures superb raking performance, even at higher forward speeds.
- Maintenance-free system - no pivots or joints to wear out.
- Automatic rotor suspension, ensuring smooth operation.
- Built-in pressure bias on front wheels prevents lifting and tine bounce.
- Optimal ground following for clean raking at high forward speeds. All wheels are positioned close to the tines.
- The Kverneland centre swath rakes offer hydraulic adjustable working width.
- This enables varying swath width, ensuring a perfect match to the pick up width of loader wagons, balers and foragers.
Working Width |
Swath Width |
|
9472 C |
6.20 - 7.20m |
1.20 - 2.20m |
9476 C |
7.00 - 7.80m |
1.20 - 2.20m |
9580 C |
7.00 - 8.00m |
1.20 - 2.20m |
9584 C |
7.60 - 8.40m |
1.30 - 2.10m |
9590 C Hydro |
8.00 - 9.00m |
1.20 - 2.20m |
Technical specifications
Technical specifications
Download brochure| 9472 C | 9472 C Hydro | ||
|---|---|---|---|
| Working Width | 6.2-7.2m | 6.2-7.2m | |
| Tine Arms | 11 | 11 | |
| Weight (kg) | 1640 | 1680 | |
| Rotor diameter (m) | 2.95 | 3.00 |
Technical specifications
Technical specifications
Download brochureWorking Width |
No of Tines per Rotor |
Weight |
|
9464 C |
6.40m |
2x10 |
1510kg |
9472 C |
6.20 - 7.20m |
2x11 |
1640kg |
9472 C Hydro |
6.20 - 7.20m |
2x11 |
1680kg |
9476 C |
7.00 - 7.80m |
2x11 |
1640kg |
