f-drill CB
Seeder | Pneumatic mounted seed drill
Effective sowing – with flexibility ready for the future
The rigid coulterbar f-drill CB complements the f-drill front hopper as an integrated seeding combination providing maximum balance and utmost flexibility.
The advantages of this Pneumatic mounted seed drill
- Utmost flexibility – for all kind of farming systems
- Combined application of seeds and fertiliser/companion crop possible
- Precise and intelligent seed/fertiliser application
- Reduced soil compaction
Description

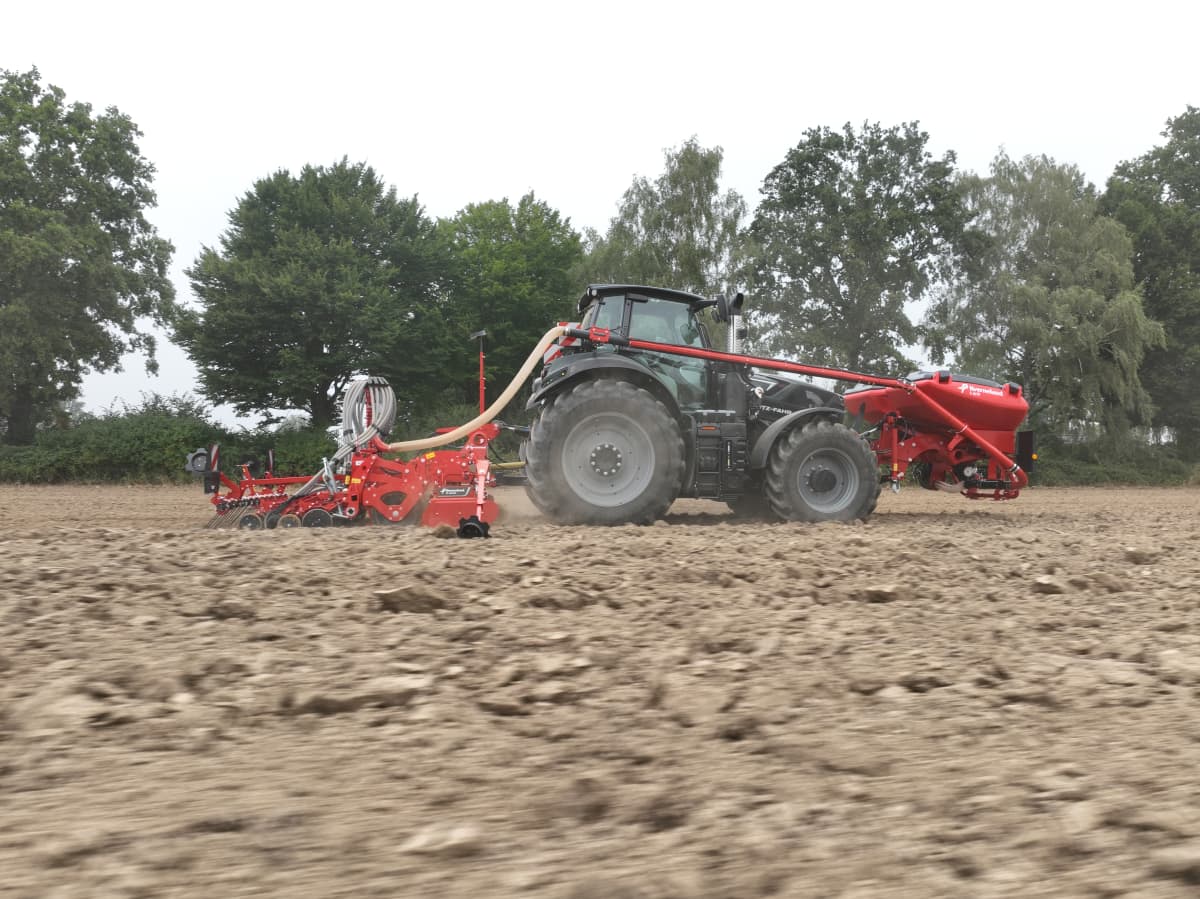

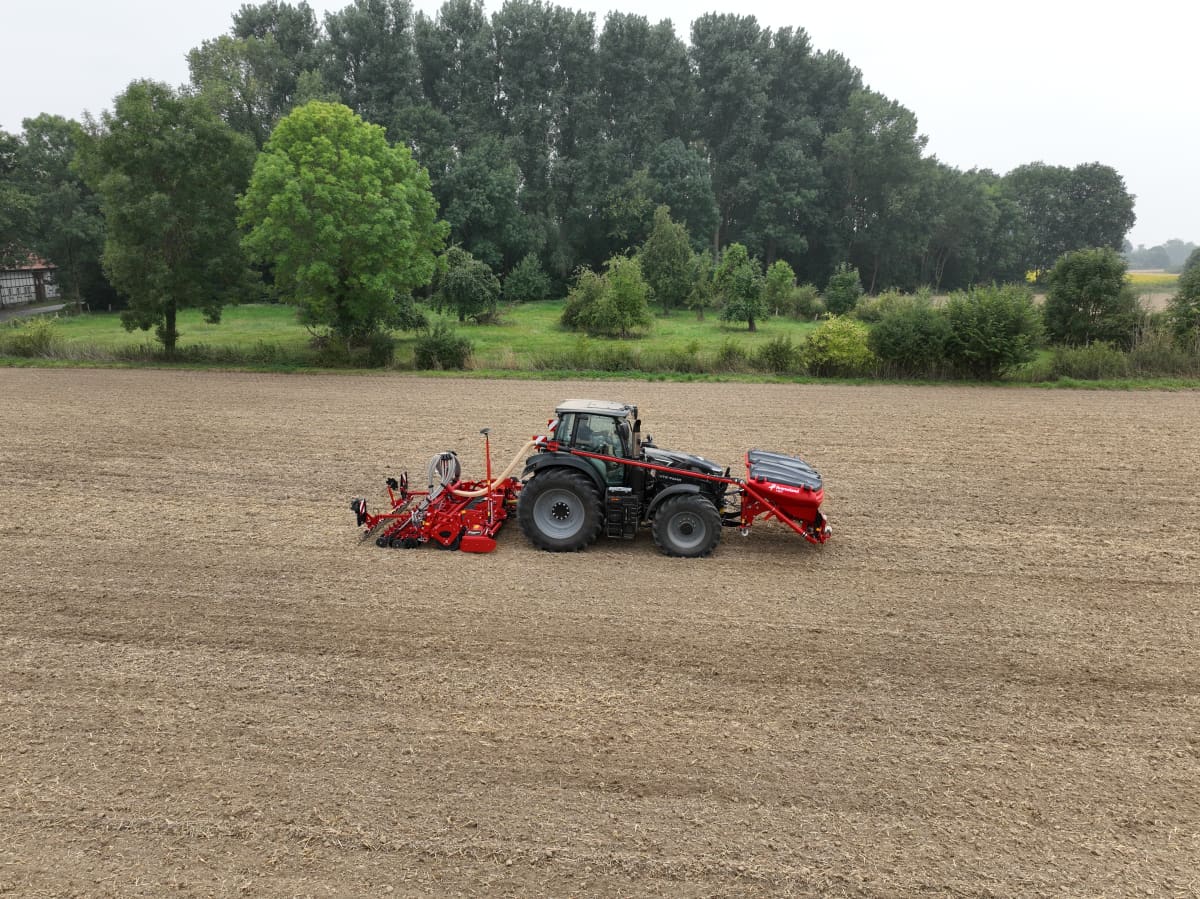

The even weight distribution of the modular seeding combination with the rigid coulter bar f-drill CB in the rear of the tractor and the f-drill hopper in front improves safety and manoeuvrability. The coulterbar of the f-drill with clamped coulters has been designed to give farmers and contractors utmost flexibility as it adapts to all kind of farming systems. The rigid coulterbar complements the f-drill model range as an integrated seeding combination and is available in 3.0m, 3.5m, and 4.0m working width. From the factory, Kverneland offers a pre-setting of either 12.5cm, 15.0cm, or 25.0cm with CX-II coulters staggered in two rows. Application of seeds, the combined application of seeds and fertiliser as well as of seeds and companion crops is possible. Due to the clear design and the high level of incorporated intelligent technology, the coulterbar offers maximum ease of use and utmost flexibility. The size of the distribution head can be choosen to comply with already available front hoppers on the farm, i.e. either 100mm or 135mm system.
Increasing performance and utilization is important to reduce farm and production costs. Combining machines and applications by reducing passes is a key strategy for maximizing productivity on the farm. The one pass operation will not only save time and labour but also minimse fuel consumption and reduce wear and tear on machinery.
Features
Features
The CX-II disc coulter from Kverneland not only guarantees smoother running but also exact seed placement. The flatter cutting angle of only 5.4° of the steel disc requires less pulling power to reach a constant seeding depth of up to 6cm.
Due to the combination of the steel disc with a diameter of 325mm and the flexible plastic disc, there is no need for independent scrapers, saving the cost for expensive wearing parts. In addition the coulter is completely maintenance-free!
Up to 50kg coulter pressure can be achieved by a pre-loaded spring. Safe operation is ensured when working with high working speeds and high quantities of plant residues on the soil surface. An inter-row coulter spacing of 445mm for maximum clearance and the following press wheel (standard equipment) ensure an optimum seed/soil contact in all conditions. The press wheels can be set in fixed, floating or lifted position in order to be able to adapt quickly to changing weather, soil or working conditions.
The CX-II coulter is also available as light edition without press wheel which reduces the weight and length of the coulterbar. This will allow to operate the seeding combination also with lower lifting capacity of the tractor.
The rigid f-drill CB in 3.0m / 3.5m / 4.0m and the folding f-drill CB F in 4.0m working width can be also fitted with double entry CX-II coulters for additional ways of sowing. With the coulter CX-II double-entry, fertiliser or a second crop is placed together with the seeds in just one working pass. This is especially suitable e.g. for phosphoric fertiliser to support the initial germination and development of the plants in the most efficient way. Due to an extra outlet of the CX-II coulter double entry, various combinations are possible:
- two types of seeds,
- one type of seed and one type of fertiliser or
- one type of seed combined with e.g. slug pellets
- one type of seed.
The flexible and individual depth setting of each CX-II coulter double entry allows different sowing depth even within one working width. This is extremely important when sowing two different products in one pass e.g. rape at a shallow depth and companion crops like beans deeper.
Easy connection with electronics – intelligent, operator-friendly
The ISOBUS e-com software’s “plug and play” compatibility enables the f-drill CB and the front hopper f-drill to be connected to any ISOBUS compatible tractor, for fully functional use by the tractor’s own terminal or alternatively, Kverneland’s Tellus 700 or Tellus 1200.
Technical specifications
Technical specifications
Download brochure| Technical Data | f-drill CB 3000 | f-drill CB 3000 plus | f-drill CB 3500 | f-drill CB 3500 plus | f-drill CB 4000 | f-drill CB 4000 plus | |
|---|---|---|---|---|---|---|---|
| Working width (m) | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.0 | |
| Clamped CX-II coulter type | CX-II with or w/o press wheel | CX-II double entry | CX-II with or w/o press wheel | CX-II double entry | CX-II with or w/o press wheel | CX-II double entry | |
| No. of coulter (12.5 / 15 / 25 cm) | 24 / 20 / 12 | 24 / 20 / 12 | 28 / 24 / 14 | 28 / 24 / 14 | 32 / 26 / 16 | 32 / 26 / 16 | |
| Row distance (cm) | 12.5 / 15.0 / 25.0 | 12.5 / 15.0 / 25.0 | 12.5 / 15.0 / 25.0 | 12.5 / 15.0 / 25.0 | 12.5 / 15.0 / 25.0 | 12.5 / 15.0 / 25.0 | |
| No. of distribution heads | 1 | 2 | 1 | 2 | 1 | 2 | |
| Ø of the distribution system (mm) | 100 (135 as option) | 100 or 2x100* (135 as option) | 100 (135 as option) | 100 or 2x100* (135 as option) | 100 (135 as option) | 100 or 2x100* (135 as option) | |
| Linkage ** | EURO-CONNECTION or Hitch CAT II | EURO-CONNECTION | EURO-CONNECTION or Hitch CAT II | EURO-CONNECTION | EURO-CONNECTION or Hitch CAT II | EURO-CONNECTION | |
| Coulterbar lifting | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | |
| Coulter pressure adjustment | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | Mechanical (as option hydraulic) | |
| Seed flow sensor | Option | Option | Option | Option | Option | Option | |
| Trackmarker | Option | Option | Option | Option | Option | Option | |
| Pre-emergence marker | Option | Option | Option | Option | Option | Option | |
| Following harrow | Option | Option | Option | Option | Option | Option | |
| Road light kit | Option | Option | Option | Option | Option | Option | |
| Kombination with Kverneland front hopper | f-drill compact or f-drill maxi | f-drill compact plus or f-drill maxi plus | f-drill compact or f-drill maxi | f-drill compact plus or f-drill maxi plus | f-drill compact or f-drill maxi | f-drill compact plus or f-drill maxi plus | |
| Shut-off valves (max. 8) | Option | Option | Option | Option | Option | Option | |
| Top linkage tramline switch | Option | Option | Option | Option | Option | Option | |
| Press wheel scraper | Option | Option | Option | Option | Option | Option | |
| Weight (kg) (depending on equipment) | 420 - 990 | 450 - 1020 | 460 - 1090 | 490 - 1120 | 520 - 1200 | 540 - 1230 |
*Only in combination with front hopper f-drill compact plus or f-drill maxi plus and coulter bar with CX-II double entry coulters.
** ”f-drill CB plus”, the rigid version always with EURO-CONNECTION.
Technical specifications
Technical specifications
Download brochureModel |
f-drill compact* |
f-drill maxi* |
f-drill compact duo** |
f-drill maxi duo** |
f-drill maxi plus*** |
Machine type |
modular mounted |
modular mounted |
modular mounted |
modular mounted |
modular mounted |
Hopper capacity (l) |
1,600 |
2,200 |
1,600 |
2,200 |
2,200 (60x40) |
Machine width (m) |
2.75 |
2.75 |
2.75 |
2.75 |
2.75 |
No. of ELDOS metering device |
1 |
1 |
2 |
2 |
2 |
Weight base machine (kg) |
658 |
678 |
732 |
752 |
767 |
Weight optional front packer (kg) |
361 |
361 |
361 |
361 |
361 |
Ballasting weights 100 - 600 kg (steps 2 x 50kg) |
Option |
Option |
Option |
Option |
Option |
Min. power requirement (HP/Kw) |
106/80 |
173/130 |
106/80 |
173/130 |
173/130 |
* Standard model: for the application of one type of seeds or fertiliser.
** The duo model: for higher application rates of one type of seeds or fertiliser.
*** The plus model: for two types of material.
*Only in combination with front hopper f-drill compact plus or f-drill maxi plus and coulter bar with CX-II double entry coulters.
** ”f-drill CB plus”, the rigid version always with EURO-CONNECTION.
Product FAQ`s
Yes. The Kverneland f-drill CB can be fitted with the CX-II coulter with double entry application tubes. This allows to applicate seed and fertiliser or two types of seeds in one pass. By combining multiple operations, the Kverneland f-drill CB front hopper seed drill combination can help reduce field traffic, save time, improve operational efficiency, and lower fuel consumption during crop establishment.
Yes. The plus models of the Kverneland front hopper range, the f-drill compact plus/maxi plus feature a divided hopper and two metering devices. In combination with the CX-II coulter double entry, this allows the application of seed, companion crops, and other materials in a single pass. The individual depth settings of the CX-II coulters allow different sowing depth row by row which is crucial for sowing e.g. rape at a shallow depth and simultanously companion crops like beans deeper, giving farmers greater flexibility for cover cropping and diverse cropping strategies.
The Kverneland f-drill CB uses the proven CX-II coulter system to support precise seed placement and accurate depth control. The flat cutting angle of the steel disc requires less coulter pressure to reach a constant sowing depth of up to 6cm and ensures smooth running. Thanks to the combination of steel disc and flexible plastic disc, there is no need for independent scrapers. Optional press wheels can further improve seed-to-soil contact, helping promote even more consistent crop establishment. The CX-II coulters are maintenance-free and can achieve up to 50kg coulter pressure by a pre-loaded spring. This allows high working speeds.
The Kverneland f-drill CB and Kverneland f-drill CB F front hopper seed drill combinations use an ISOBUS-compatible control system. The ELDOS metering unit is operated via Kverneland e-com software and supports features such as automatic section control. To ensure compatibility, the tractor's ISOBUS and hydraulic specifications should be checked against the requirements of the specific Kverneland f-drill front hopper seed drill combination configuration being used.
The Kverneland f-drill CB coulterbar complements the f-drill model range and is availabe from 3.0m to 4.0m as rigid and from 4.0 to 6.0m as folding model. The Kverneland f-drill front hopper seed drill combination is designed to suit a wide range of farming systems. It can be combined with different cultivation tools and supports applications such as seeding, fertiliser placement, and companion cropping. Its front hopper and rear coulter bar design helps improve tractor weight distribution, supports good manoeuvrability, and can help reduce soil compaction in the field.
The Kverneland f-drill CB front hopper seed drill combination was developed to provide flexibility across different farming systems. Its CX-II disc coulters are designed for accurate seed placement and consistent seeding depth, while the modular design allows the front hopper seed drill combination to be used with a range of cultivation systems and soil preparation approaches, including min-till and ploughed conditions.
The lift capacity required for a Kverneland f-drill CB front hopper seed drill combination depends on the complete machine configuration, including the front hopper size, working width, and cultivation implement used. The Kverneland f-drill CB front hopper seed drill combination is designed to distribute weight between the front and rear of the tractor, helping to improve balance, manoeuvrability, and overall handling. To ensure safe and effective operation, always match the complete seed drill combination to your tractor's specified lifting capacity.
The tractor power required for a Kverneland f-drill CB or Kverneland f-drill CB F front hopper seed drill combination depends on the complete machine setup. Key factors include the working width, front hopper configuration, cultivation implement, soil conditions, and operating depth. Because these factors can vary significantly between applications, Kverneland does not publish a single horsepower requirement for all f-drill CB and CB F configurations. Tractor matching should therefore be based on the specific front hopper seed drill combination combination being used.
The rigid model of the Kverneland f-drill coulterbar complementing the Kverneland front hopper seed drill combination is available in working widths of 3.0m, 3.5m, and 4.0m. Smaller working widths may be a good fit for mixed and medium-sized farms, while larger models can help increase productivity and operational efficiency across larger areas. Choosing the right working width depends on your workload, farming system, and overall machine combination.
