Rake - get ready for next season

Helpful tips and tricks to get your Rake prepared to operate at it’s maximum capacity through the season.

Only Original Parts will keep your machine a Kverneland

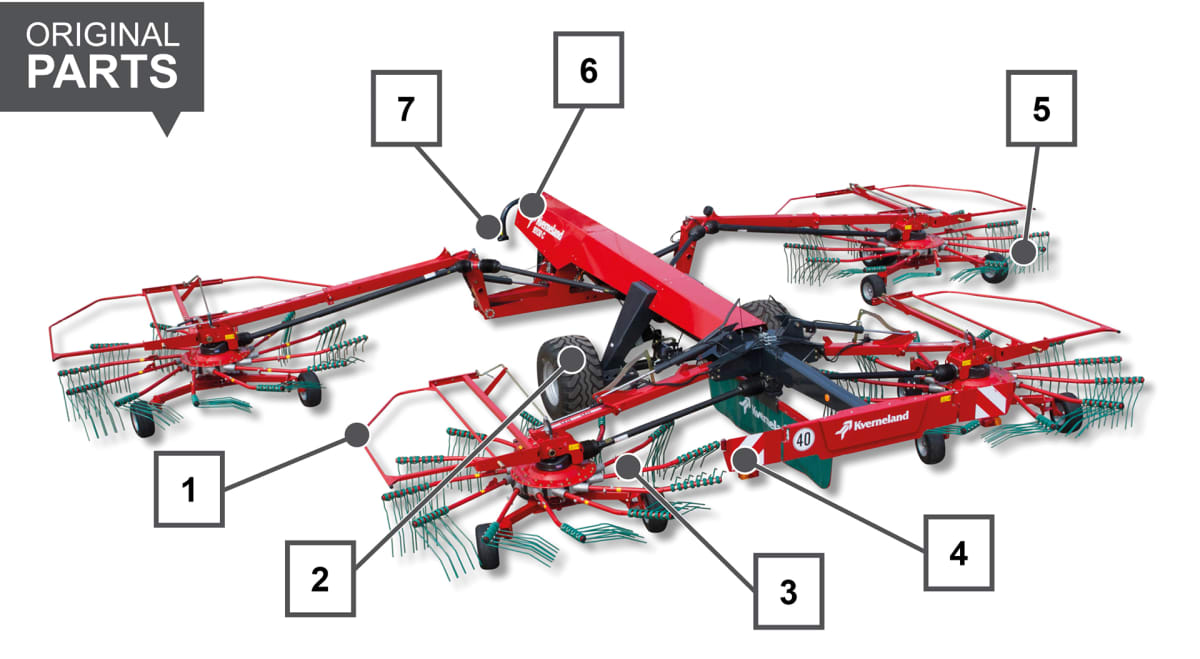

Kverneland rakes are known for being low maintenance. However being prepared for the coming season by giving your machine a preseason health check will ensure top performance whilst keeping downtime to a minimum.

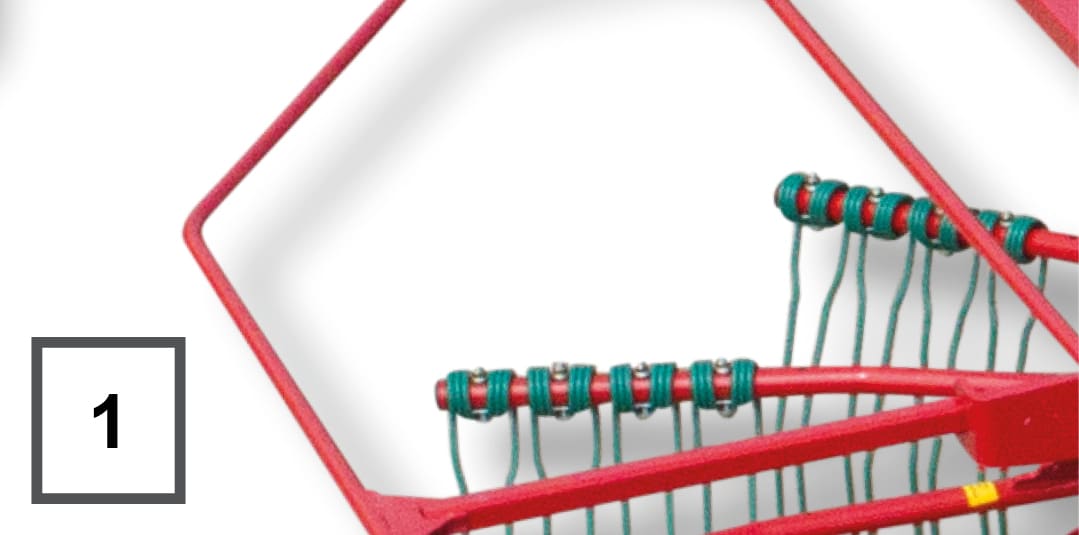

Ensure all safety guarding is fitted and functions correctly.

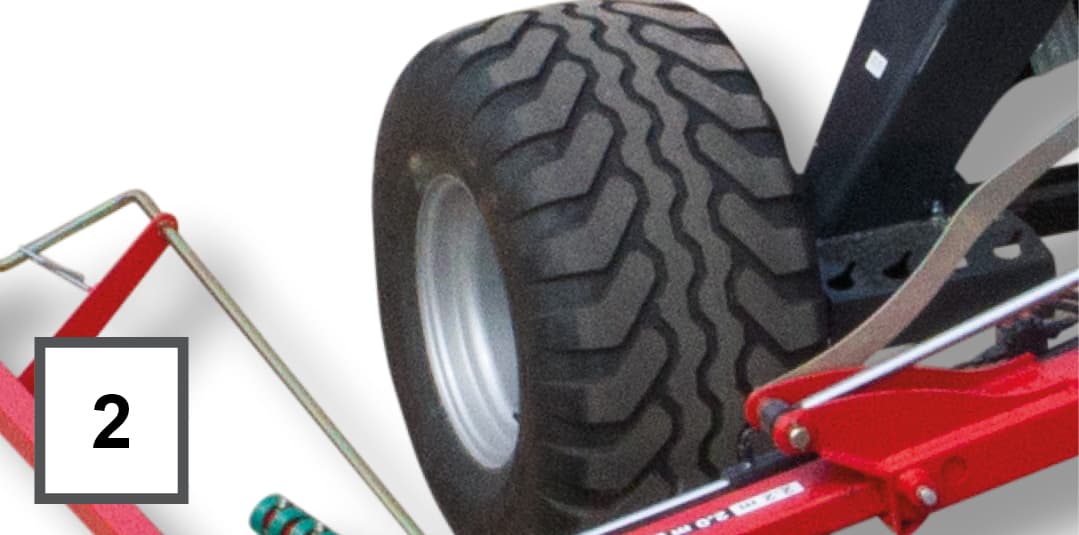

Check the condition and pressures of all tyres. Replace or adjust if necessary.

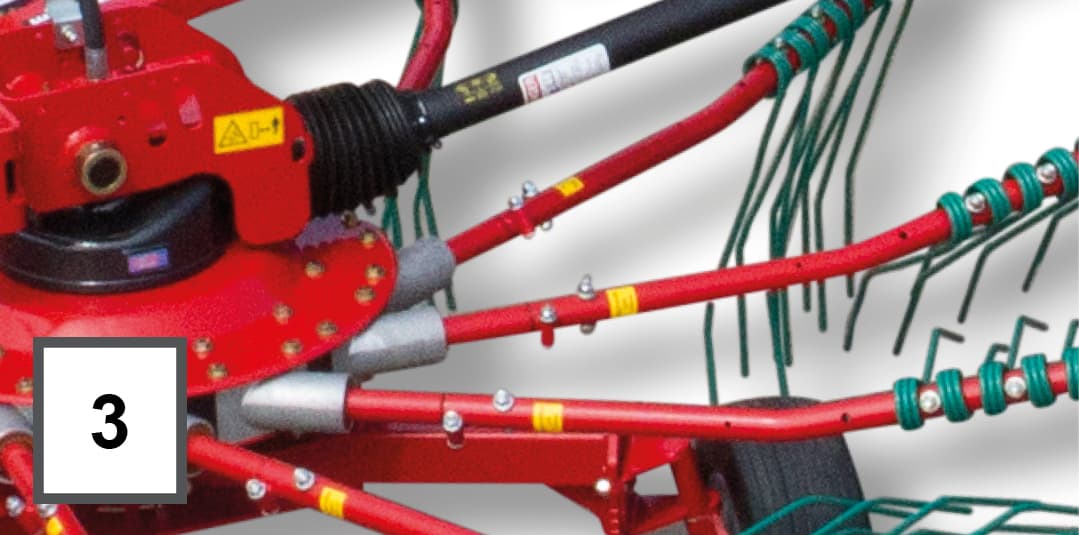

Check all steering and pivots points. Greasing if necessary.

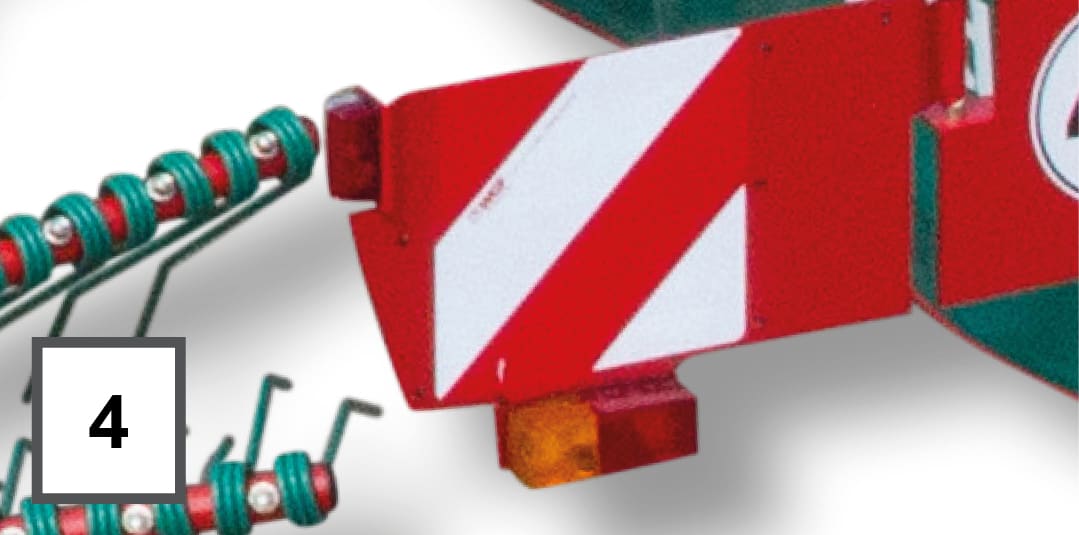

Check the condition and functionality of all Road lights. Repair/replace if necessary.

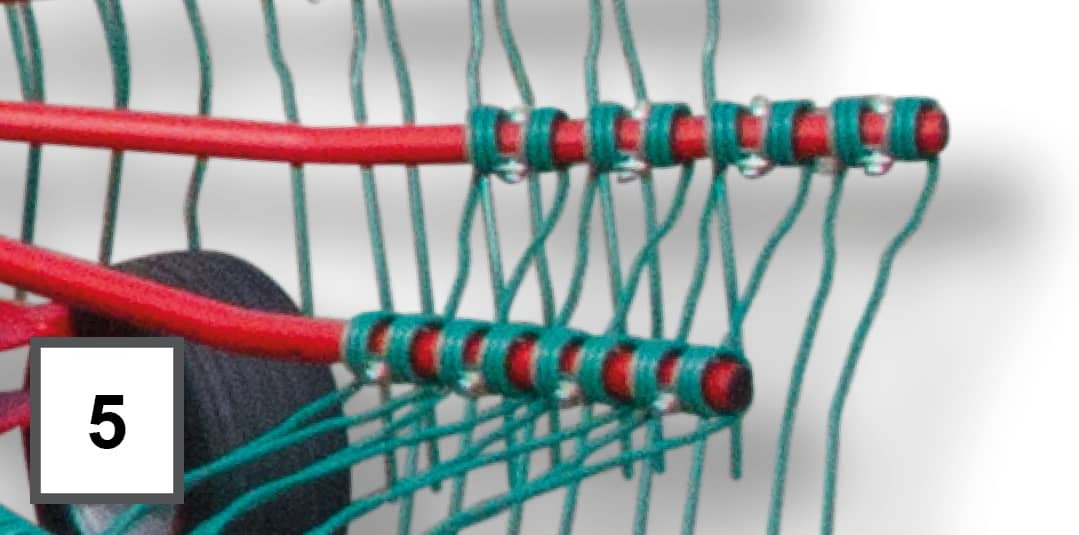

Check all Tines, safety fixings and Tine arms for wear or damage. Ensure all fixings are tight. Replace if necessary.

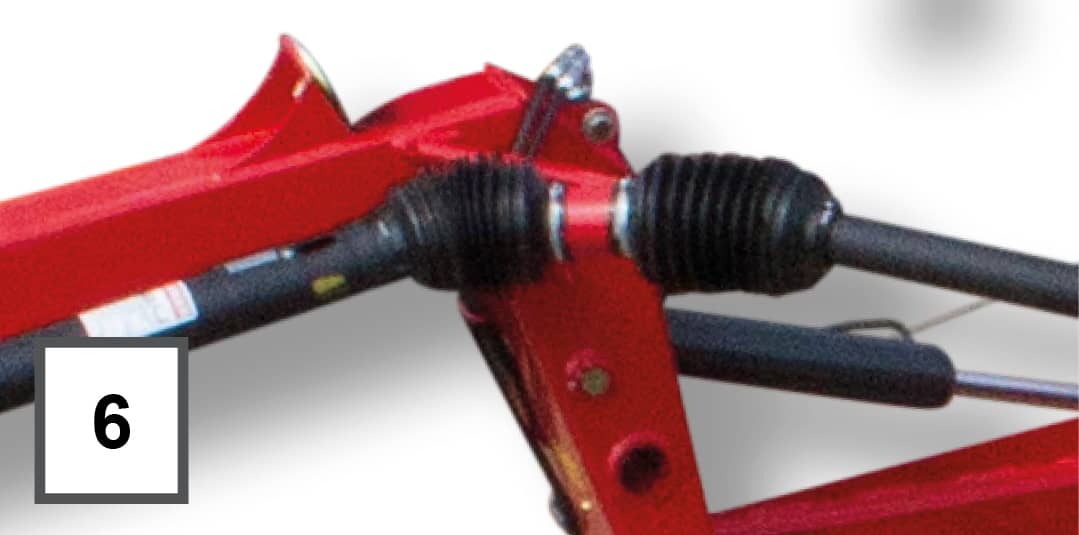

Make sure all PTO drive lines and joints are clean and lubricated.

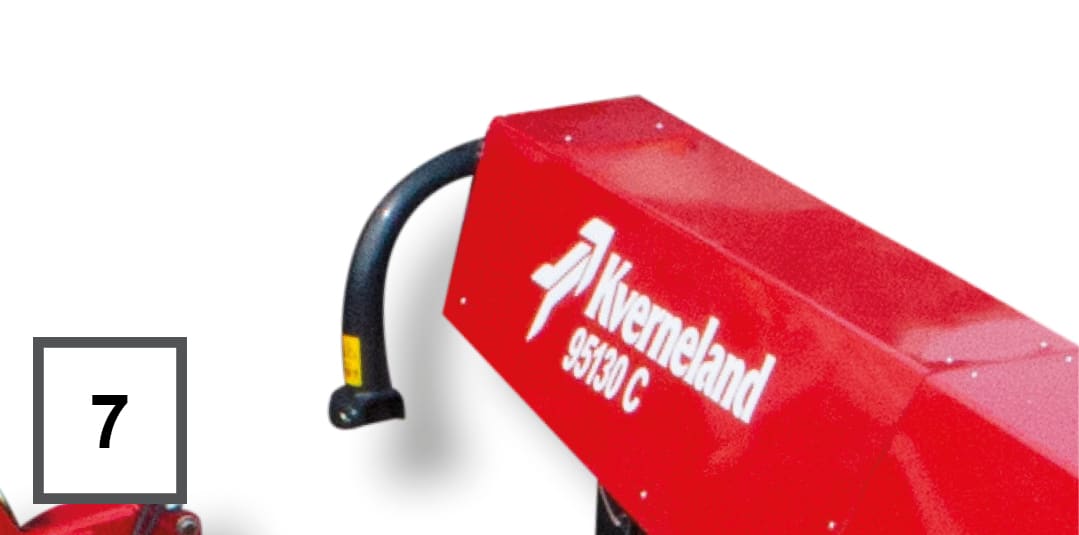

Check all hydraulic hoses and
connections. Replace if necessary.

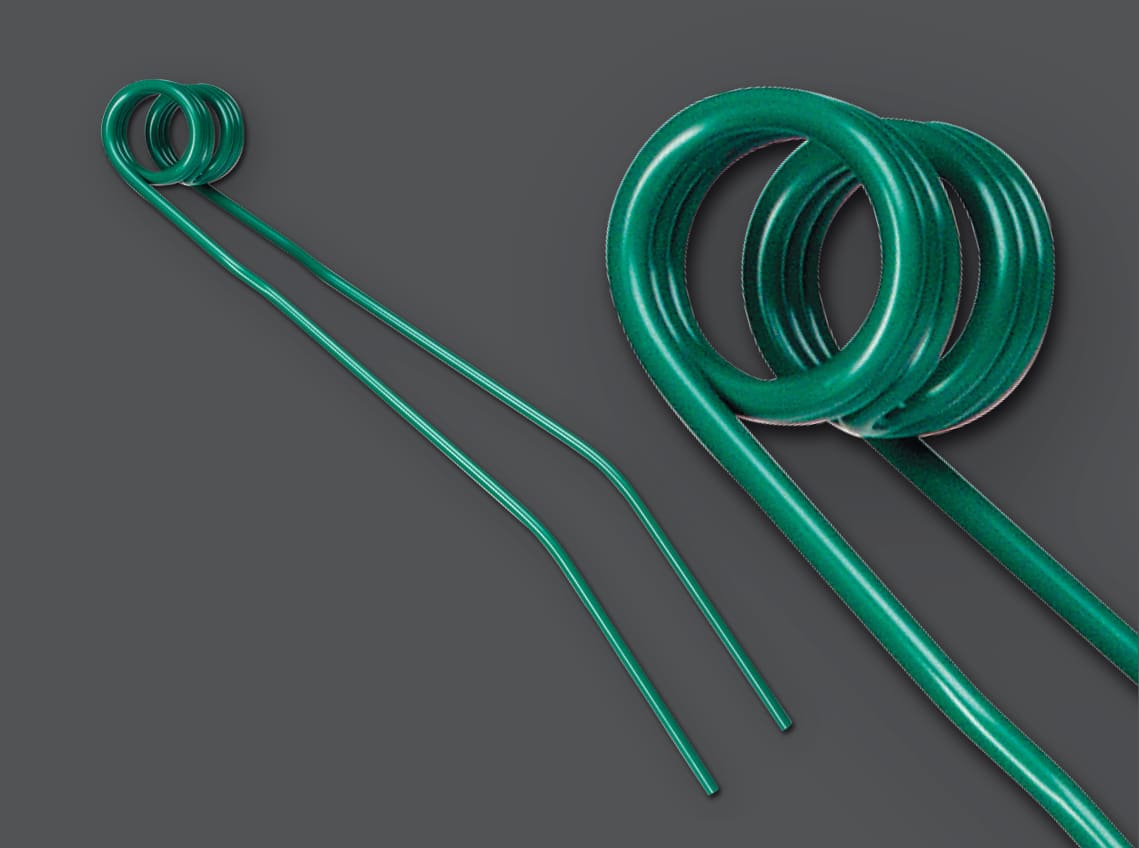

Duo tines

The special Kverneland Duo Tines, with their characteristic two-row raking,
accurately moves the crop into the swath. The narrow distance between each tine leg ensures a cleaner sweep and reduces crop wastage.

Duo, 9mm, A131227388

9mm, VF16606394.88

Duo, 10mm, VF16642899.88

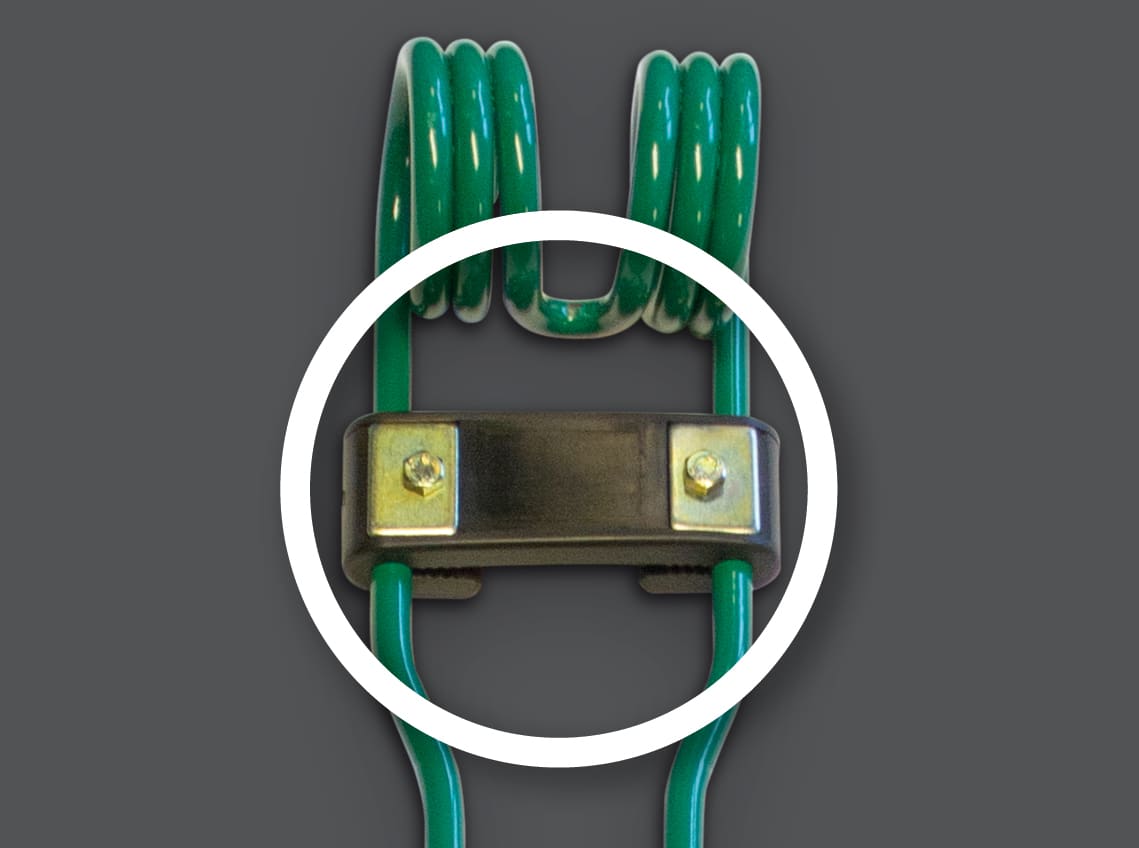

Tine safety

Damage to both livestock and machinery can be avoided by fitting Tine Safety clips to all tines. Mounted below the coil securing both tine legs - the safety device holds both halves of the tine together to prevent it from being lost in the crop.

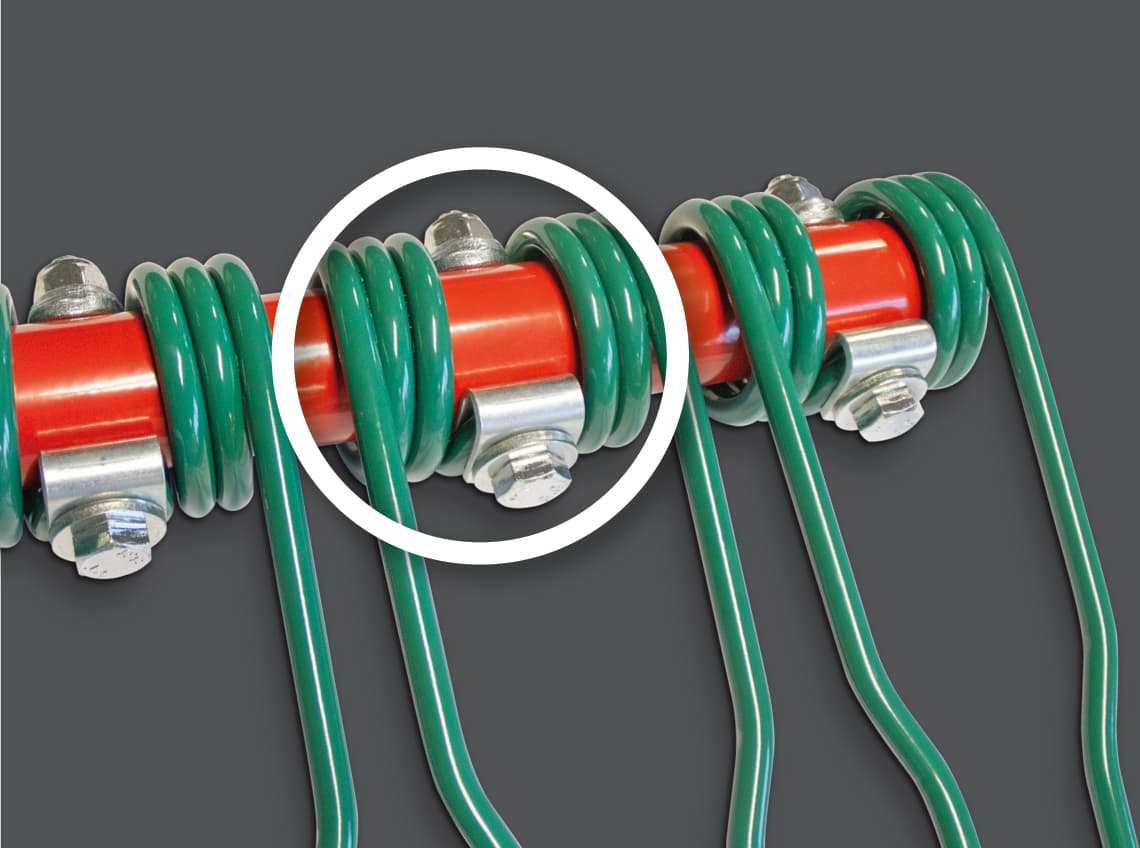

Tine fixing

Using the appropriate Fixing Kits, securely tightened at all times, will ensure the tines give maximum performance and keeps losses and downtime to a minimum.



Be prepared – save valuable time when it counts

Nothing is more frustrating that breaking down in the middle of a field – losing valuable time and productivity.

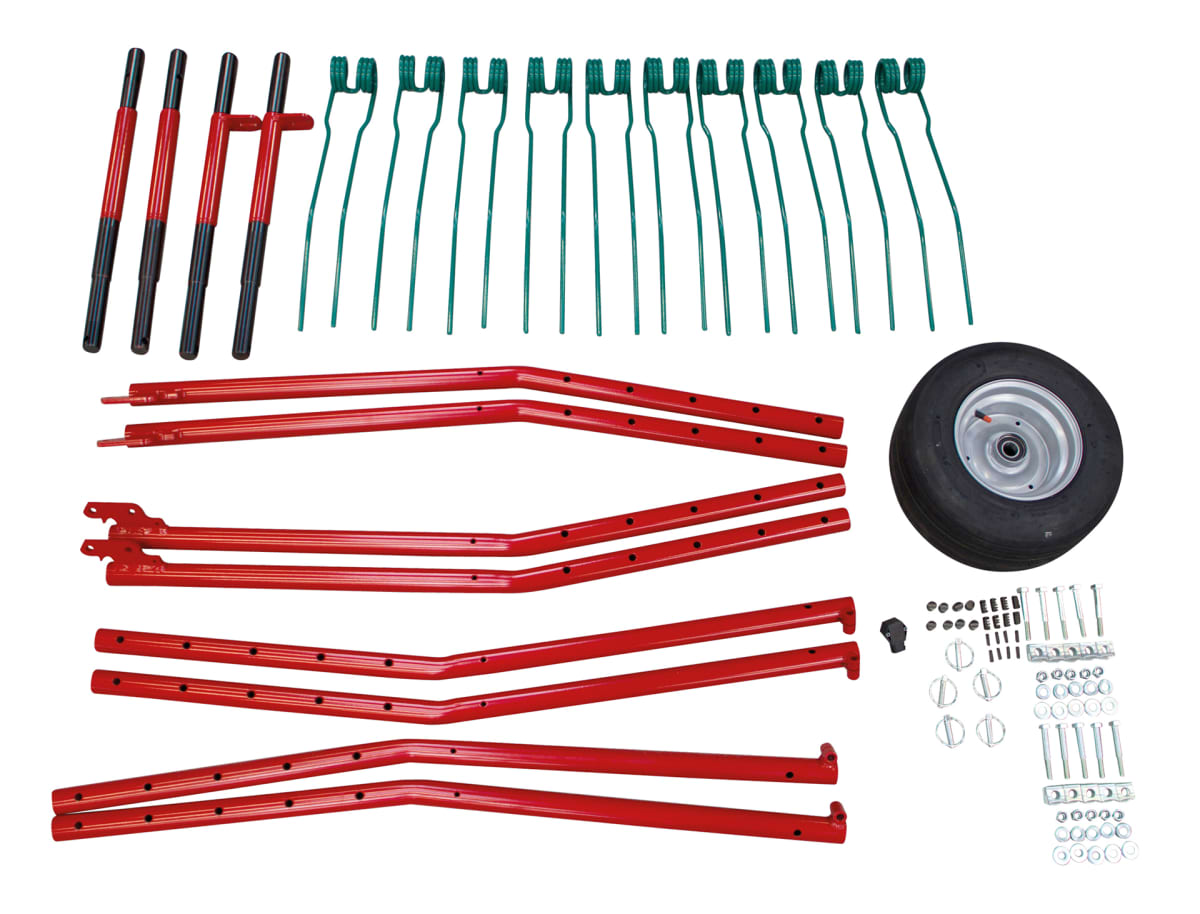

Keeping a Service Kit to hand, in the event of a breakdown, will ensure you are up and running in no time. The service kit contains sufficient fast wearing parts, ie tines, tine arms, tyres, tine fixing kit, tines savers etc that will get your machine back working in the event of a minor breakdown.
Ask your dealer to order a Service Kit for YOUR rake and give yourself peace of mind when in the field.

Available Service Kits

A131690732 94125 C
A131691132 95130 C
A145593932 95130 C PRO
A131691332 97150 C


Time is money, and we know the importance of receiving the right parts at the right time! Your Kverneland dealer is supported by a massive distribution network to supply you with exactly what you need, when you need it.

Our main distribution centre Metz warehouse is located in Thionville, France. A strategic location for distributing parts to all corners of the world. With over 70.000 parts in stock and 24/7 service, we are ready to supply you with parts – at any time!
