Plough - Get Ready For Next Season

Helpful tips and tricks to get your plough prepared to operate at it’s maximum capacity through the season.


Only Original Parts will keep your machine a Kverneland


Be prepared for the coming season - by giving your Kverneland Plough a Health Check and ensure that you have sufficient stocks of essential wearing parts. Keep down time to a minimum by contacting your local Kverneland dealer and take advantage of the Special Out of Season prices on Original Parts.

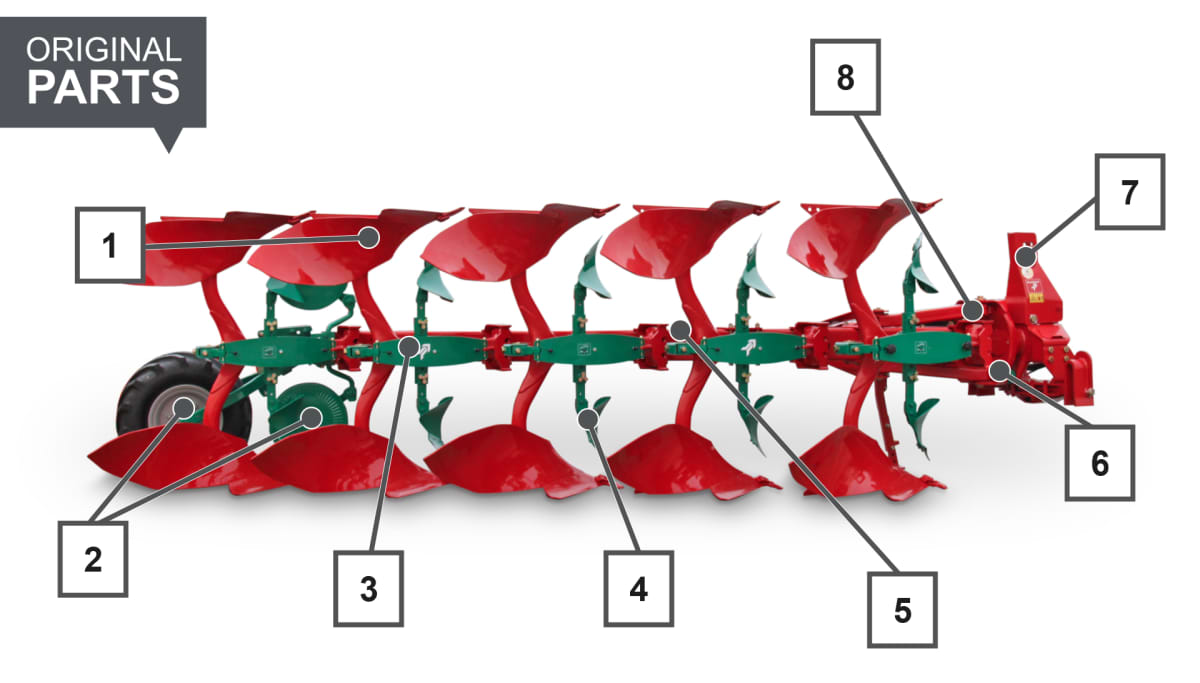

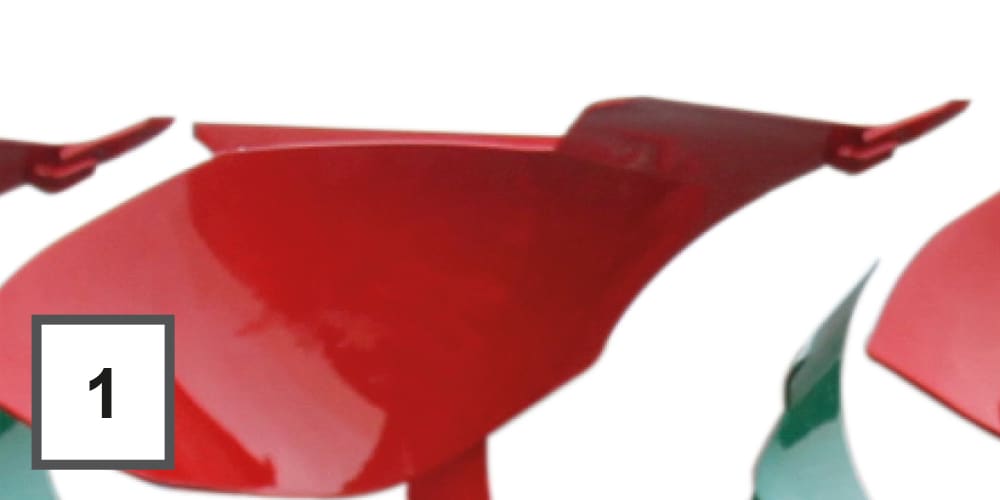

Check all wearing parts and renew if worn

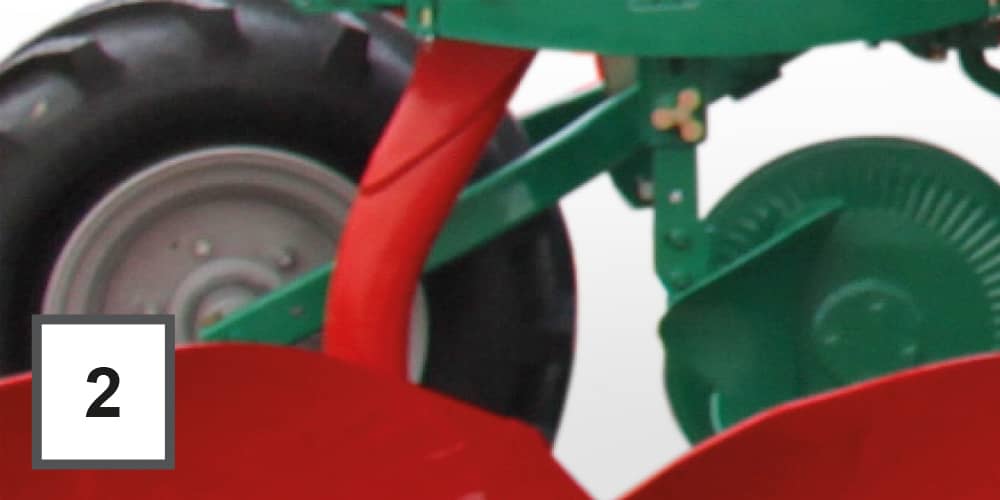

Grease all bearings and pivot shafts

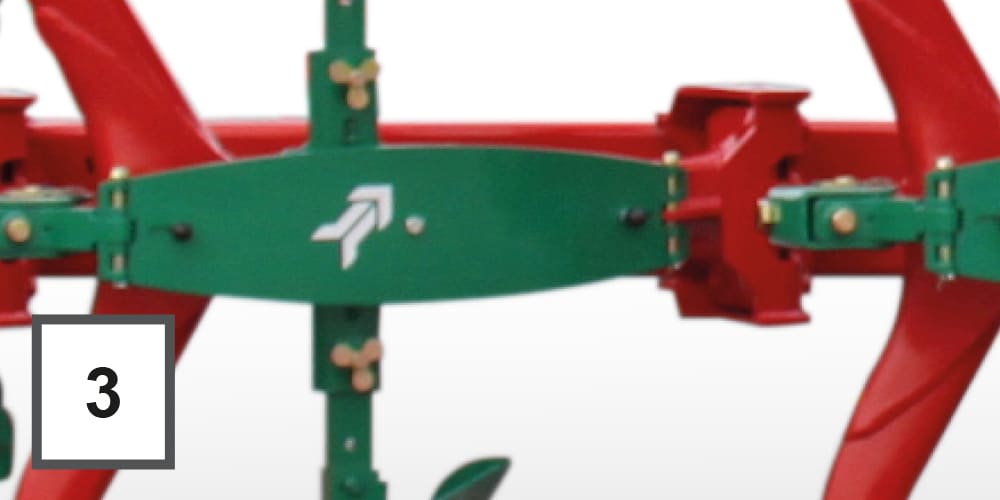

Ensure Auto Reset springs are correctly adjusted to 70cm

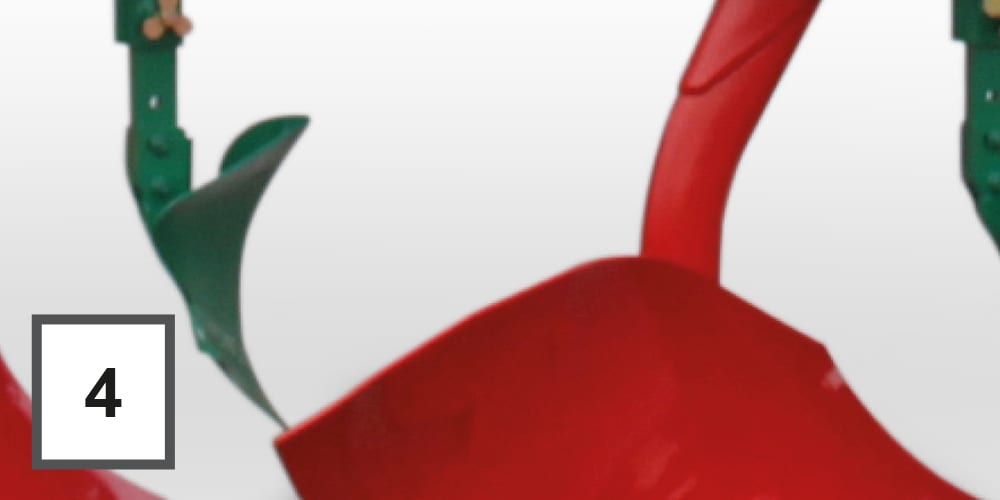

Ensure all skimmers are correctly set

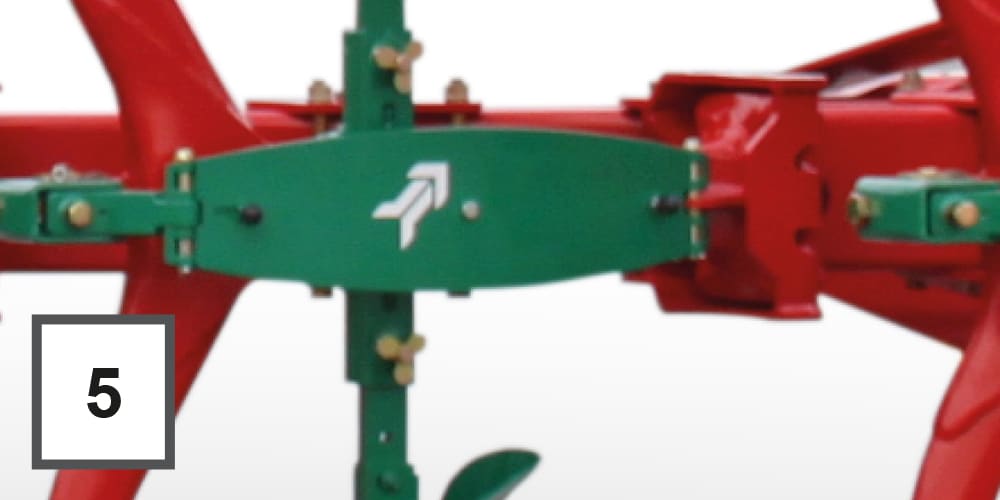

Check Vari width Bushes and cones – replace if worn

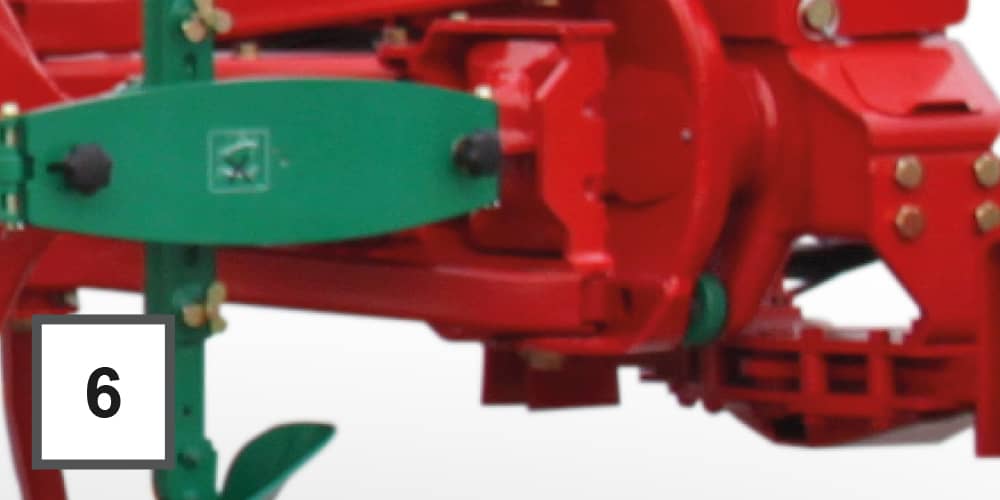

Check Hydraulic hoses and connections. Replace if necessary

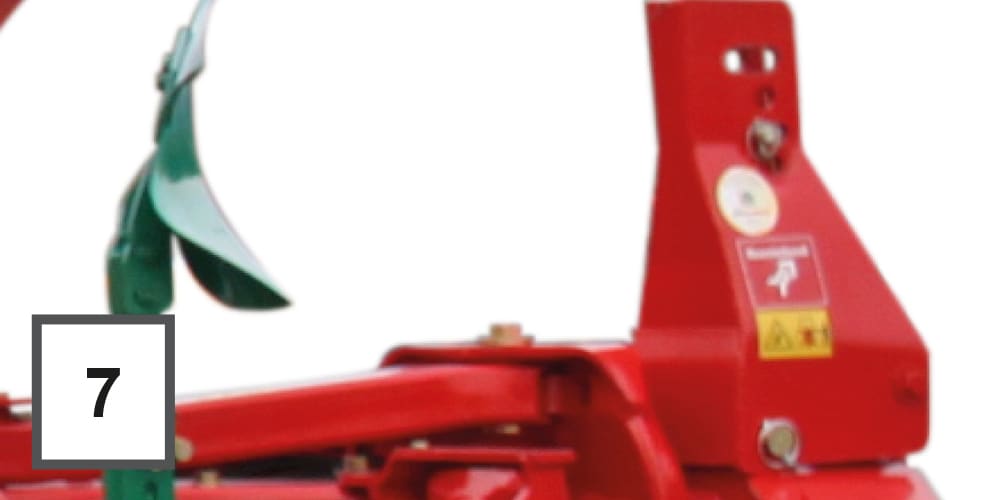

Check front linkage pins and renew if worn

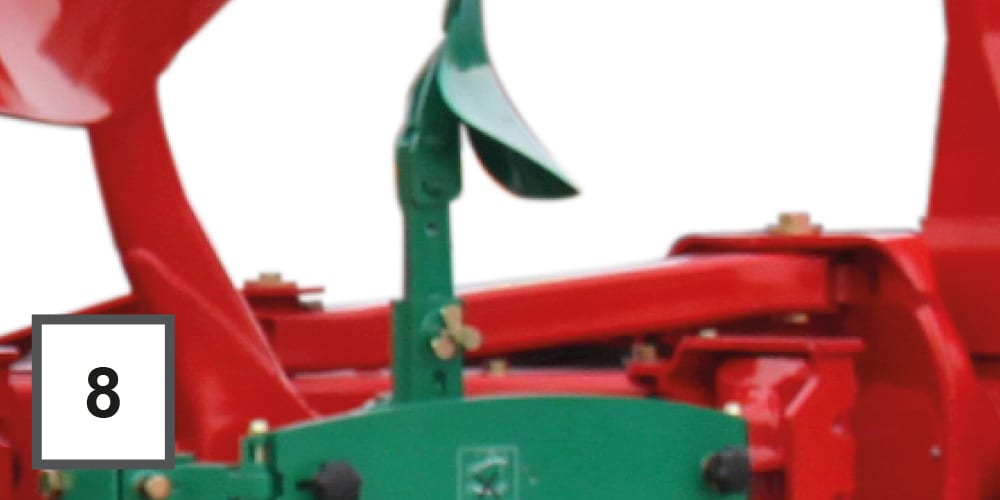

Ensure front slide rails are clean and greased


Mouldboard

Thanks to our unique heat treatment processes, our steel guarantees long lasting mouldboards with unique benefits to give you maximum value for money.

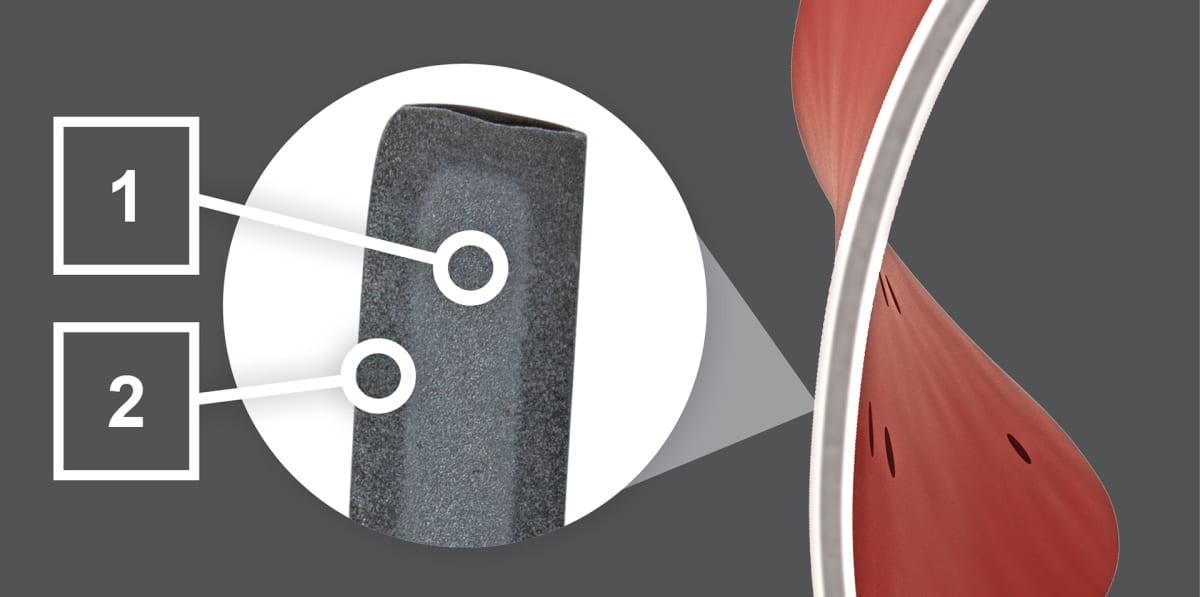

Cross section of a mouldboard
1. Soft and flexible core to avoid breakage.
2. Hard surface for less friction and longer lifetime.

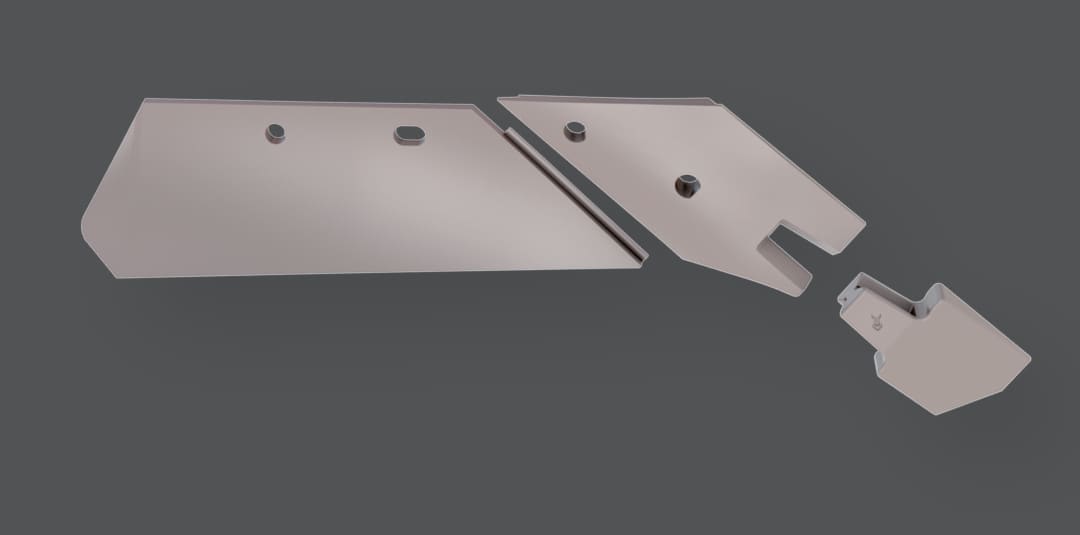

Point & share

All our points and shares are specially heat treated using Kverneland’s unique Zone Hardening method. Improving the quality of the steel and protecting the area around bolts holes are key factors to achieving top performance and long life time.

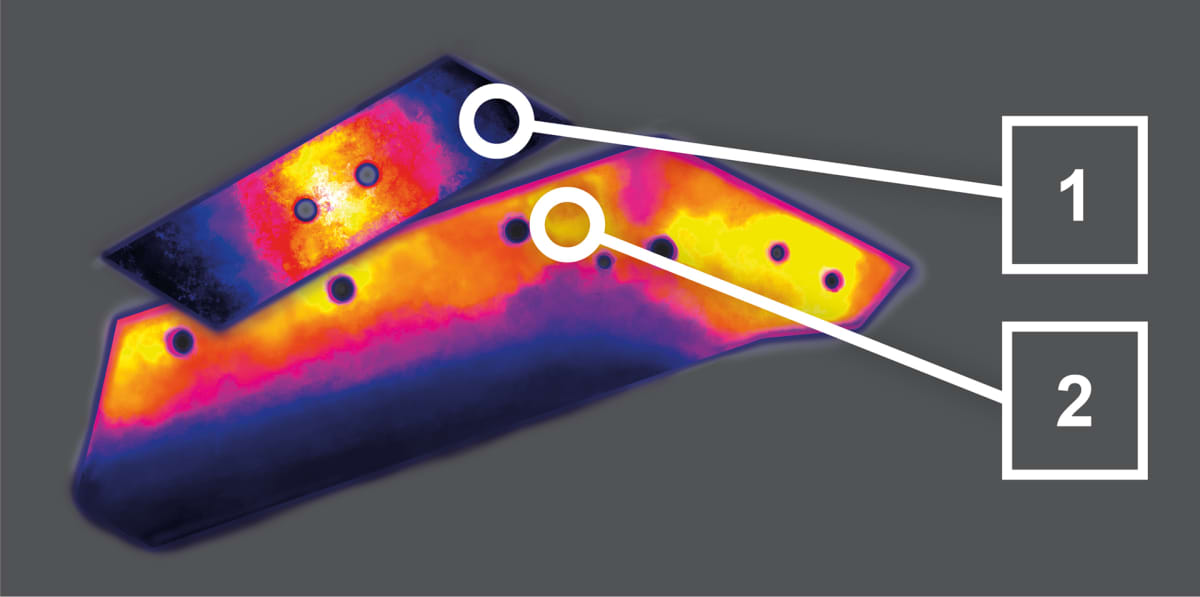

Infrared camera: heat treatment
1. Extremely hard wearing zones.
2. Area around bolt holes flexible to avoid breakages.

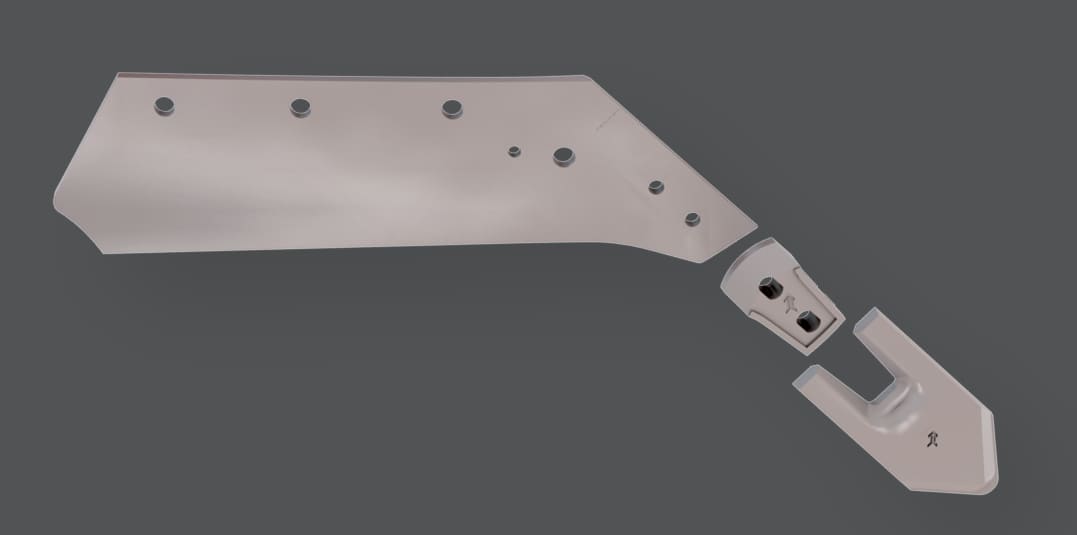

KNOCK-ON POINT

“Fast point changes with no bolts. Excellent soil penetration for dry soil.”

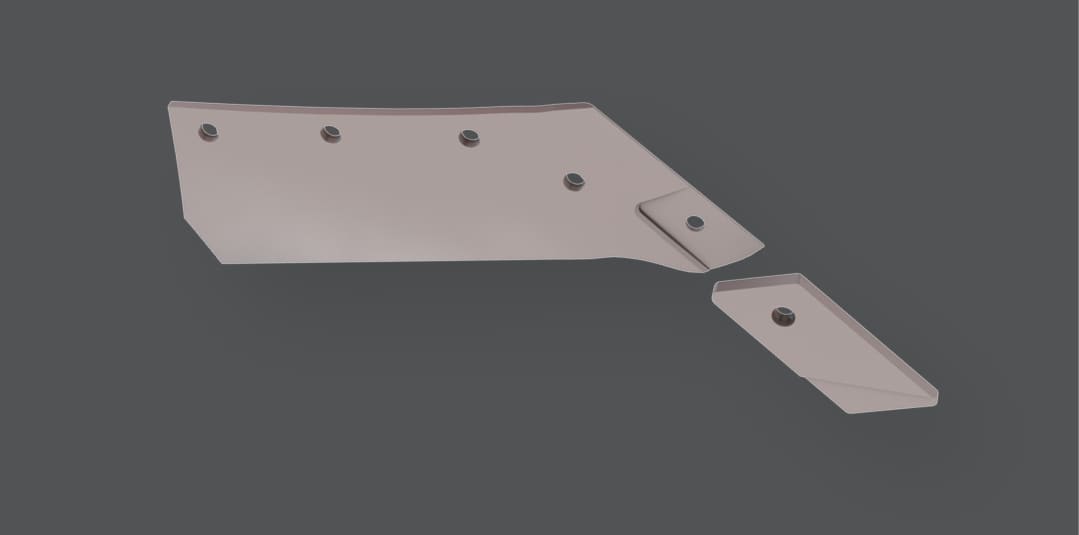

QUICK-FIT POINT

“Fast point changes with no bolts. Flushed system to minimise friction.”

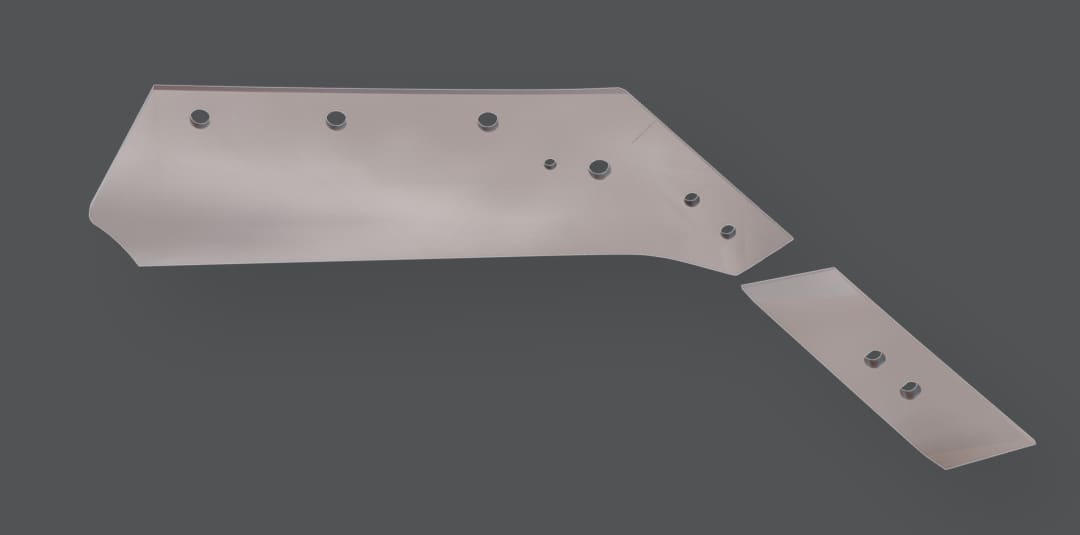

REVERSIBLE POINT

“The classic, suitable for all conditions. Heat treated for maximum lifetime.”

FLUSH POINT

“Flushed system to minimise friction. The perfect choice for sticky soil.”

AUTO RESET

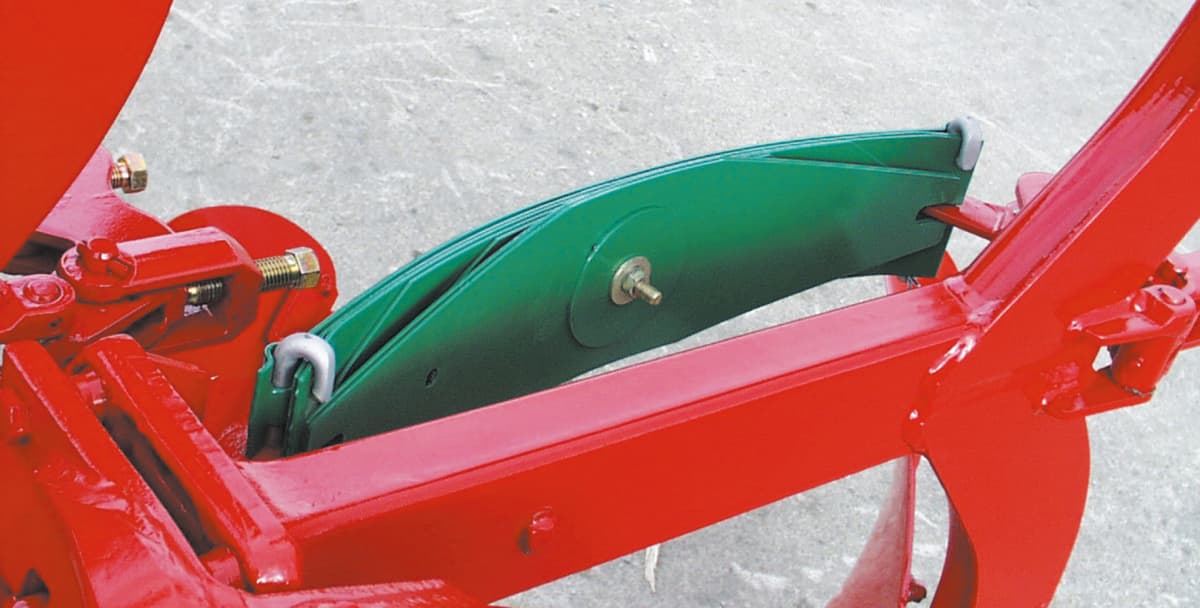

For ploughs fitted with Kverneland’s unique Auto Reset system, we recommend that you loosen all the leaf springs before winter storage. Releasing the spring tension when not in use will increase lifetime of the springs.

At the beginning of the season remember to adjust and tighten the leaf springs to a distance of 70 cm between the pins. It is also important to lubricate the grease nipple of each beam to maintain the correct plough leg release.

LEAF SPRING KITS

The standard Auto-Reset system includes 7 Kverneland heat treated leaf springs. For heavier to extreme soil conditions, extra leaf springs may be added to withstand higher resistance before releasing the plough legs.

STANDARD SPRING KIT

640 kg release force
KK060709

HD KIT

900 kg release force
KK060703

EXTRA HD SPRING KIT

1100 kg release force
KK060703 (1x)
KK057068 (2x)

TANDEM SPRING KIT

1400 kg release force
KK060703 (1x)
KK060714 (1x)
