AutosetApp – Always the Most Up to Date Settings Available for Your Spreader

The AutosetApp is a software application which was only available on the IsoMatch Tellus universal terminal. From now on this App will also be available on the IsoMatch Tellus GO. The AutosetApp connects the terminal directly with the Kverneland weigh cell spreader and will automatically adjust the spreader according to the settings entered into the App.

AutosetApp – Always the Most Up to Date Settings Available for Your Spreader

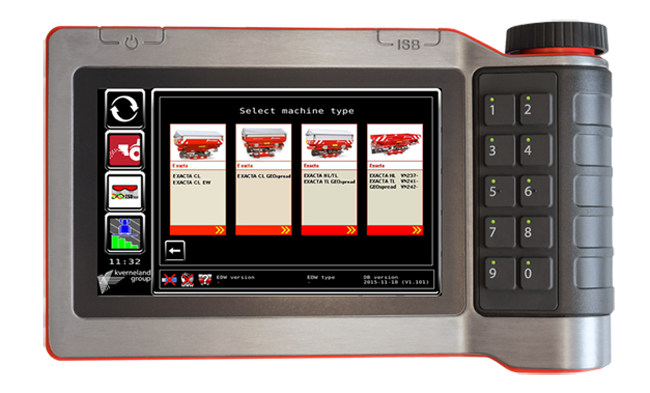

TellusGO_Spreader_App8_F650

Enter the Data into the App and You’re Ready for Spreading

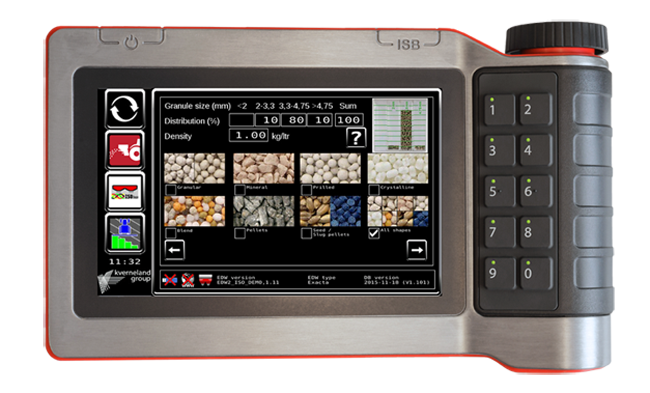

The first steps are to enter the working width, application rate (kg/ha) and driving speed (km/ha) into the AutosetApp. The next step is to enter the distribution size (%) and density of the fertiliser, and finally the selection of the shape and product type, such as prilled or granular fertiliser. Once all the data is entered you get the setting advice for the product! After pressing the “Send button”, the working width, application rate, initial driving speed, starting point for dosing and the discharge point will be forwarded to the GEOSPREAD spreader and it will automatically adjust the spreader according to the setting advice you entered in the AutosetApp.

Now you are ready to go spreading in the field! The AutosetApp will also work in combination with the Exacta CL-EW and TL weighing spreaders, with the exception being for those spreaders the discharge point (letter setting) still needs to be adjusted manually on the spreader itself.

TellusGO_Spreader_App6_650

Always the Most Up to Date Spreading Charts Available
The Kverneland fertiliser spreader database with the most up to date spreading charts is always available online. The AutosetApp can be connected to the fertiliser spreader database in two different ways. As soon as there is a WIFI network available (or you can create a WIFI hotspot with your smartphone) you can get connected to the online database via the IsoMatch Wireless WIFI USB adapter.

The AutosetApp checks automatically if there is an actual database available to download. The second solution is to download the actual spreading charts database from the internet website www.kvernelandspreadingcharts.com on an USB stick and upload the database directly into the IsoMatch Tellus or Tellus GO terminal.

With the AutosetApp it is possible to adjust automatically the application rate and discharge point of the GEOSPREAD spreader. This is based on a wireless internet connection to the online spreading charts database with always the most up to date test results from the Spreader Competence Centre in Nieuw-Vennep (The Netherlands). Also the GEOPOINT will be set automatically when using the AutosetApp.

The spreader will automatically start and stop when the GEOPOINT is at the edge of the headland. This will prevent over- and underdosing around the headlands.

So stay comfortable in your tractor cabin and set your GEOSPREAD spreader automatically with the AutosetApp!

6. March 2017
