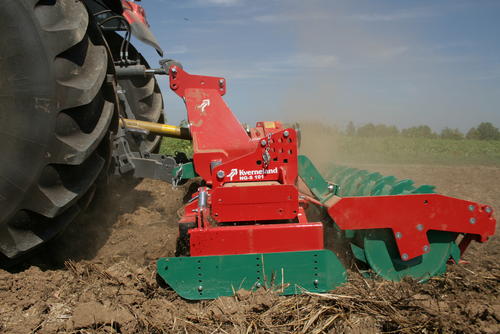

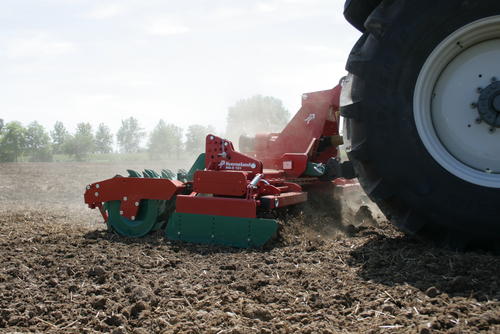

Kverneland NG-S 101

The Kverneland NG-S 101 is a heavy-duty power harrow for all kinds of operations in all types of soil conditions. Robustly designed for use on tractors up to 250hp, with the Kverneland heavy-duty trough design and Quick-Fit tines this power harrow is the right alternative for large farms and farm contractors.

The Kverneland Power Harrows are designed for heavy conditions. Special emphasis has been given to reliability and a strong trough design. This has been achieved by having a large distance between the conical bearings, hardened gears in the trough and a heavy-duty rigid trough design.

The Advantages:

  • Robust, self-supporting trough design providing the necessary strength for trouble-free operation.
  • Tine shaft of 60mm with two large conical bearings with a wide distance providing rigidity and a long service life.
  • Robust and reliable headstock for easy connection to all tractors and the attachment of heavy seed drill combinations.
  • Ample clearance of 125mm between the trough bottom and the tine holder ensure good soil flow and allow residues to pass easily through the machine
  • Tine dimension: 18 x 330mm.

Technical Specifications

Model Working width (m) No. of rotors Weight with packer roller (kg)
NG-S 301 3.0 12 1940
NG-S 351 3.5 14 2164
NG-S 401 4.0 16 2417
NG-S 451 4.5 18 2670
KV_ng-s 101_0005.jpg
Video
Animation
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101
Kverneland NG-S 101


Heavy-duty trough design

For optimum performance in difficult soil conditions, the robust trough design provides a large clearance between the tine holder and trough bottom. This allows large amounts of residues and stones to pass freely without blocking and provides excellent results in mulch conditions.

NG-M 101: A 5mm profiled plate together with a 5mm top plate form the 120 x 400mm trough. In combination with a 10mm reinforcement plate, precise positioning of the rotors gives a light but strong bending resistant trough.

H series: Two profiled 6mm plates ensuring precise rotor spacing, high bending resistance in the 140 x 400mm trough.

NG-S 101: Two 10mm profiled plates forming the 150 x 400mm  trough. The fully welded rotor housings add additional strength and bending resistance to the trough.

KV_ng-m 101_0001.jpg

"Pro-fit" active tines

  • The “Pro-Fit” Active tines ensure optimum penetration in hard soil.
  • The tine, due to its shape, pulls itself into the ground. This gives a constant working depth and also prevents the machine from lifting out of the ground in hard dry soil conditions.
  • It creates additional recompaction at the packer roller.
  • The “Pro-fit” active tine lifts the material and pushes it in front of the power harrow. This gives an optimum levelling effect even in tractor tracks.
  • In mulch conditions the active tines can work directly into stubble and hard soil.
  • The special shape of the tines keeps residues on the surface and this gives a big advantage against erosion.

Helical tine positioning in order to prevent damage caused by stones and to ensure even levelling. This reduces also peak loads on the driveline and results in smoother running and less fuel consumption.

KV_ng-h 101_0007.jpg

Kverneland quick-fit or optional carbide tines

The quick-fit tines for easy replacement and carbide tines for a longer lifetime and minimum wearing are available as an option.

  • Kverneland Quick-fit tines are simply fixed to the tine holder by a pin and a clip. All tines can be quickly replaced without any tools
  • Down time can be minimised by optional carbide layered Quick-Fit tines. These tines ensure a long lifetime and minimum wearing even in tough and abrasive soils.
KV_ng-h 101_0006.jpg

Kverneland Packer Rollers

The Kverneland range of rollers offers the right choice for all various soil conditions and crop establishment systems.

  • Tooth Packer Roller
    For NG-M 101/NG-S101: dia. 500 + 585mm
    For H series: dia. 575mm
    suitable for medium to heavy soil, most versatile roller - especially as part of heavy power harrow/seed drill combination
  • Flexline Roller dia. 585mm: light to medium-heavy soils - especially under varying soil conditions, smooth roller surface - no blocking when used in mulch conditions
  • Cracker Roller dia. 550mm: medium to the heaviest soil, real stripe-wise reconsolidation (12.5cm) in front of seed coulters - only 50% of the soil surface is rolled
  • Cage Roller dia. 550mm: light to medium soil and dry working conditions, basic variant: mainly for depth control of the power harrow
  • Actipack Roller dia. 560mm: medium to heavy soil, scraper between the discs, optional knives for intensive crumbling effect
KV_ng-m 101_0002.jpg
Flexline Roller, 585mm diameter
Flexline Roller, 585mm diameter
Flexline Roller, 585mm diameter
Cracker Roller, 550mm diameter
Cracker Roller, 550mm diameter
Cracker Roller, 550mm diameter
Cage Roller, 450 + 550mm diameter
Cage Roller, 450 + 550mm diameter
Cage Roller, 450 + 550mm diameter
Actipack Roller, 560mm diameter
Actipack Roller, 560mm diameter
Actipack Roller, 560mm diameter

Euro-Connection

Flexibility is key!

The coulterbar can be easily coupled and uncoupled with a coupling hook similar to the front loader coupling. Track markers are attached to the power harrow. Therefore, the power harrow is ready for solo operation within short time. The coulterbar is attached with the Euro-Connection directly to the roller frame and can quickly and easily be hitched thanks to the readily accessible hydraulic and electronic interface.

The e-drill is exclusively designed to be combined with Kverneland power harrows (H-series and NGS).

e-drill power harrow solo copy
Euro-Connection
Euro-Connection
