For easy and efficient ploughing.

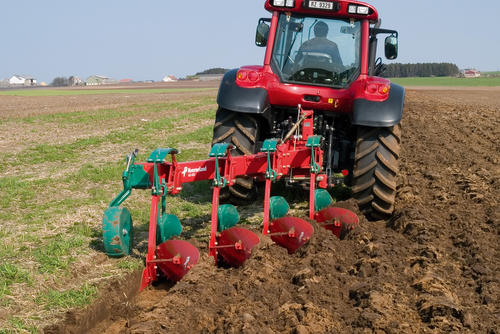

Conventional mounted ploughs equipped with stepless furrow width adjustment, manual or hydraulic. Increase your capacity by 30 % while saving 20% fuel!
Under difficult conditions one or more bodies can be locked in a parked position.
The plough can grow with the size of your tractor by adding 1 extra furrow.
Mechanical front furrow width adjustment is standard. However, a hydraulic cylinder is recommended for ploughing on side slopes to control the front furrow width "on the move".
The advantages:
- Kverneland steel and heat treatment technology for the complete plough
- robust and reliable construction
- auto-reset system for non stop ploughing
- equipped with the Variomat/Vari-width® system, 30-50cm (12”-20”)
- furrow width adjustment is mechanic for AB and hydraulic for AD from tractor seat
- easy to operate
- extendable by one furrow, 2 to max.5 furrow ploughs
| Model (Auto-reset) | ||||
| Type | Interbody clearance cm | Under beam clearance cm | No of furrows | Furrow width cm |
| AB | 85 | 70/80 | 2 - 4 | 30 - 50 |
| AB | 100 | 70/80 | 2 - 4 | 30 - 55 |
| AD | 85 | 70/80 | 3 - 5 | 30 - 50 |
| AD | 100 | 70/80 | 3 - 5 | 30 - 55 |
