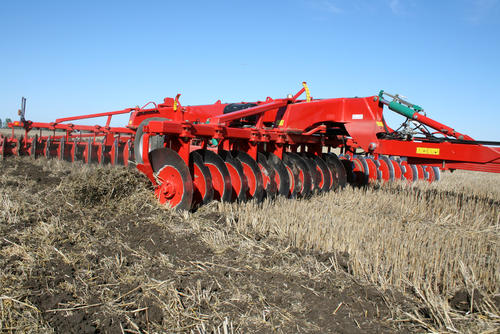

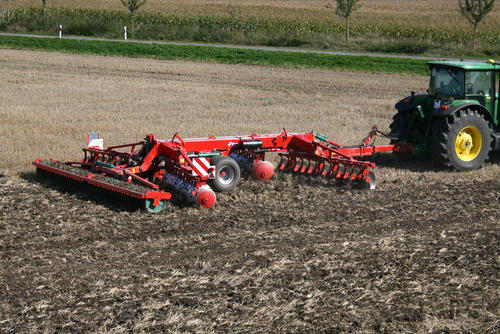

Disc Harrows » Kverneland Visio 200

A heavy-duty disc harrow  for optimum performance, durability and minimum operating cost

The Visio 200 disc harrow is constructed around a central robust 200x300x10 mono frame which ensures machine stability and operator visibility. The special arrangement of the offset disc gangs guarantees perfect results over the full working width. However, the transport width is under 2.50m and in accordance with road traffic regulations.

The discs are especially treated to make them very hard and wear resistant. In addition the solid taper roller bearings ensure trouble free work for years. For effective work in very hard and stony condition a special Non-Stop shock absorber system is available as an option.

The Advantages:

  • Strong single beam up to 330 hp
  • Wide range of rear rollers
  • Early emergence of volunteer cereal and weed seeds
  • Stubble mixing from 5 cm to 20 cm deep
  • Interruption of capillaries and promotion of straw decomposition
  • Low fuel consumption thanks to optimum adjustment options
Model Disc spacing (mm) Working width (m) Weight (kg) Power requirement HP (min/max)
Visio 200 200 3.8 - 6.2 4116 - 5381 90 - 330
Visio 235 235 3.6 - 6.3 3750 - 5170 90 - 330
Visio 275 275 4.1 - 6.3 3955 - 4920 130 - 330

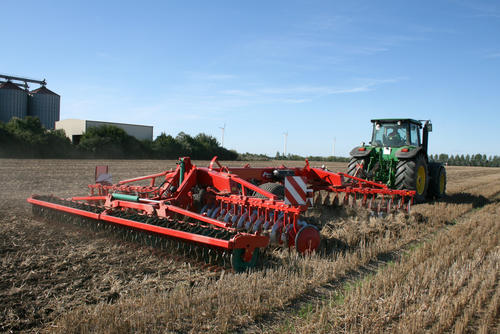

KV_visio 200_0016.jpg
