CLC pro classic - A „pro“ for Smaller Tractors
The CLC pro Classic is a 3-bar cultivator for smaller tractors (from 90hp). Based on the CLC pro the Classic variant is equipped with an easy and compact module for rear accessories. Available as rigid from 3 to 3.5m and 4.0m as folding version. To make the CLC pro Classic very compact and to reduce the weight as much as possible, the parallelogram carries two curved arms that reduce the overhang of the machine. A section of levelling tines is directly connected to the
roller frame. Lighter than discs, the tines ensure an excellent levelling result in all conditions. The working depth and aggressiveness of the levelling tines is infinitely adjustable.Therefore the CLC pro Classic is 50cm shorter than the CLC pro; this shifts the centre of gravity closer to the tractor. The aim of developing a „pro“ for smaller tractors is thus achieved.

The Advantages:

  • High Horse power capacity to cope with all conditions and tractor sizes from 90 to 350 hp
  • Universal Cultivator from  3.0 to 4.9 m, working 5 to 30cm deep
  • 3 bar frame for optimum mixing and blockage free operation
  • Unique leg design vibrating for intensive effect in the soil but low fuel consumption
  • Wide choice of shares, rear rollers and levelling equipment
  • Intensive mixing of the residues
  • Seedbed finish possible
Model Working width (m) No. of tines Average tine spacing (mm) Min./Max. HP
CLC pro 300  Classic 3.0 10 280 120 / 240
CLC pro 350  Classic 3.5 12 280 135 / 270
CLC pro 400F Classic 4.0 13 290 185 / 300

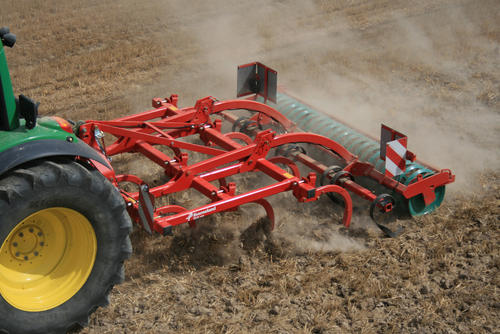

KV_clc proclassic_0009.jpg
