Seed Drills » Kverneland Accord m-drill, m-drill PRO

The mechanical seeding solution

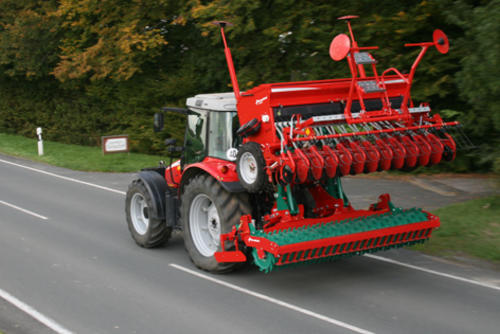

The m-drill and m-drill PRO mechanical drills can be used directly mounted to the tractor for solo operation or to a power harrow as well as to a cultivator via a 3 point linkage. The m-drill is particularly suitable for small to medium sized farms, whereas the m-drill PRO meets the special requirements of larger farmers and contractors. The metering system can deliver seed quantities between 1- 400kg. Metering wheels for normal and fine seeds are standard. The special design of the metering wheels results in high quality seed distribution. The metering wheels are water and dust protected by the calibration trays. Easy and safe access to the whole calibration system is ensured by loading steps.

The Advantages:

  • Reliability – In addition to the Kverneland Suffolk coulter the patented and well tried and tested CX coulter for seeding in ploughed or cultivated soil is also available.
  • Versatility – Seed quantities of 1–400 kg/ha are possible with the change from normal to fine seed settings – without the need of any tools.
  • Flexibility – The m-drill can be used independently or in combination with a rotary harrow or tined cultivator.
  • Performance – Hopper extensions can increase the capacity to 1430 litres.
  Working Width
(m)
Hopper Capacity
(litres)
Weight
(kg)
m-drill 2.5 / 3.0 425 - 530
(+ 500)
564 - 620
m-drill PRO 3.0 / 4.0 530 - 740
(+500 or 690)
607 - 870
